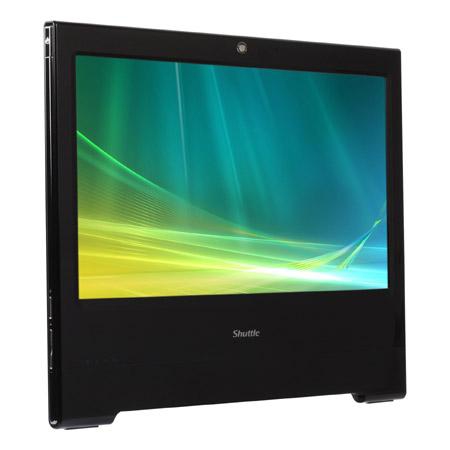

X 5020TA

Model X 5020TAPart no. X-5020TA-BEAN 4046047102068

103 specifications

Overview

Brand: Shuttle
Category: All-in-One PCs/Workstations
Model: X 5020TA
Part numbers: X-5020TA-B, X-5020TA-W
EAN / UPC: 4046047102068
Also known as: Shuttle XPC X 5020TA Intel Atom® D510 39.6 cm (15.6") 1366 x 768 pixels Touchscreen 2 GB DDR2-SDRAM 250 GB Intel® GMA 3150 Windows 7 Home Premium Black

103 specifications in 16 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D510
Processor cores	2
Processor threads	4
Processor frequency	1.66 GHz
Processor cache	1 MB
Processor cache type	L2
Processor socket	BGA 559
Thermal Design Power (TDP)	13 W
Bus type	DMI
FSB Parity	No
Number of Processing Die Transistors	176 M
Processing Die size	87 mm²
Processor code	SLBLA
Processor codename	Pineview
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Atom D500 Series
Stepping	B0
Tjunction	100 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	4 GB
Memory types supported by processor	DDR2 667/800
Memory bandwidth supported by processor (max)	6.4 GB/s
Memory channels supported by processor	Single
ECC supported by processor	No

Specification	Value
Internal memory	2 GB
Internal memory type	DDR2-SDRAM

Specification	Value
Discrete graphics card model	Intel® GMA 3150
On-board graphics card	Yes

Specification	Value
Built-in camera	Yes

Specification	Value
Wi-Fi	Yes
Ethernet LAN	Yes

Specification	Value
Product colour	Black

Specification	Value
Motherboard chipset	Intel® NM10 Express

Specification	Value
Operating system installed	Windows 7 Home Premium

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	32 bit
Processor ARK ID	43098
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	No

Specification	Value
AC adapter frequency	50 - 60 Hz

Specification	Value
Remote control included	No

Specification	Value
Chassis type	All-in-One
Display included	Yes
Floppy drive installed	No
Maximum graphics card memory	256 MB
Modem type	JMicron JMC261
Parallel ports quantity	1
Power requirements	100 - 240V AC
TV tuner integrated	No
Power availability	40 W
