POS X505

Model POS X505Part no. POS X505 (WHITE)EAN 4046047103072

161 specifications

Overview

Brand: Shuttle
Category: All-in-One PCs/Workstations
Model: POS X505
Part numbers: POS X505 (WHITE), POS X505 (BLACK)
EAN / UPC: 4046047103072, 4046047103089
Also known as: Shuttle XPC POS X505 Intel® Celeron® 3855U 39.6 cm (15.6") 1366 x 768 pixels Touchscreen All-in-One PC 4 GB DDR3L-SDRAM 60 GB SSD Wi-Fi 4 (802.11n) White

161 specifications in 20 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	3855U
Processor cores	2
Processor threads	2
Processor frequency	1.6 GHz
Processor cache	2 MB
Processor cache type	Smart Cache
Processor socket	BGA 1356
64-bit computing	Yes
Thermal Design Power (TDP)	15 W
Configurable TDP-down	10 W
Bus type	OPI
Maximum number of PCI Express lanes	10
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version	2.0
Processor code	SR2EV
Processor codename	Skylake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Celeron Processor 3000 series for Mobile
Stepping	D1
Tjunction	100 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR4-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor	1600,1866,2133 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Specification	Value
Total storage capacity	60 GB
Storage media	SSD
Number of storage drives installed	1
Number of storage drives supported	1
Number of HDDs installed	0
Number of SSDs installed	1
SSD capacity	60 GB
SSD interface	SATA III
Optical drive type	No

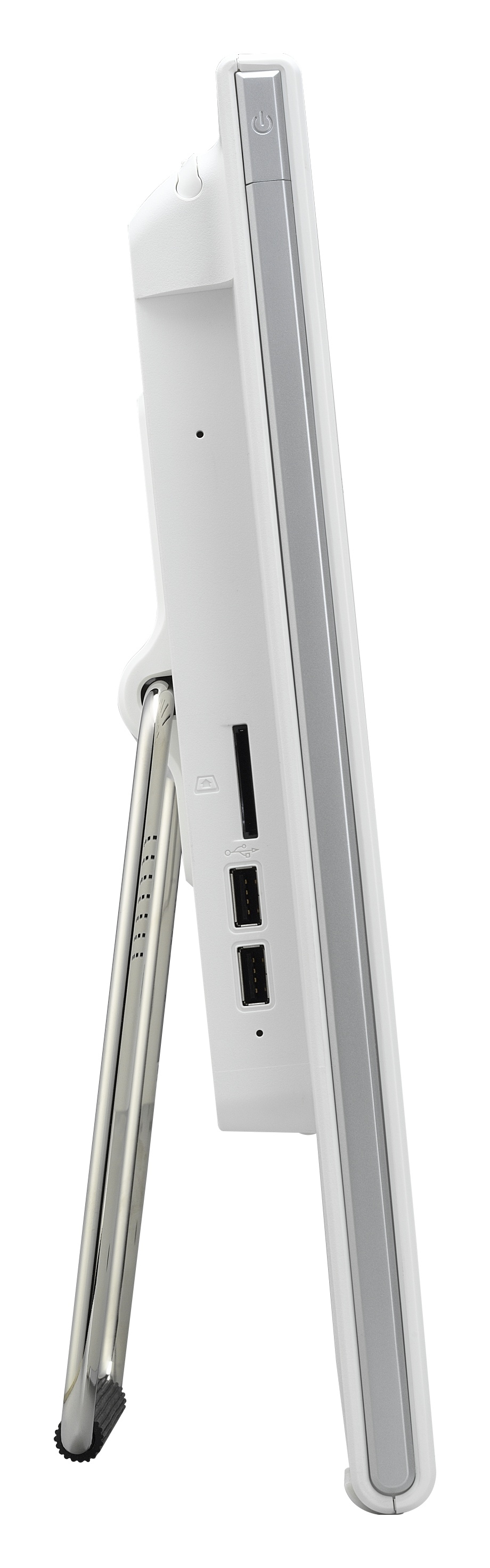

Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 510
Maximum on-board graphics card memory	32 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	900 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x1906
On-board graphics card OpenGL version	4.4

Specification	Value
Built-in speaker(s)	Yes
Audio system	HD

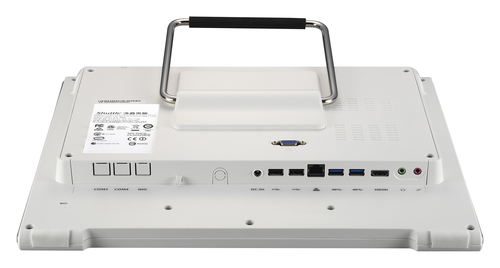

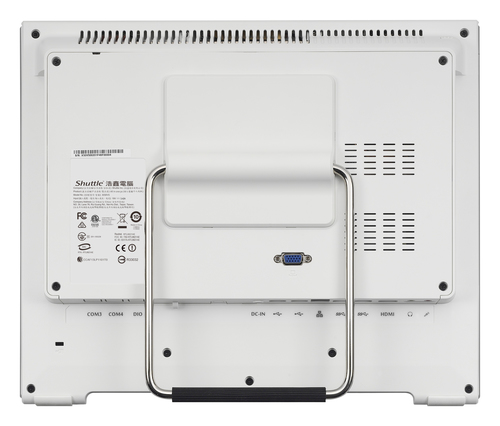

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Thunderbolt ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
Serial ports quantity	2

Specification	Value
Product type	All-in-One PC

Specification	Value
Operating system installed	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel HD Graphics	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	0.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Built-in Visuals Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	No
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Cache	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	92211
Processor package size	42 x 24 mm
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
