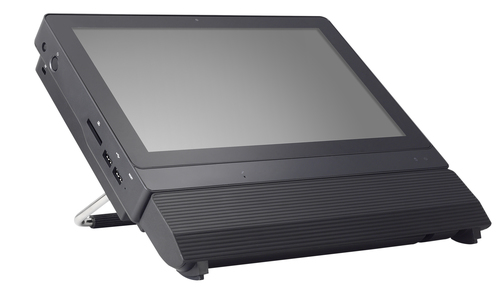

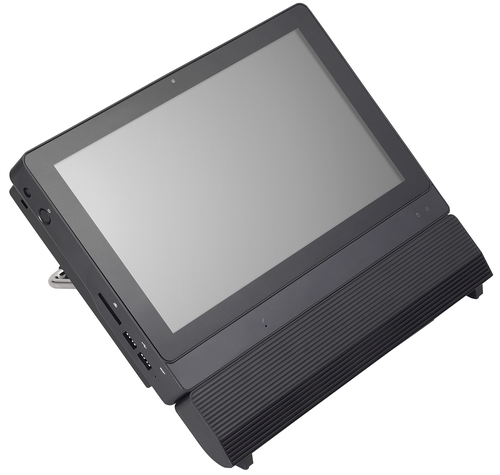

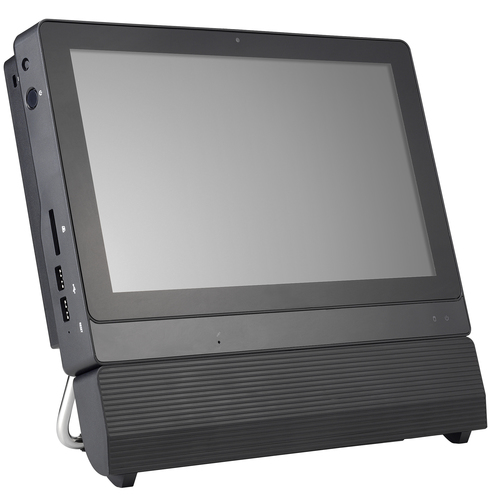

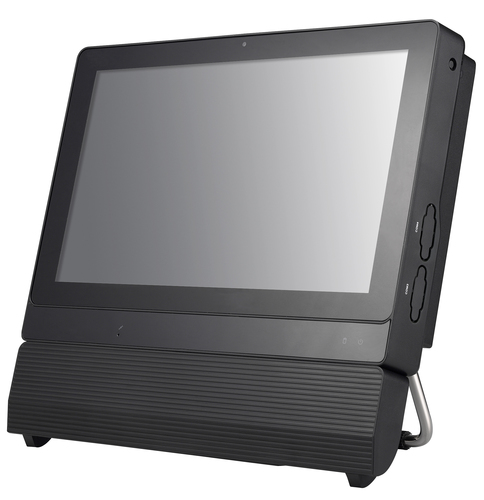

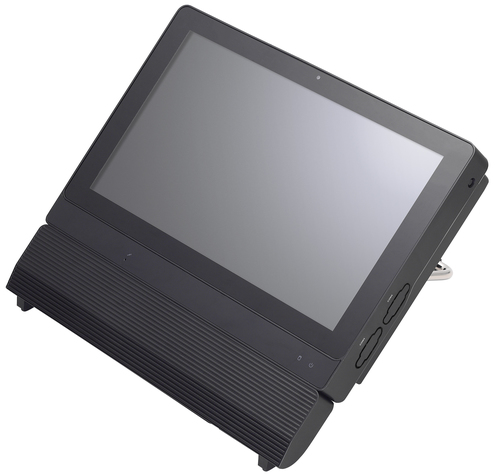

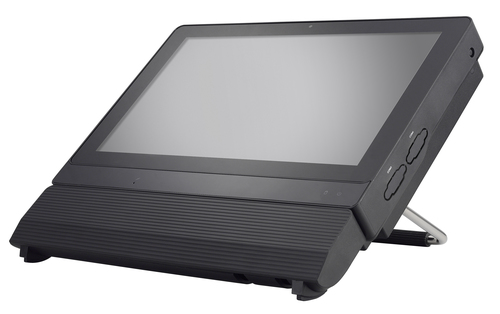

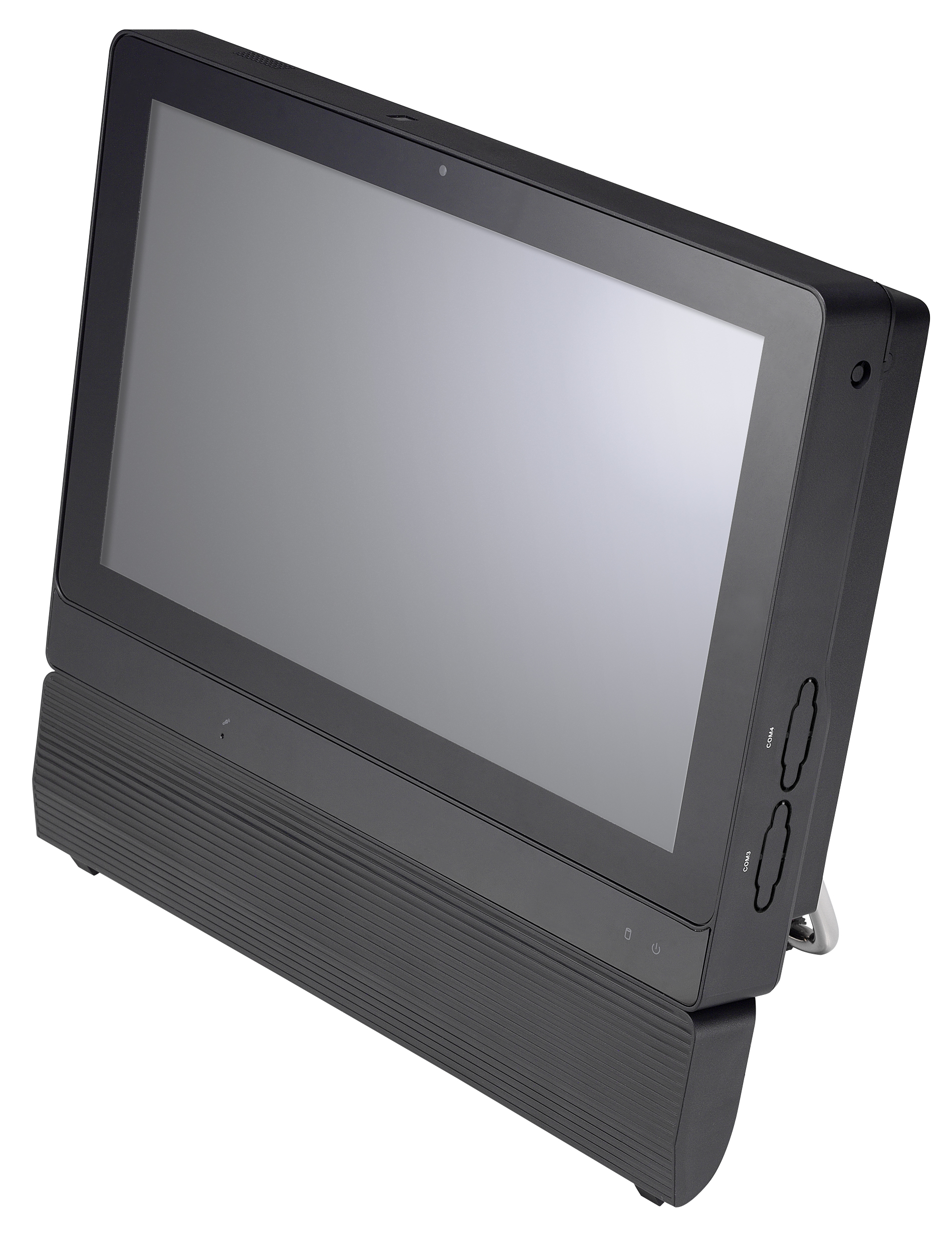

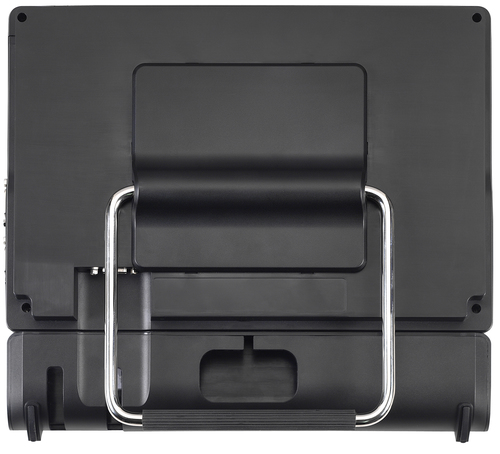

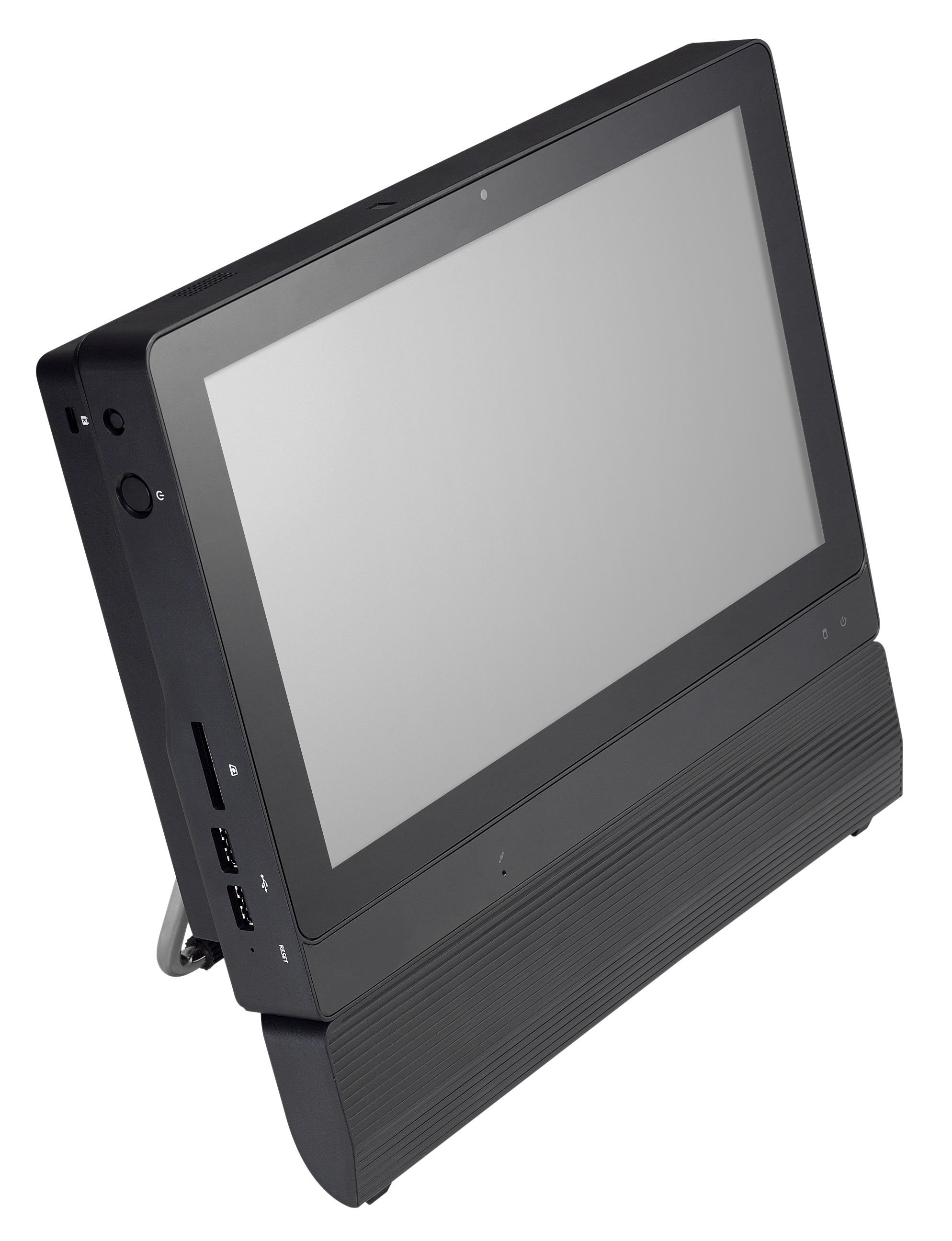

P20U Intel® Celeron® 3865U

29.5 cm (11.6") 1366 x 768 pixels Touchscreen PC barebone Black

Model P20UPart no. PAB-P20U011EAN 887993001470

95 specifications

Overview

Brand: Shuttle
Category: All-in-One PCs/Workstations
Model: P20U
Part number: PAB-P20U011
EAN / UPC: 887993001470, 887993001487, 887993002132, 887993003122
Also known as: Shuttle P20U Intel® Celeron® 3865U 29.5 cm (11.6") 1366 x 768 pixels Touchscreen PC barebone Black

95 specifications in 19 groups

Specification	Value
Maximum internal memory	32 GB
Memory slots type	SO-DIMM
Supported memory clock speeds	2133 MHz

Specification	Value
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Specification	Value
On-board graphics card	Yes
On-board graphics card model	Intel® HD Graphics 610

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	1
HDMI version	1.4
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
Serial ports quantity	2

Specification	Value
Product type	PC barebone
Market positioning	Business

Specification	Value
Operating system installed	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Secure Key Technology version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	No
Thermal Monitoring Technologies	Yes

Specification	Value
AC adapter output voltage	19 V

Specification	Value
Package weight	3.39 kg

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%

Specification	Value
Certification	CE, FCC, FAC, BSMI, RCM, VCCI & TELEC, RED, RoHS

Specification	Value
Sustainability certificates	ENERGY STAR

Specification	Value
Harmonized System (HS) code	84713000

Specification	Value
Graphics card family	Intel
AC adapter output current	3.42 A
Chassis type	All-in-One
Compatible operating systems	Windows 10 (64-bit) Linux
Power supply	65 W
Power supply type	External AC adapter
Safety	CB, EAC & FSS, BSMI, ETL
Storage drive interface	Serial ATA III
