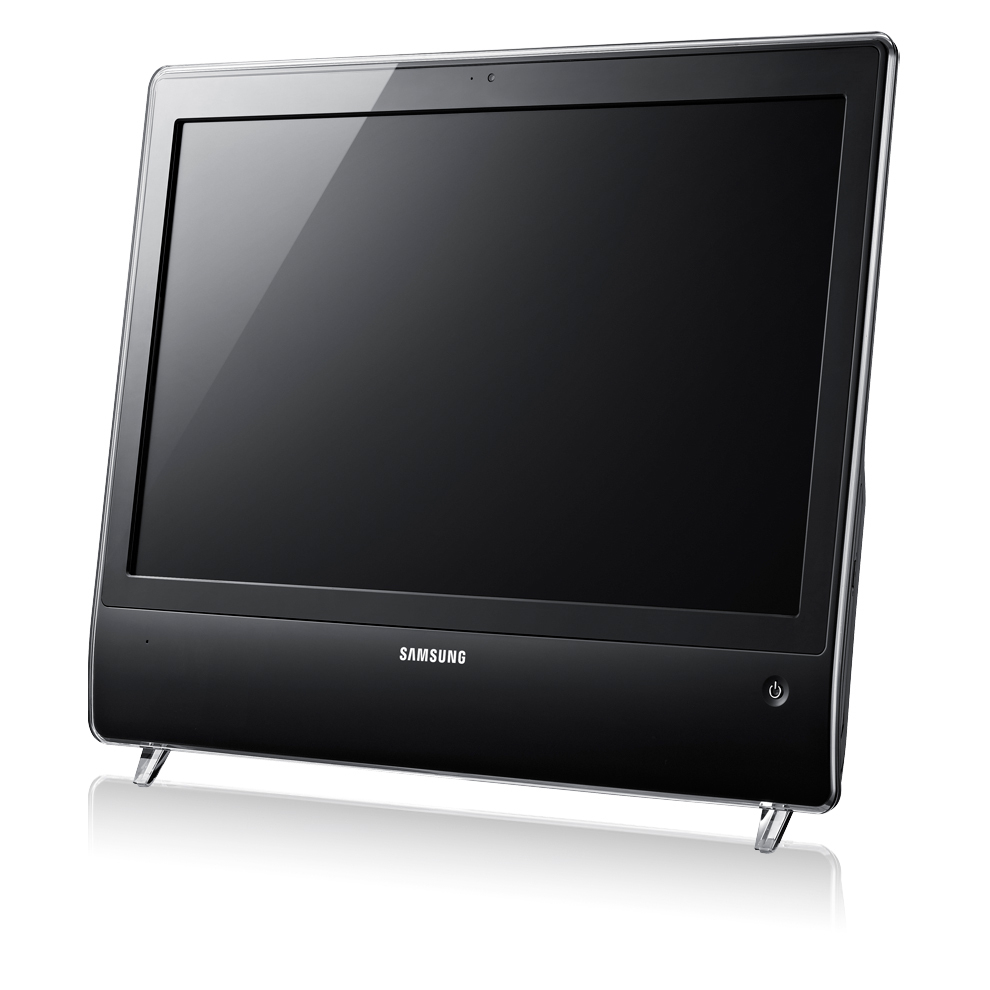

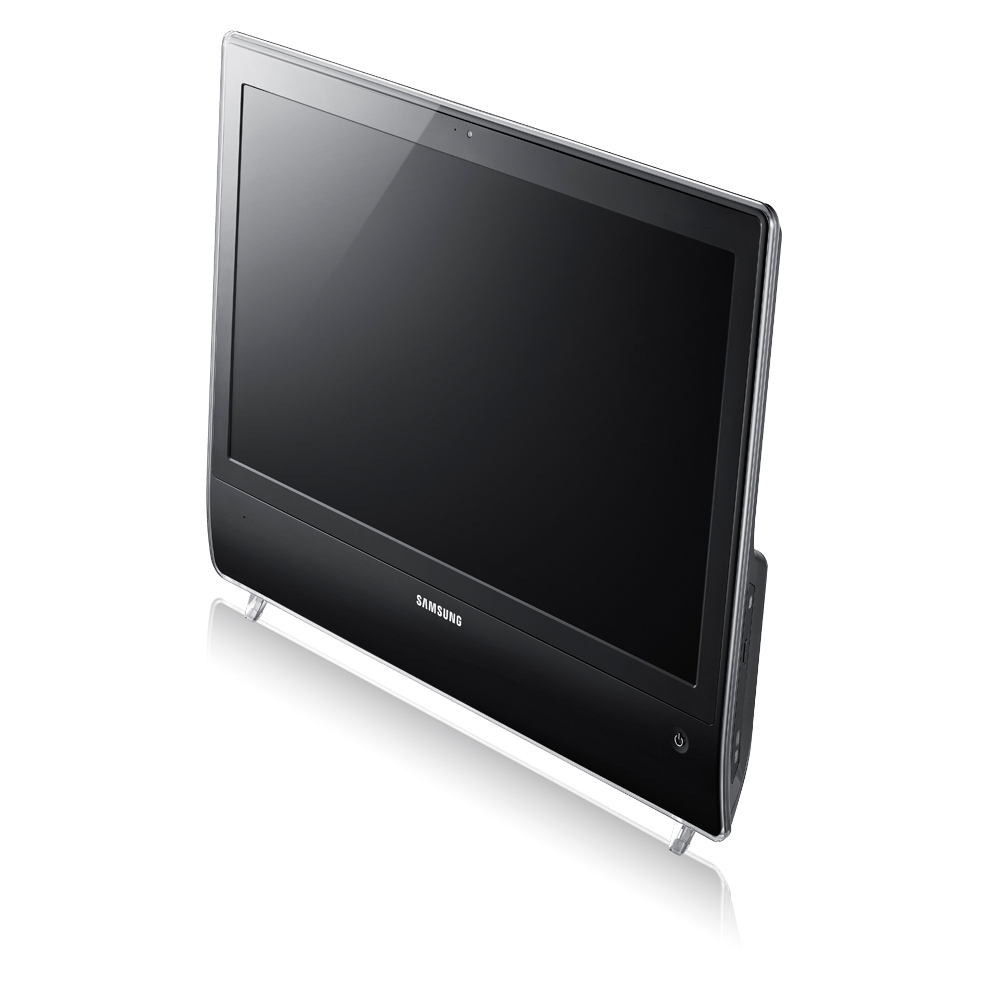

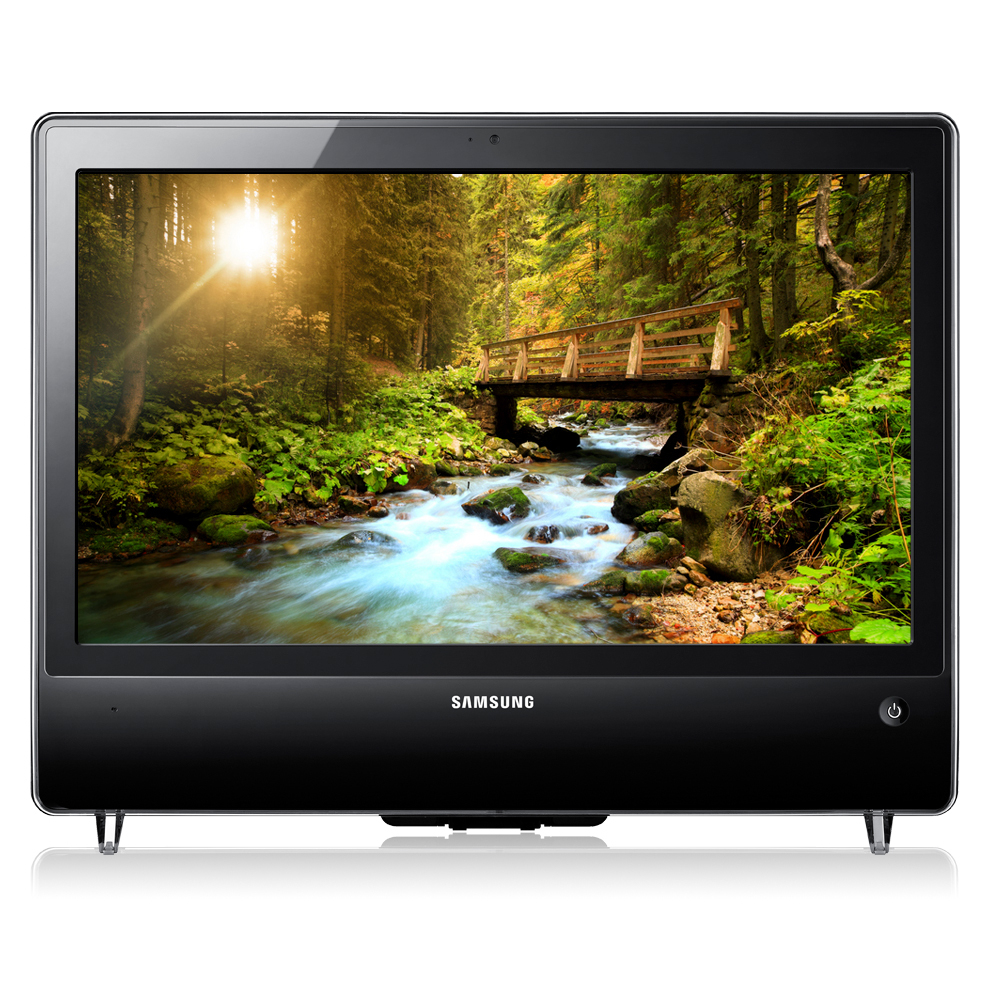

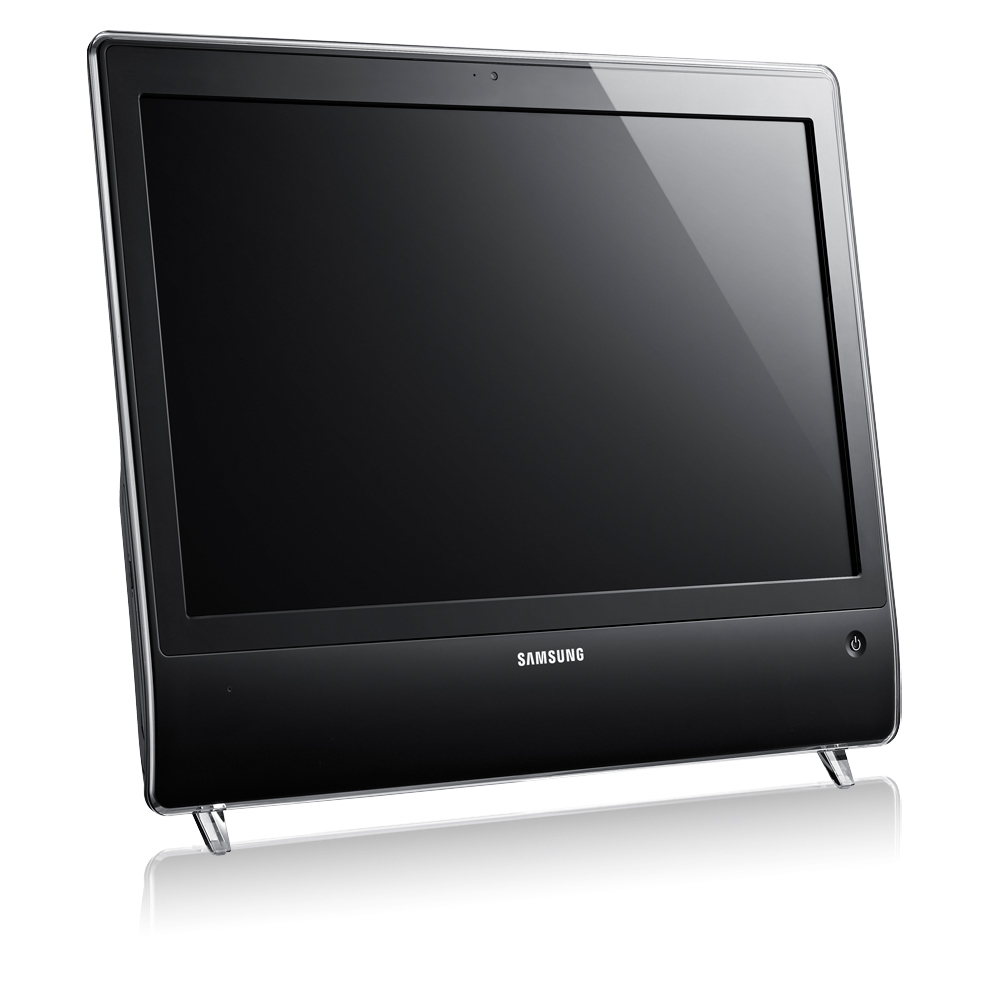

NT700Z5C-S54S All-in-One PC/workstation Intel® Pentium® G620T
58.4 cm (23") 1920 x 1080 pixels Touchscreen 2 GB DDR3-SDRAM 500 GB HDD Windows 7 Home Pre
Model NT700Z5C-S54S
139 specifications
- Display58.4 cm (23")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Pentium®
- Memory2 GB
- Storage500 GB
- GraphicsNot available
Overview
- Display
- 58.4 cm (23")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Pentium®
- Memory
- 2 GB
- Storage
- 500 GB
- Graphics
- Not available
- Brand
- Samsung
- Category
- All-in-One PCs/Workstations
- Model
- NT700Z5C-S54S
- Part number
- NT700Z5C-S54S
- Also known as
- Samsung NT700Z5C-S54S All-in-One PC/workstation Intel® Pentium® G620T 58.4 cm (23") 1920 x 1080 pixels Touchscreen 2 GB DDR3-SDRAM 500 GB HDD Windows 7 Home Pre
Specifications
139 specifications in 17 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 58.4 cm (23") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| Full HD | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® |
| Processor model | G620T |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 2.2 GHz |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Processor socket | LGA 1155 (Socket H2) |
| System bus rate | 5 GT/s |
| 64-bit computing | Yes |
| Thermal Design Power (TDP) | 35 W |
| Bus type | DMI |
| CPU multiplier (bus/core ratio) | 22 |
| FSB Parity | No |
| PCI Express slots version | 2.0 |
| Processor code | SR05T |
| Processor codename | Sandy Bridge |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Pentium G600 Series for Desktop |
| Stepping | Q0 |
| Tcase | 65 °C |
| Conflict-Free processor | No |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1066 MHz |
| Memory bandwidth supported by processor (max) | 17 GB/s |
| Memory channels supported by processor | Dual |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR3-SDRAM |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 1333 MHz |
| Memory layout (slots x size) | 1 x 2 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Storage media | HDD |
| Number of storage drives installed | 1 |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD speed | 7200 RPM |
| HDD interface | SATA II |
| Number of SSDs installed | 0 |

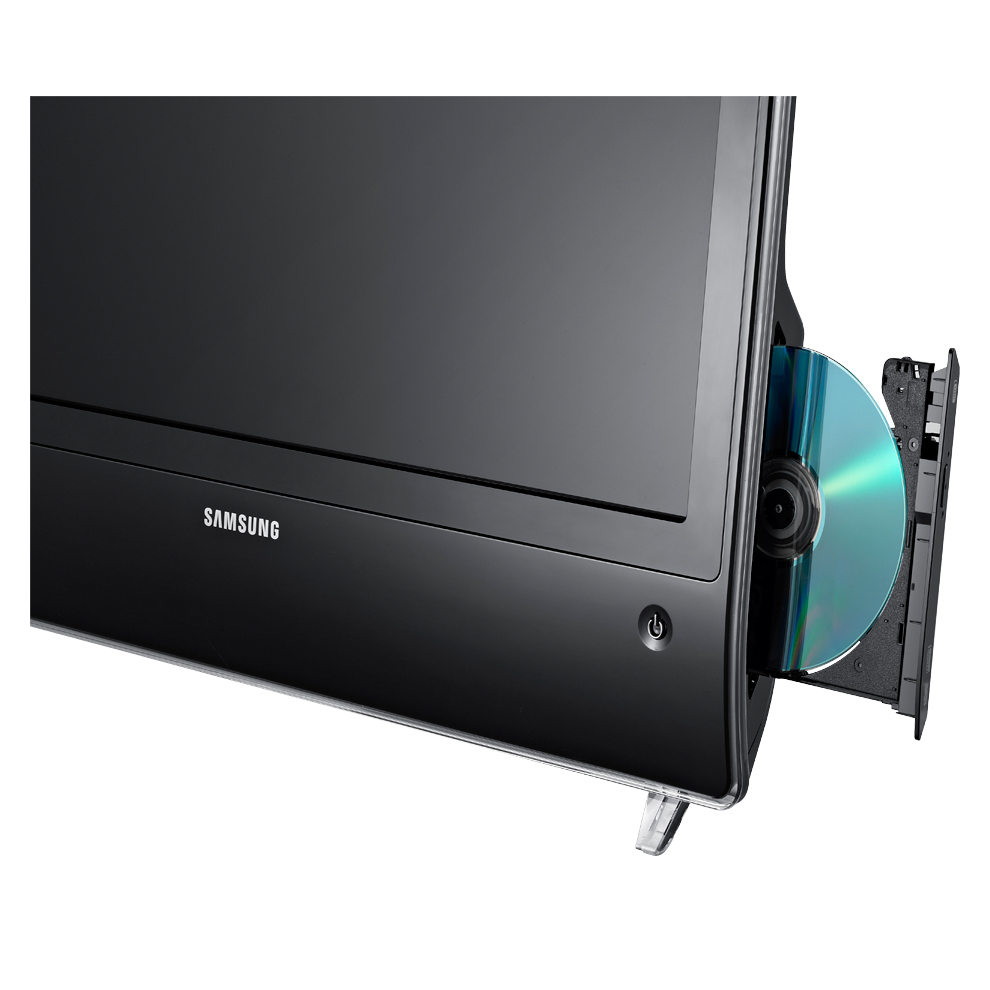

| Optical drive type | DVD Super Multi DL |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD, SDHC, SDXC |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics |
| Number of displays supported (on-board graphics) | 2 |
| On-board graphics card base frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 12 W |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Total megapixels | 1.3 MP |
Optical drive
| Specification | Value |
|---|---|
| Optical drive interface | SATA |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 3.0+HS |

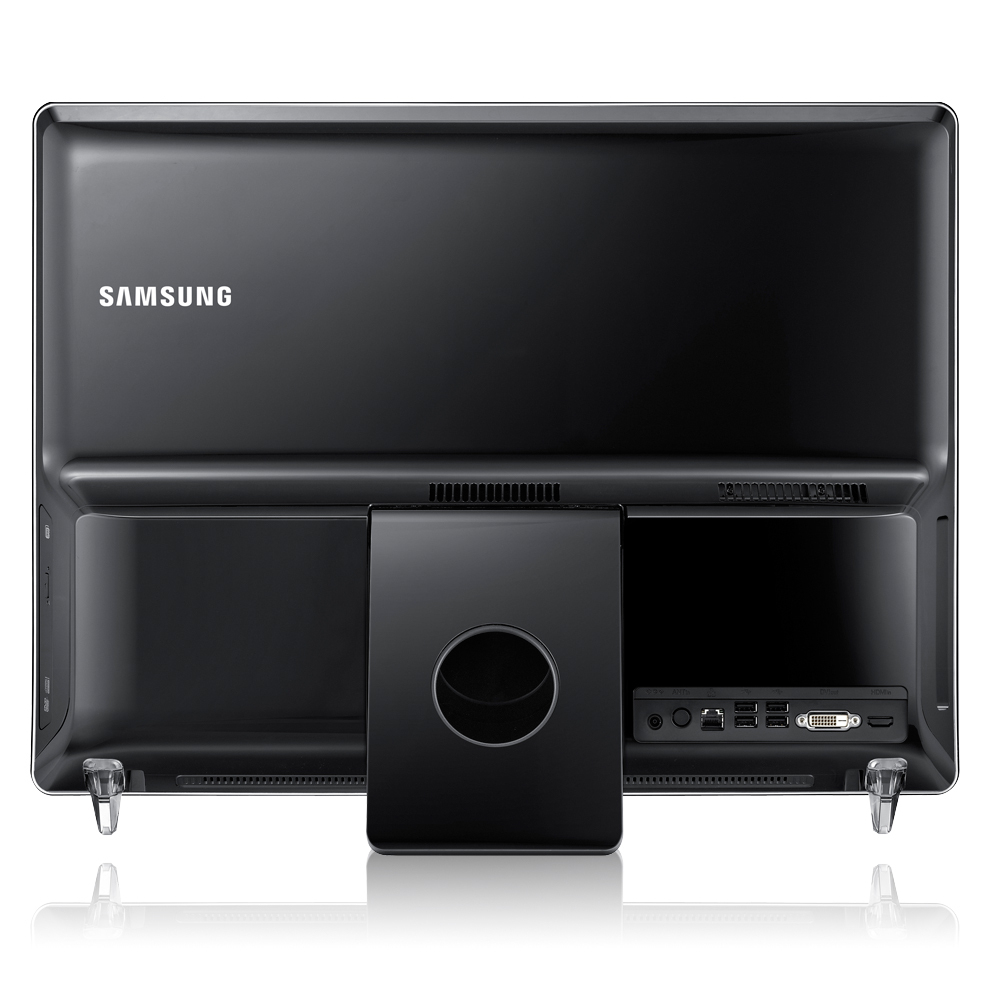

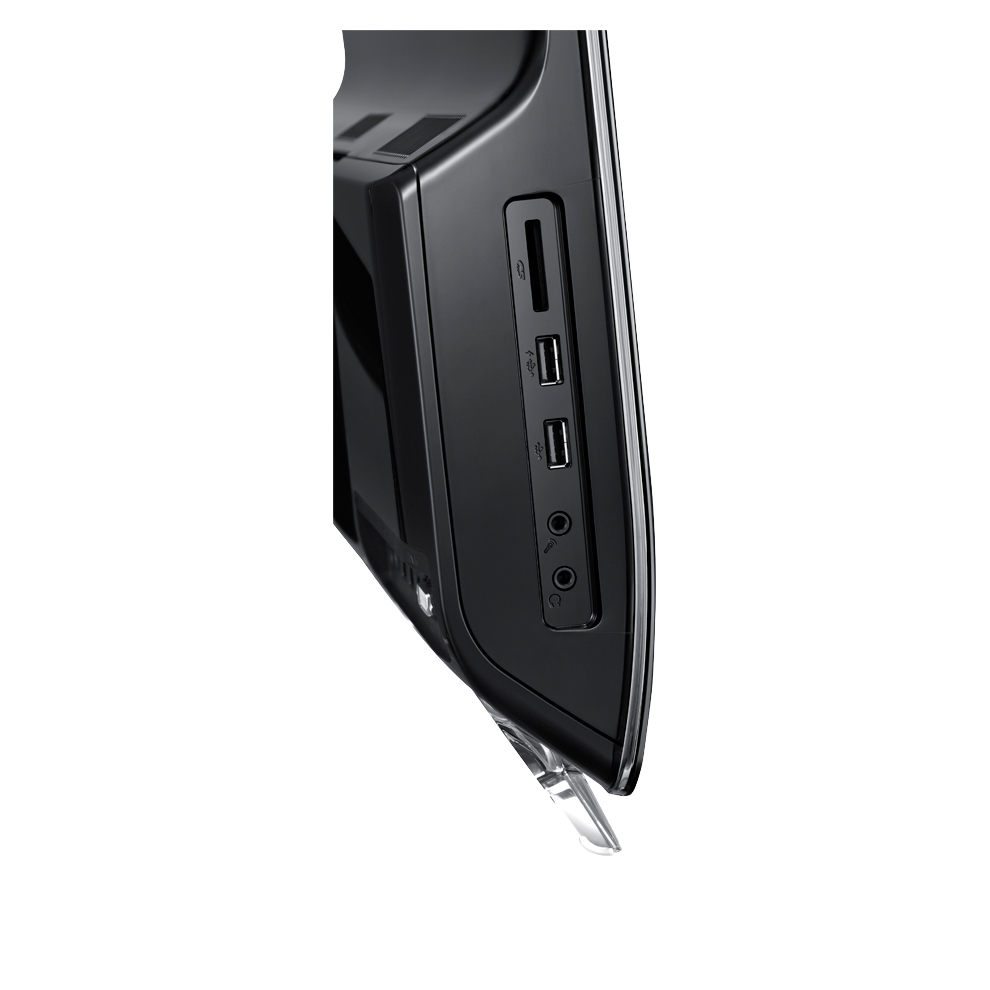

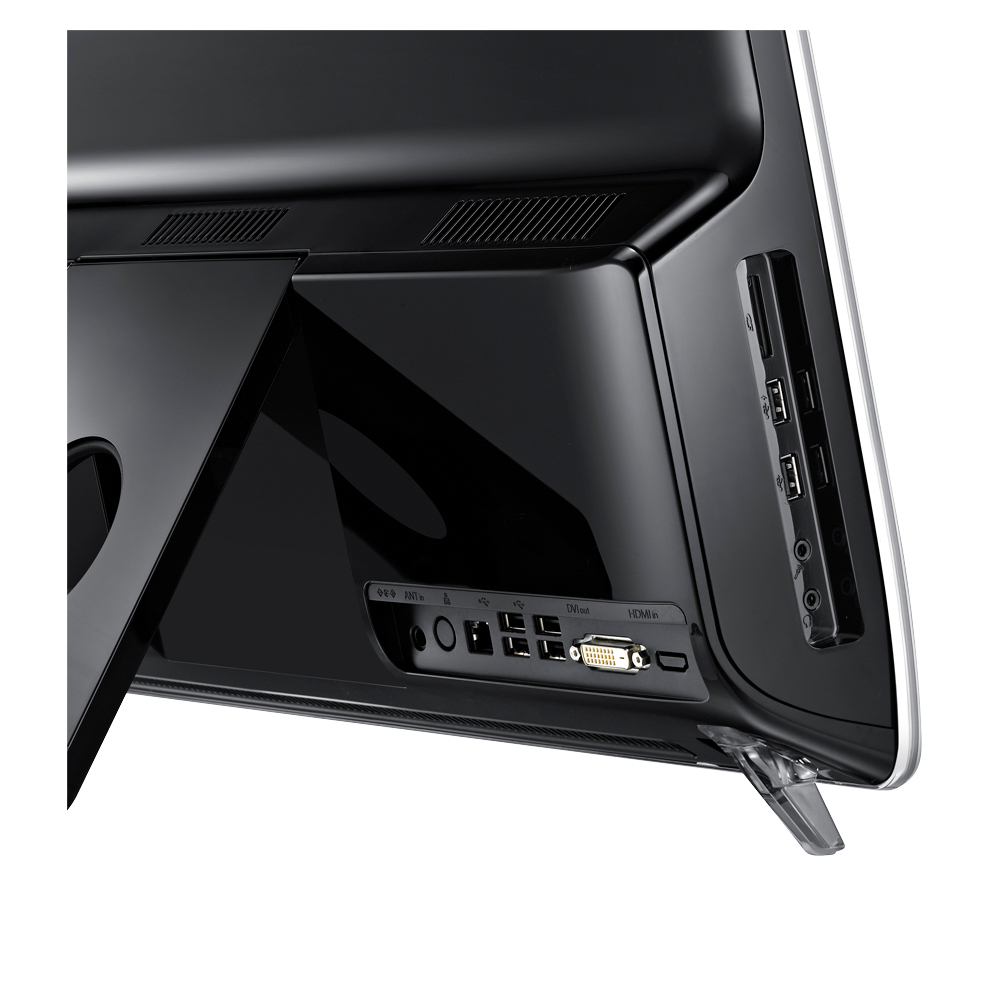

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Thunderbolt ports quantity | 0 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 0 |
| Mini DisplayPorts quantity | 0 |
| DVI port | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| DC-in jack | Yes |
| eSATA ports quantity | 0 |
| eSATA/USB 2.0 ports quantity | 0 |
| eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® H61 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Home Premium |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 53481 |
| Processor package size | 37.5 x 37.5 mm |
| Supported instruction sets | SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 572 mm |
| Depth (with stand) | 278 mm |
| Height (with stand) | 457 mm |
| Weight (with stand) | 10 kg |

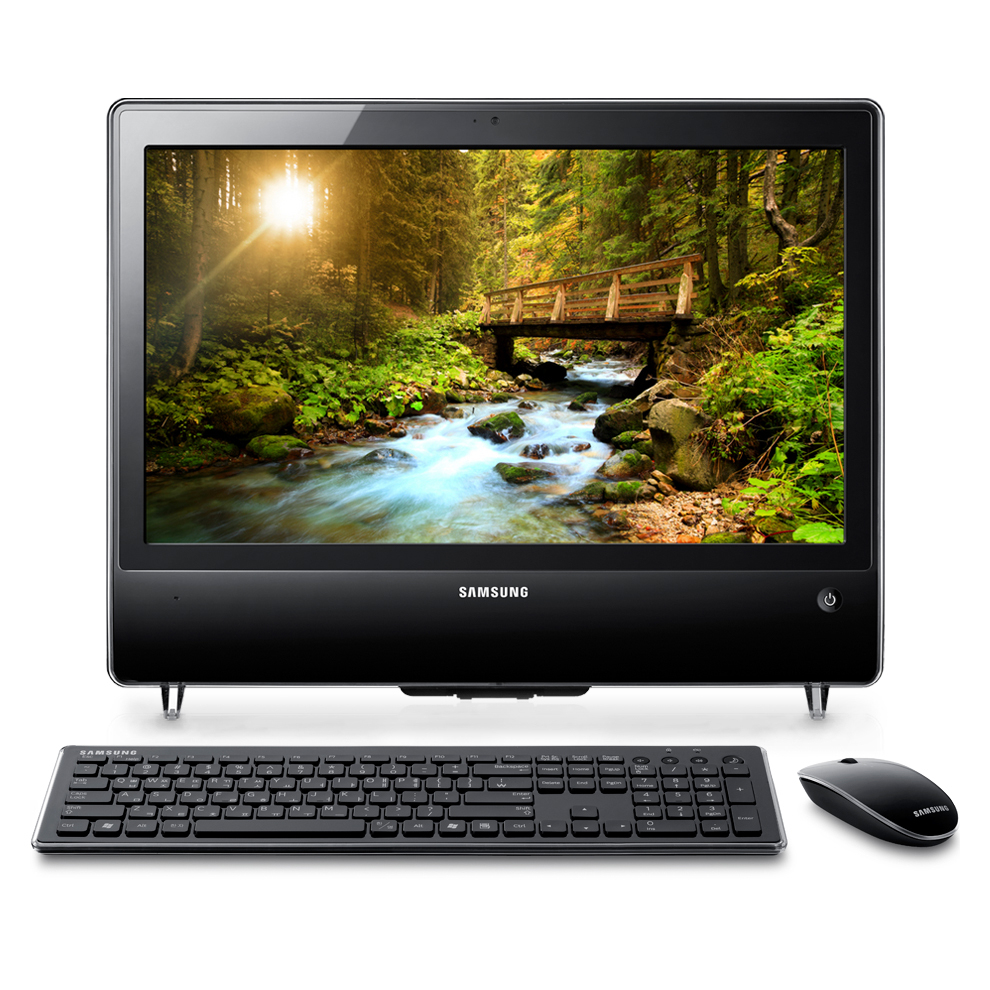

Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
Other features
| Specification | Value |
|---|---|
| Graphics card family | Intel |
| Chassis type | All-in-One |
| Display diagonal (metric) | 58.5 cm |
| Display included | Yes |
| HDMI | Yes |
| Networking features | Gigabit Ethernet, WLAN |
| Number of processors installed | 1 |
| Storage drive interface | Serial ATA II |
