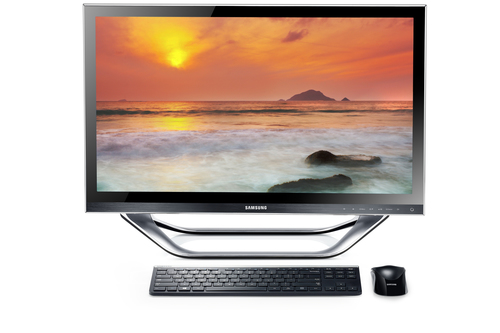

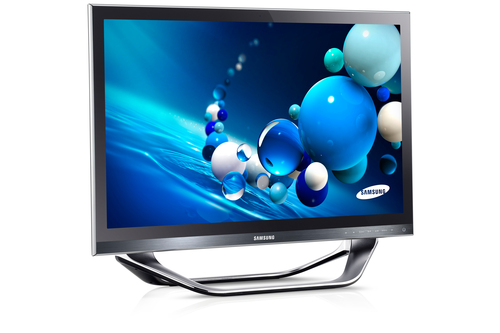

DM700A7D-KN22 All-in-One PC/workstation Intel Pentium G G2020T
68.6 cm (27") 1920 x 1080 pixels 8 GB DDR3-SDRAM 1 TB HDD Windows 8.1 Black
Model DM700A7D-KN22
134 specifications
- Display68.6 cm (27")
- Resolution1920 x 1080 pixels
- ProcessorIntel Pentium G
- Memory8 GB
- Storage1 TB
- GraphicsNot available
Overview
- Display
- 68.6 cm (27")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel Pentium G
- Memory
- 8 GB
- Storage
- 1 TB
- Graphics
- Not available
- Brand
- Samsung
- Category
- All-in-One PCs/Workstations
- Model
- DM700A7D-KN22
- Part number
- DM700A7D-KN22
- Also known as
- Samsung DM700A7D-KN22 All-in-One PC/workstation Intel Pentium G G2020T 68.6 cm (27") 1920 x 1080 pixels 8 GB DDR3-SDRAM 1 TB HDD Windows 8.1 Black
Specifications
134 specifications in 17 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 68.6 cm (27") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Full HD | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Pentium G |
| Processor model | G2020T |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 2.5 GHz |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Processor socket | LGA 1155 (Socket H2) |
| System bus rate | 5 GT/s |
| 64-bit computing | Yes |
| Thermal Design Power (TDP) | 35 W |
| Bus type | DMI |
| CPU multiplier (bus/core ratio) | 25 |
| FSB Parity | No |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 2.0 |
| Processor codename | Ivy Bridge |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Pentium G2000 Series for Desktop |
| Stepping | P0 |
| Conflict-Free processor | Yes |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1333 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Memory channels supported by processor | Dual |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 1333 MHz |
| Memory layout (slots x size) | 2 x 4 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Storage media | HDD |
| Number of storage drives installed | 1 |
| Number of HDDs installed | 1 |
| HDD speed | 5400 RPM |
| HDD interface | SATA II |
| Optical drive type | DVD Super Multi DL |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 1050 MHz |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 14 W |
| Built-in microphone | Yes |
| Dolby technologies | Dolby Home Theater |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
Optical drive
| Specification | Value |
|---|---|
| Optical drive interface | SATA |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |

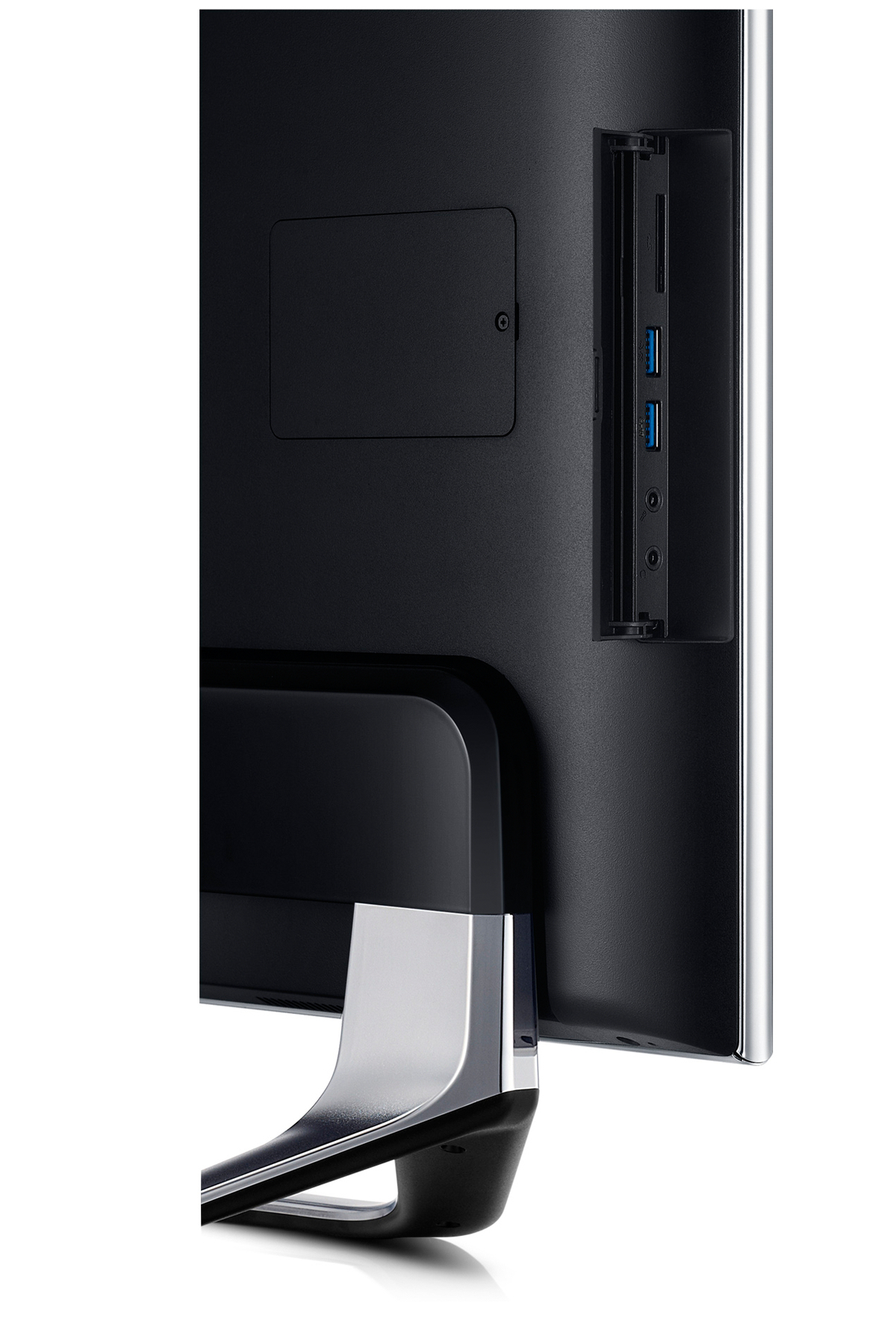

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Thunderbolt ports quantity | 0 |
| HDMI ports quantity | 2 |
| VGA (D-Sub) ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| DC-in jack | Yes |
| RF ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cable lock slot | Yes |
Performance
| Specification | Value |
|---|---|
| Product type | All-in-One PC |
| Motherboard chipset | Intel® H61 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 8.1 |
| Operating system architecture | 64-bit |
| Trial software | Norton Internet Security, Microsoft Office |
| Bundled software | Adobe Photoshop Element 11, Recovery, Link, SideSync, Settings, S Player+, S PhotoStudio, Support Center, SW Update |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Secure Key | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 71069 |
| Processor package size | 37.5 x 37.5 mm |
| Supported instruction sets | SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2011A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 650.7 mm |
| Depth (with stand) | 189.7 mm |
| Height (with stand) | 482.1 mm |
| Weight (with stand) | 11.6 kg |

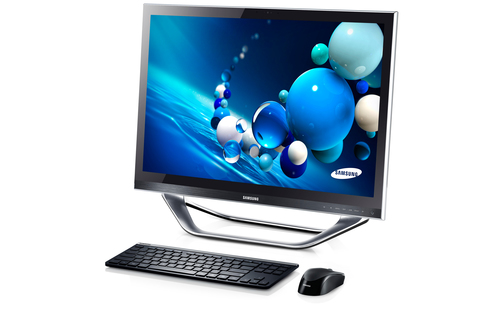

Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
Other features
| Specification | Value |
|---|---|
| Autonomy mode | No |
| Storage drive interface | Serial ATA II |
| TV tuner integrated | Yes |
