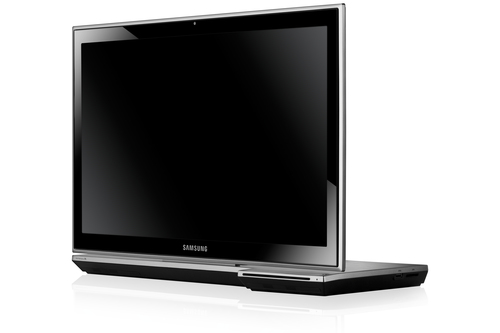

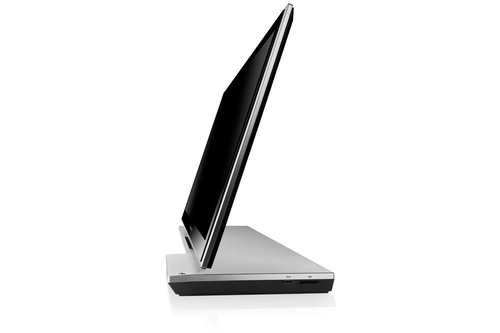

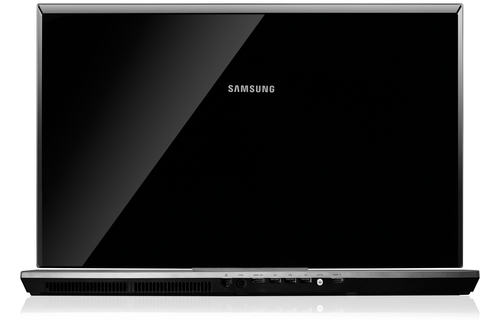

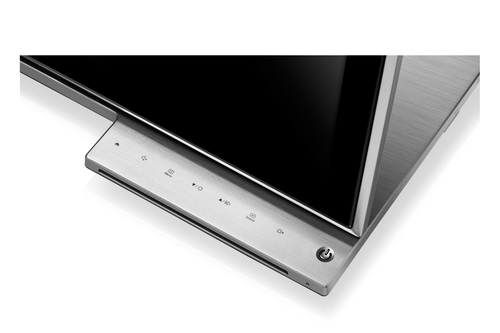

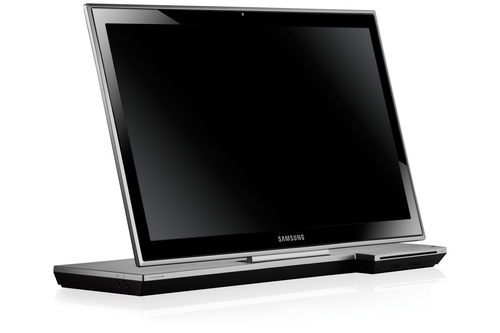

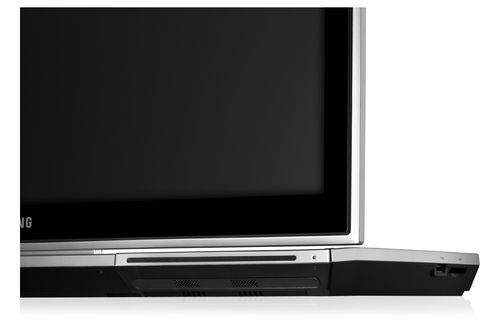

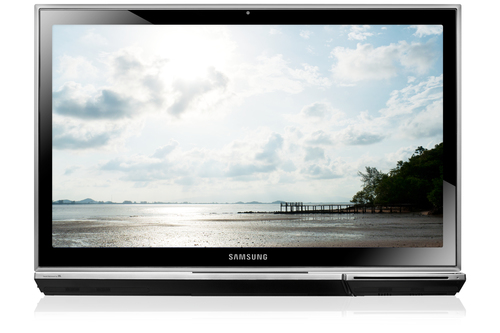

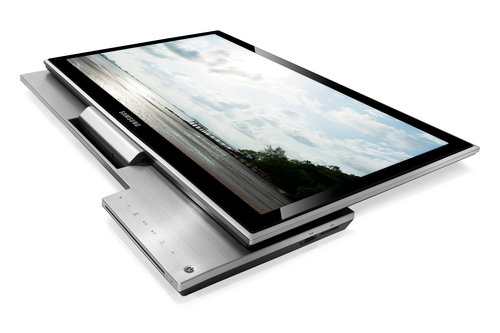

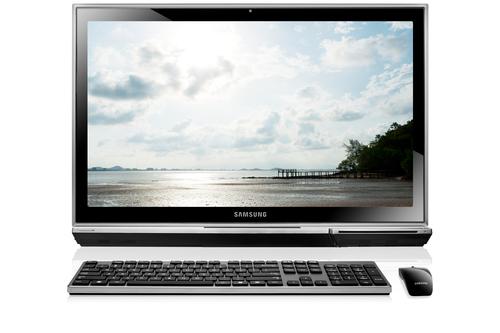

DM700A3C-A30 All-in-One PC/workstation Intel® Core™ i3 i3-2120T

58.4 cm (23") 1920 x 1080 pixels 8 GB DDR3-SDRAM 1 TB HDD Windows 7 Home Premium Black

Model DM700A3C-A30

135 specifications

Overview

Brand: Samsung
Category: All-in-One PCs/Workstations
Model: DM700A3C-A30
Part number: DM700A3C-A30
Also known as: Samsung DM700A3C-A30 All-in-One PC/workstation Intel® Core™ i3 i3-2120T 58.4 cm (23") 1920 x 1080 pixels 8 GB DDR3-SDRAM 1 TB HDD Windows 7 Home Premium Black

135 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	2nd gen Intel® Core™ i3
Processor model	i3-2120T
Processor cores	2
Processor threads	4
Processor frequency	2.6 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	LGA 1155 (Socket H2)
System bus rate	5 GT/s
64-bit computing	Yes
Thermal Design Power (TDP)	35 W
Bus type	DMI
CPU multiplier (bus/core ratio)	26
Maximum number of PCI Express lanes	16
PCI Express slots version	2.0
Processor code	SR060
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Stepping	Q0
Tcase	65 °C
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
Memory channels supported by processor	Dual

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	1 TB
HDD speed	7200 RPM
HDD interface	SATA II
Number of SSDs installed	0
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 2000
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card ID	0x102

Specification	Value
Built-in camera	Yes
Total megapixels	1.3 MP

Specification	Value
Optical drive interface	SATA

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Thunderbolt ports quantity	0
HDMI ports quantity	2
VGA (D-Sub) ports quantity	0
DisplayPorts quantity	0
Mini DisplayPorts quantity	0
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
eSATA ports quantity	0
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0

Specification	Value
Product colour	Black

Specification	Value
Motherboard chipset	Intel® H61

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	53427
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Specification	Value
Graphics card family	Intel
Cabling technology	10/100/1000Base-T(X)
Chassis type	All-in-One
Display diagonal (metric)	58.5 cm
Display included	Yes
Ethernet interface type	Gigabit Ethernet
HDMI	Yes
Networking features	Gigabit Ethernet, WLAN
Number of processors installed	1
Storage drive interface	Serial ATA II
