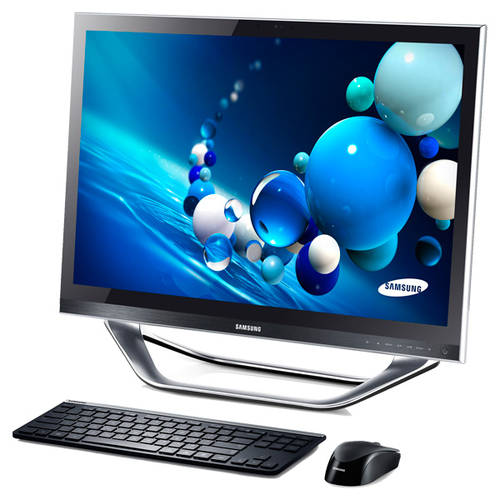

Samsung DM700A3C-A22 All-in-One PC/workstation Intel Pentium G G630T

58.4 cm (23") 1920 x 1080 pixels 4 GB DDR3-SDRAM 1 TB HDD Windows 7 Home Premium Black

Model DM700A3C-A22

129 specifications

Display58.4 cm (23")
Resolution1920 x 1080 pixels
ProcessorIntel Pentium G
Memory4 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 58.4 cm (23")
Resolution: 1920 x 1080 pixels
Processor: Intel Pentium G
Memory: 4 GB
Storage: 1 TB
Graphics: Not available

Brand: Samsung
Category: All-in-One PCs/Workstations
Model: DM700A3C-A22
Part number: DM700A3C-A22
Also known as: Samsung DM700A3C-A22 All-in-One PC/workstation Intel Pentium G G630T 58.4 cm (23") 1920 x 1080 pixels 4 GB DDR3-SDRAM 1 TB HDD Windows 7 Home Premium Black

Specifications

129 specifications in 17 groups

Display

Specification	Value
Display diagonal	58.4 cm (23")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Full HD	Yes
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium G
Processor model	G630T
Processor cores	2
Processor threads	2
Processor frequency	2.3 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	LGA 1155 (Socket H2)
System bus rate	5 GT/s
64-bit computing	Yes
Thermal Design Power (TDP)	35 W
Bus type	DMI
CPU multiplier (bus/core ratio)	23
PCI Express slots version	2.0
Processor code	SR05U
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Pentium G600 Series for Desktop
Stepping	Q0
Tcase	65 °C
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066 MHz
Memory bandwidth supported by processor (max)	17 GB/s
Memory channels supported by processor	Dual

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	1333 MHz
Memory layout (slots x size)	1 x 4 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	1 TB
HDD speed	7200 RPM
HDD interface	SATA II
Number of SSDs installed	0

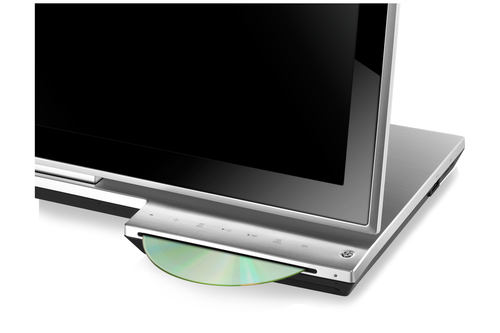

Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC

Graphics

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1100 MHz

Audio

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	8 W
Built-in microphone	Yes

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	1.3 MP

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	3.0+HS

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	2
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes

Design

Specification	Value
Product colour	Black

Performance

Specification	Value
Motherboard chipset	Intel® H61
BIOS password	Yes
HDD user password	Yes

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	53484
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes

Power

Specification	Value
AC adapter power	90 W

Weight & dimensions

Specification	Value
Width (with stand)	562.3 mm
Depth (with stand)	213 mm
Height (with stand)	382.1 mm
Weight (with stand)	8.3 kg

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No

Other features

Specification	Value
Graphics card family	Intel
Cabling technology	10/100/1000Base-T(X)
Camera included	Yes
Chassis type	All-in-One
Display diagonal (metric)	58.4 cm
Display included	Yes
Ethernet interface type	Gigabit Ethernet
HDMI	Yes
HDMI in	1
Networking features	Gigabit Ethernet, WLAN
Number of processors installed	1
Storage drive interface	Serial ATA II
