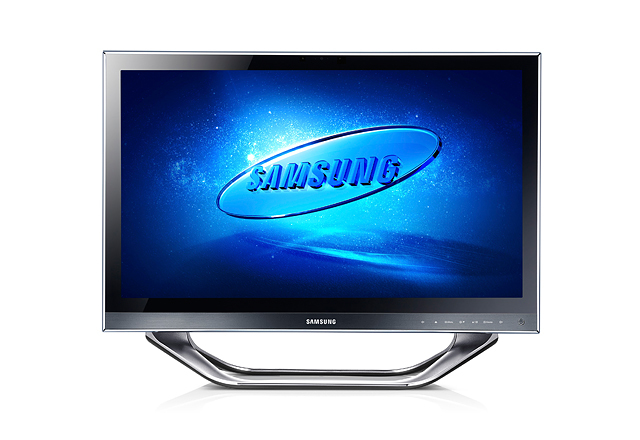

Samsung DB701A3D Intel® Core™ i3 i3-3220T

59.9 cm (23.6") 1920 x 1080 pixels All-in-One PC 8 GB DDR3-SDRAM 1 TB HDD AMD Radeon HD 7690M Windows 8 Black

Model DB701A3DPart no. DB701A3D-S3E1Z

153 specifications

Display59.9 cm (23.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i3
Memory8 GB
Storage1 TB
GraphicsAMD Radeon HD 7690M

See all specifications

Overview

Display: 59.9 cm (23.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i3
Memory: 8 GB
Storage: 1 TB
Graphics: AMD Radeon HD 7690M

Brand: Samsung
Category: All-in-One PCs/Workstations
Model: DB701A3D
Part numbers: DB701A3D-S3E1Z, DB701A3D-S3E2Z, DB701A3D-X5E1Z, DB701A3D-X3E1Z
Also known as: Samsung DB701A3D Intel® Core™ i3 i3-3220T 59.9 cm (23.6") 1920 x 1080 pixels All-in-One PC 8 GB DDR3-SDRAM 1 TB HDD AMD Radeon HD 7690M Windows 8 Black

Specifications

153 specifications in 19 groups

Display

Specification	Value
Display diagonal	59.9 cm (23.6")
Display resolution	1920 x 1080 pixels
HD type	Full HD
Full HD	Yes
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	3rd gen Intel® Core™ i3
Processor model	i3-3220T
Processor cores	2
Processor threads	4
Processor frequency	2.8 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	LGA 1155 (Socket H2)
System bus rate	5 GT/s
Thermal Design Power (TDP)	35 W
Bus type	DMI
CPU multiplier (bus/core ratio)	28
FSB Parity	No
PCI Express configurations	1x16, 2x8
PCI Express slots version	2.0
Processor codename	Ivy Bridge
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i3-3200 Desktop Series
Tcase	65 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	1600 MHz
Memory layout (slots x size)	2 x 4 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD speed	5400 RPM
HDD interface	SATA II
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
Discrete graphics card model	AMD Radeon HD 7690M
Discrete graphics card memory	1 GB
Discrete graphics memory type	GDDR5
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 2500
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
On-board graphics card ID	0x152

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	14 W
Built-in microphone	Yes
Audio system	HD

Camera

Specification	Value
Built-in camera	Yes
Camera resolution	1280 x 720 pixels

Optical drive

Specification	Value
Optical drive interface	SATA
Disc types supported	CD, DVD
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Thunderbolt ports quantity	0
HDMI ports quantity	2
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
eSATA ports quantity	0
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0

Design

Specification	Value
Product colour	Black
Cable lock slot	Yes
Cable lock slot type	Kensington

Performance

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel® H77 Express
BIOS password	Yes
HDD user password	Yes

Software

Specification	Value
Operating system installed	Windows 8
Operating system architecture	64-bit
Bundled software	Samsung Recovery Solution

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Active Management Technology (Intel® AMT)	No
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	65694
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2011A

Power

Specification	Value
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V

Weight & dimensions

Specification	Value
Width (with stand)	574.2 mm
Depth (with stand)	189.9 mm
Height (with stand)	438.8 mm
Weight (with stand)	8.5 kg

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 90%

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Warranty card	Yes
AC adapter included	Yes
Quick start guide	Yes

Other features

Specification	Value
Power auto-sensing	Yes
Autonomy mode	No
Storage drive interface	Serial ATA II
