UW-24
Model UW-24Part no. 5524100
53 specifications
- Display61 cm (24")
- Resolution1920 x 360 pixels
- ProcessorARM Rockchip
- Memory2 GB
- OSAndroid 8.1
- Weight2.75 kg
Overview
- Display
- 61 cm (24")
- Resolution
- 1920 x 360 pixels
- Processor
- ARM Rockchip
- Memory
- 2 GB
- OS
- Android 8.1
- Weight
- 2.75 kg
- Brand
- ProDVX
- Category
- All-in-One PCs/Workstations
- Model
- UW-24
- Part number
- 5524100
- Also known as
- ProDVX UW-24
Specifications
53 specifications in 17 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 61 cm (24") |
| Display resolution | 1920 x 360 pixels |
| LED backlight | Yes |
| Native aspect ratio | 16:3 |
| Display brightness | 300 cd/m² |
| Panel type | IPS |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Rockchip |
| Processor family | ARM Rockchip |
| Processor model | RK3288 |
| Processor cores | 4 |
| Processor frequency | 1.6 GHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| Specification | Value |
|---|---|
| On-board GPU manufacturer | ARM |
| On-board graphics card model | ARM Mali-T764 |
Audio
| Specification | Value |
|---|---|
| Audio formats supported | AAC, ASF, MP2, OGG, WAV, WMA |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,10 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |

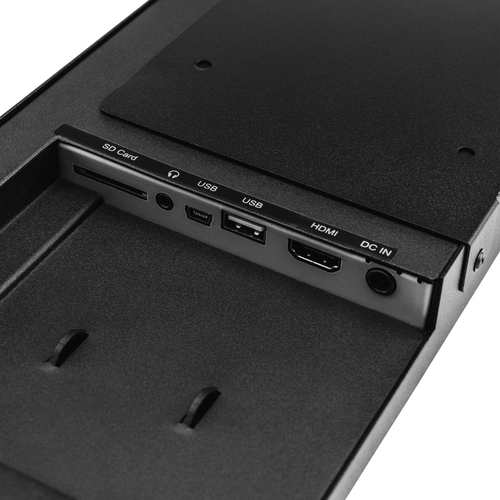

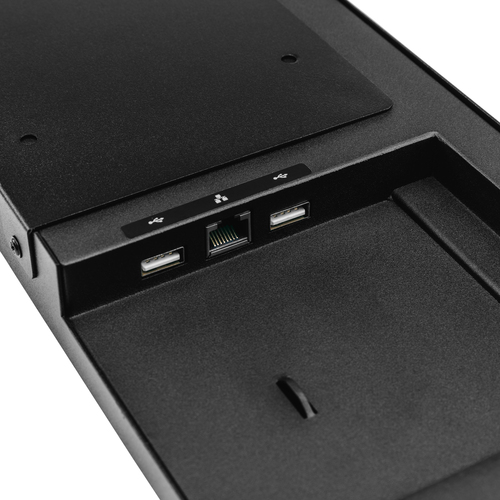

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 3 |
| HDMI output ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI port | No |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| VESA mounting | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Android 8.1 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 18 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 615.7 mm |
| Depth (without stand) | 34 mm |
| Height (without stand) | 140.1 mm |
| Weight | 2.75 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS, REACH |
| Certification | FCC, CE, RoHS |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85285210 |
Other features
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 40000 h |
| Video formats supported | 3GP, ASF, AVI, DAT, FLV, MKV, MOV, MP4, MPG, RM, TS, VOB, WMV |
| USB connector type | Mini-USB, USB Type-A |
| USB ports quantity | 3 |
