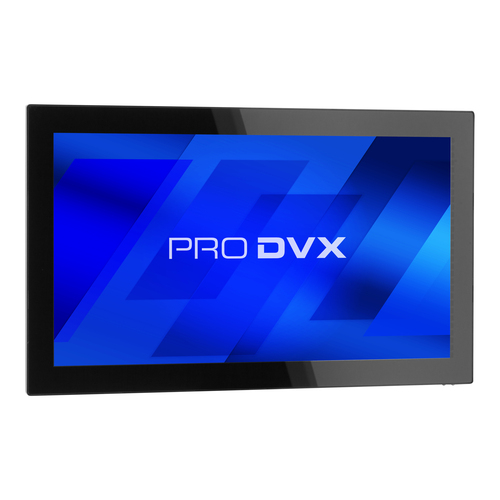

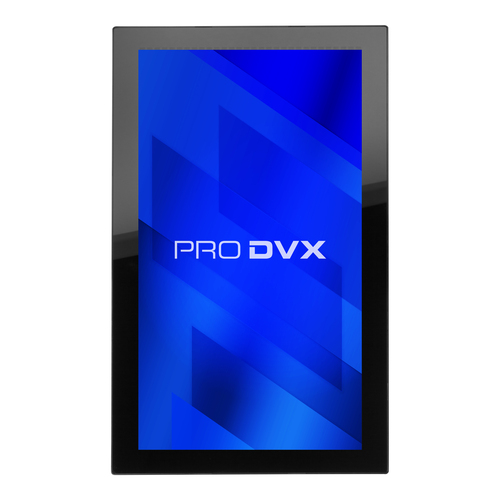

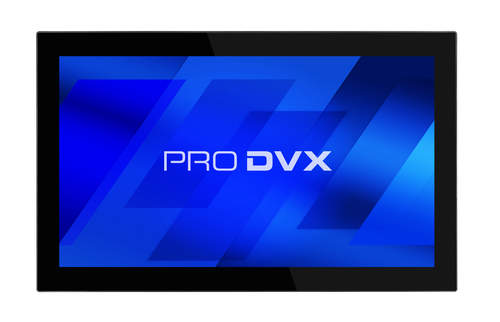

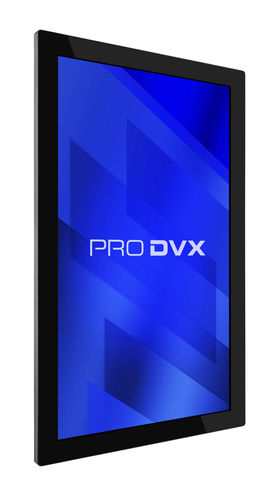

TMP-15X (R24-1001)
Model TMP-15X-R24-1001Part no. 3015105
46 specifications
- Display39.6 cm (15.6")
- Resolution1920 x 1080 pixels
- TypeAll-in-One tablet PC
- Weight1.2 kg
- ColourBlack
- AMD FreeSyncNo
Overview
- Display
- 39.6 cm (15.6")
- Resolution
- 1920 x 1080 pixels
- Type
- All-in-One tablet PC
- Weight
- 1.2 kg
- Colour
- Black
- AMD FreeSync
- No
- Brand
- ProDVX
- Category
- All-in-One PCs/Workstations
- Model
- TMP-15X-R24-1001
- Part number
- 3015105
- Also known as
- ProDVX TMP-15X (R24-1001)
Specifications
46 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| LED backlight | Yes |
| Touch technology | Multi-touch |
| Native aspect ratio | 16:9 |
| Display brightness | 400 cd/m² |
| Panel type | IPS |
| Anti-glare screen | Yes |
| Contrast ratio (typical) | 800:1 |
| Screen shape | Flat |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
Graphics
| Specification | Value |
|---|---|
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 1 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | ABS synthetics |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Product type | All-in-One tablet PC |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 12 V |
| Power consumption (typical) | 10 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 387.3 mm |
| Depth (without stand) | 27.2 mm |
| Height (without stand) | 241.2 mm |
| Weight (without stand) | 1.2 kg |
| Weight | 1.2 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS, REACH |
| Certification | FCC, CE, RoHS |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85285210 |
Other features
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 45000 h |
| Backlight type | Edge LED |
| HDMI | Yes |
