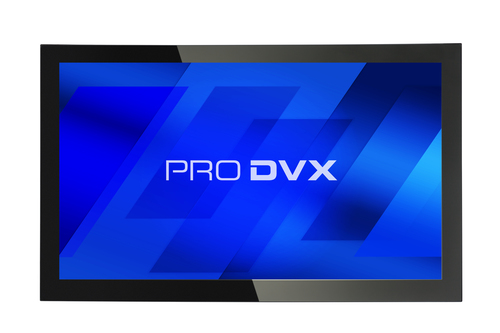

IPPC-32 (N3160)
Model IPPC-32Part no. 6032100
112 specifications
- Display80 cm (31.5")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Celeron® N
- Memory4 GB
- Storage64 GB
- GraphicsNot available
Overview
- Display
- 80 cm (31.5")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Celeron® N
- Memory
- 4 GB
- Storage
- 64 GB
- Graphics
- Not available
- Brand
- ProDVX
- Category
- All-in-One PCs/Workstations
- Model
- IPPC-32
- Part numbers
- 6032100, 6032101
- Also known as
- ProDVX IPPC-32 (N3160)
Specifications
112 specifications in 20 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 80 cm (31.5") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| LED backlight | Yes |
| Touch technology | Multi-touch |
| Native aspect ratio | 16:9 |
| Display brightness | 400 cd/m² |
| Panel type | IPS |
| Contrast ratio (typical) | 1200:1 |
| Multi-touch | Yes |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® N |
| Processor model | N3160 |
| Processor cores | 4 |
| Processor boost frequency | 2.24 GHz |
| Processor frequency | 1.6 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Integrated 4G WiMAX | No |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3L-SDRAM |
| Memory clock speed | 1600 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 64 GB |
| Storage media | SSD |
| Total SSDs capacity | 64 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 64 GB |
| SSD interface | M.2 |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 6 W |
Camera
| Specification | Value |
|---|---|
| Built-in camera | No |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000,100,10 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |

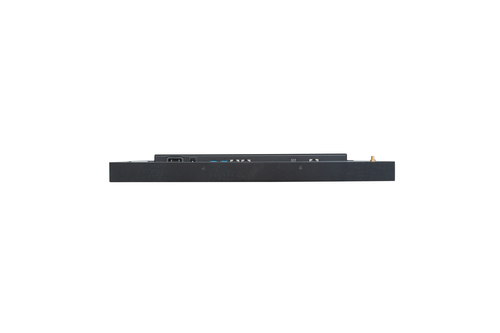

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Audio output | Yes |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| Micro-USB ports quantity | 1 |
| S/PDIF out port | Yes |

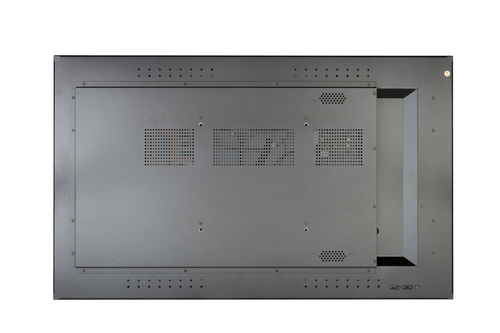

Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Panel mounting interface | 200 x 200 mm |
| VESA mounting | Yes |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Product type | All-in-One tablet PC |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Boot | Yes |
| Intel Secure Boot Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 0.00 |
| Intel Smart Connect Technology | No |
| Intel Smart Connect Technology version | 0.00 |
| Intel Smart Response Technology version | 0.00 |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 110 - 240 V |
| AC adapter output voltage | 12 V |
| Power consumption (typical) | 26 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 769 mm |
| Depth (without stand) | 46 mm |
| Height (without stand) | 471 mm |
| Weight (without stand) | 10.4 kg |
| Weight | 10.4 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE, RoHS |
| Certification | FCC, CE, RoHS |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84713000 |
Other features
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 50000 h |
| Backlight | Yes |
| Backlight type | Edge LED |
| Battery type | Lithium‐metal non‐rechargeable coin |
