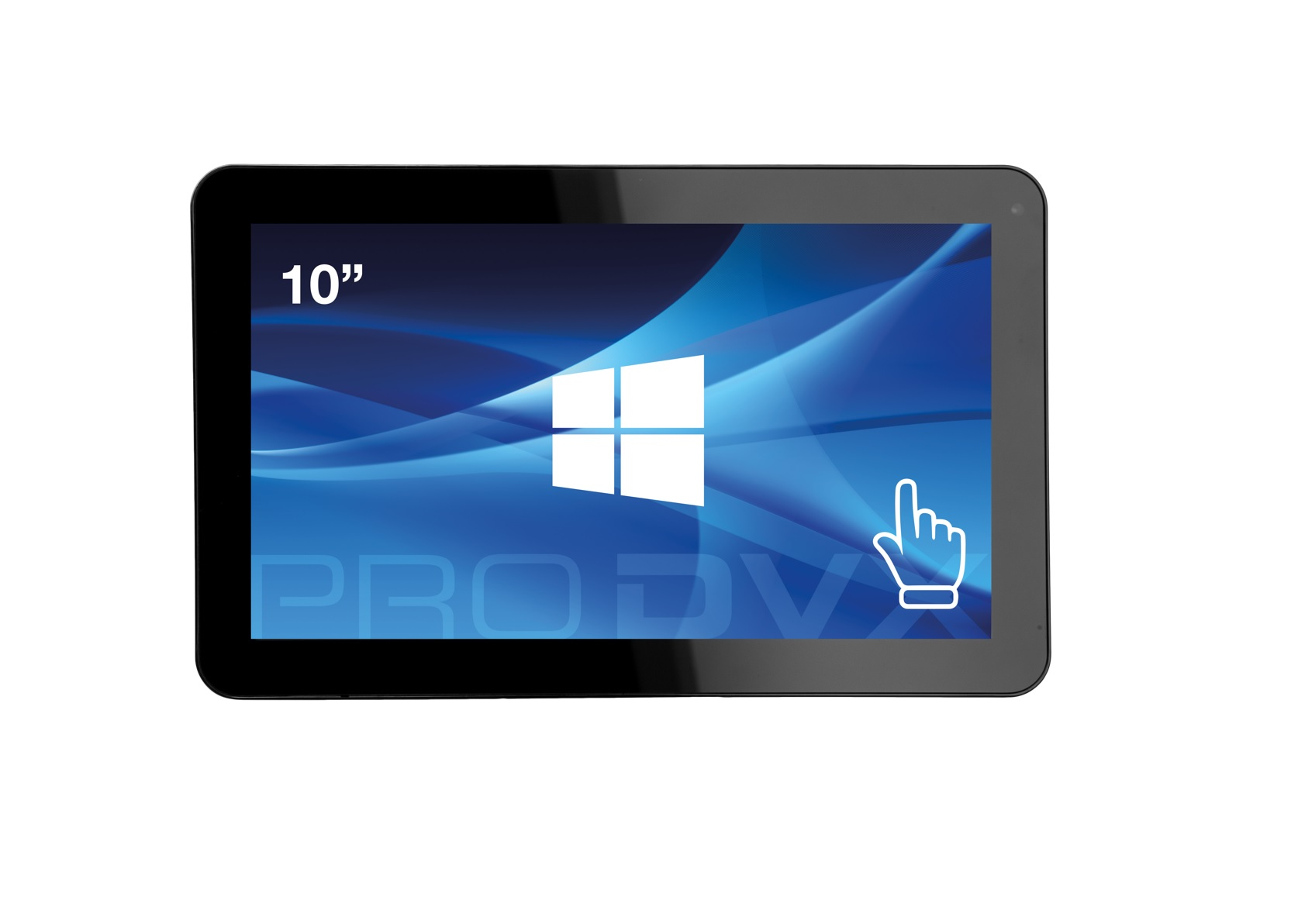

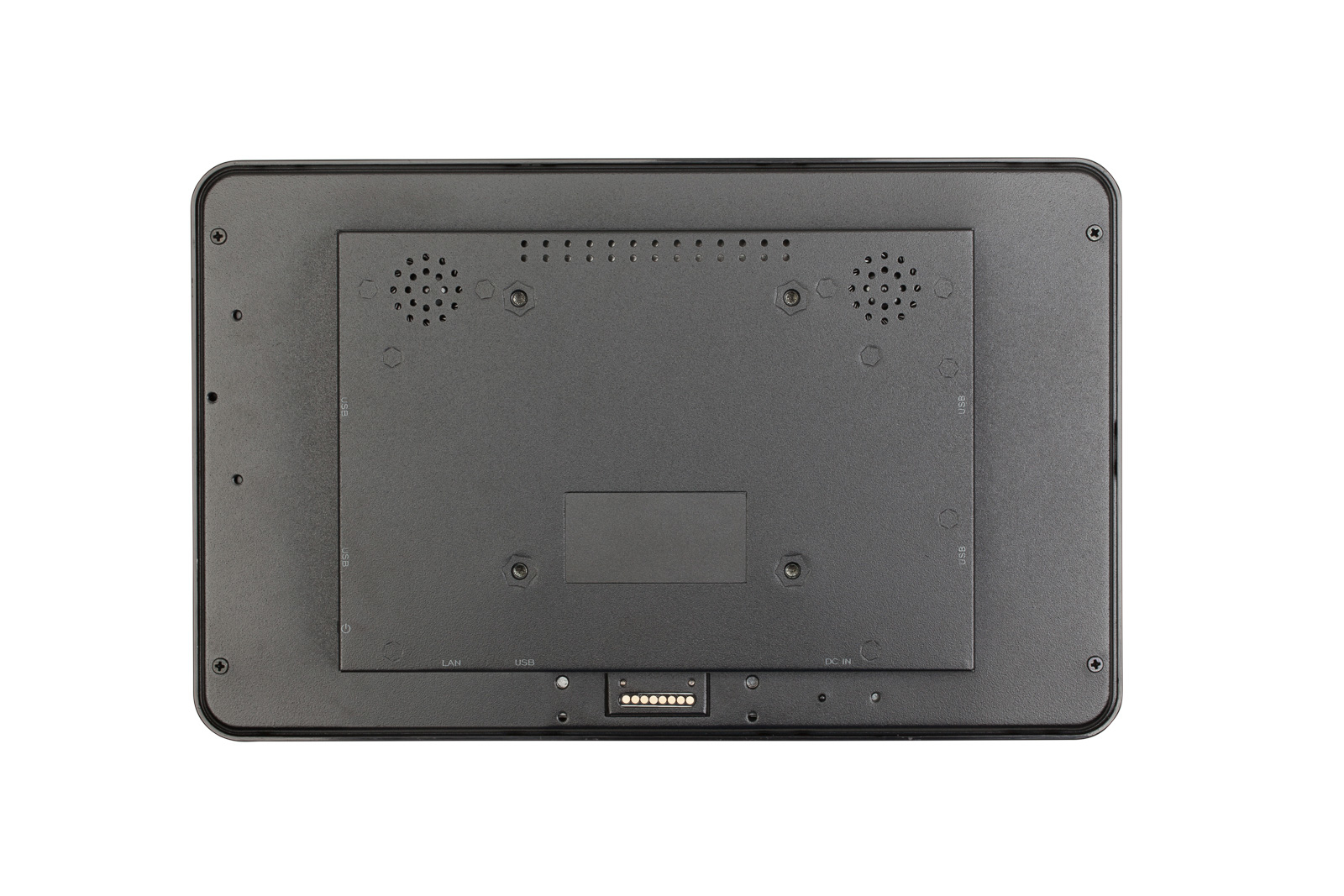

ProDVX IPPC-10 Intel® Celeron® N3160

25.4 cm (10") 1024 x 600 pixels Touchscreen All-in-One PC 4 GB DDR3L-SDRAM 64 GB SSD Black

Model IPPC-10Part no. 50070010.108

134 specifications

Display25.4 cm (10")
Resolution1024 x 600 pixels
ProcessorIntel® Celeron®
Memory4 GB
Storage64 GB
GraphicsNot available

See all specifications

Overview

Display: 25.4 cm (10")
Resolution: 1024 x 600 pixels
Processor: Intel® Celeron®
Memory: 4 GB
Storage: 64 GB
Graphics: Not available

Brand: ProDVX
Category: All-in-One PCs/Workstations
Model: IPPC-10
Part number: 50070010.108
Also known as: ProDVX IPPC-10 Intel® Celeron® N3160 25.4 cm (10") 1024 x 600 pixels Touchscreen All-in-One PC 4 GB DDR3L-SDRAM 64 GB SSD Black

Specifications

134 specifications in 17 groups

Display

Specification	Value
Display diagonal	25.4 cm (10")
Display resolution	1024 x 600 pixels
Touchscreen	Yes
HD type	Not supported
LED backlight	Yes
Touch technology	Multi-touch
Native aspect ratio	5:3
Display brightness	450 cd/m²
Contrast ratio (typical)	600:1
Screen shape	Flat
Viewing angle, horizontal	140°
Viewing angle, vertical	130°

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	N3160
Processor cores	4
Processor threads	4
Processor boost frequency	2.24 GHz
Processor frequency	1.6 GHz
Processor cache	2 MB
Processor cache type	L2
Processor socket	BGA 1170
Thermal Design Power (TDP)	6 W
Integrated 4G WiMAX	No
Maximum number of PCI Express lanes	4
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version	2.0
Processor code	SR2KP
Processor codename	Braswell
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Celeron N3000 series
Scenario Design Power (SDP)	4 W
Stepping	D1
Tjunction	90 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	8 GB
Memory types supported by processor	DDR3L-SDRAM
Memory clock speeds supported by processor	1600 MHz
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3L-SDRAM
Maximum internal memory	8 GB
Memory slots	1
Memory slots type	SO-DIMM
Memory clock speed	1600 MHz

Storage

Specification	Value
Total storage capacity	64 GB
Storage media	SSD
Number of storage drives installed	1
Optical drive type	No

Graphics

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card model	Intel® HD Graphics 400
Maximum on-board graphics card memory	8 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	320 MHz
On-board graphics card burst frequency	640 MHz
On-board graphics card DirectX version	12.0
Number of execution units	12

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	4 W

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
Thunderbolt ports quantity	0
VGA (D-Sub) ports quantity	0

Design

Specification	Value
Product colour	Black
Housing material	Metal
Panel mounting interface	75 x 75 mm
VESA mounting	Yes
Wall mountable	Yes

Performance

Specification	Value
Product type	All-in-One PC

Software

Specification	Value
Operating system installed	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Boot	Yes
Intel Secure Boot Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	0.00
Intel Smart Connect Technology	No
Intel Smart Connect Technology version	0.00
Intel Smart Response Technology version	0.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® OS Guard	No
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	91831
Processor package size	25 x 27 mm
Thermal Monitoring Technologies	Yes
UART	Yes

Power

Specification	Value
AC adapter power	36 W

Weight & dimensions

Specification	Value
Width (with stand)	260.5 mm
Depth (with stand)	25 mm
Height (with stand)	195 mm
Weight (with stand)	1.42 kg

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-10 - 55 °C

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No

Other features

Specification	Value
Mini HDMI ports quantity	1
