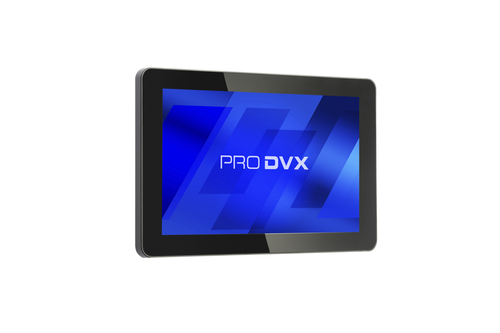

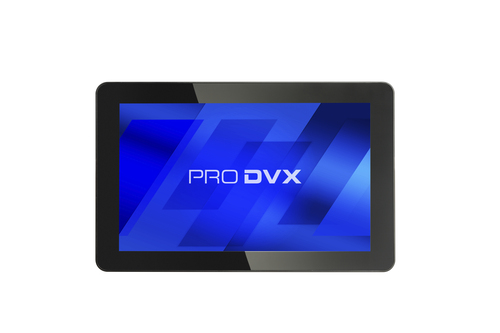

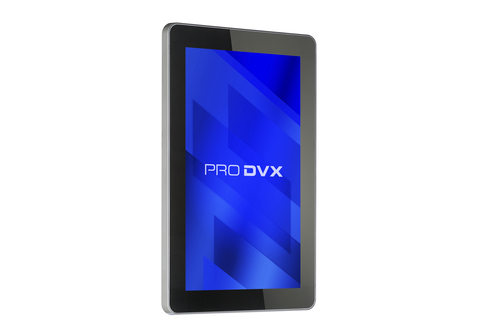

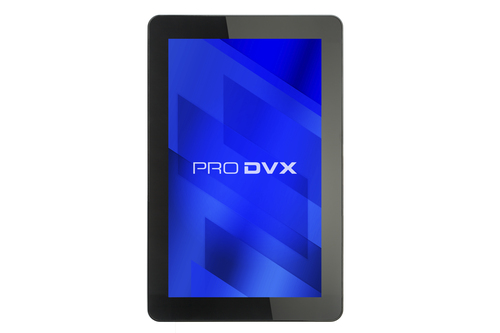

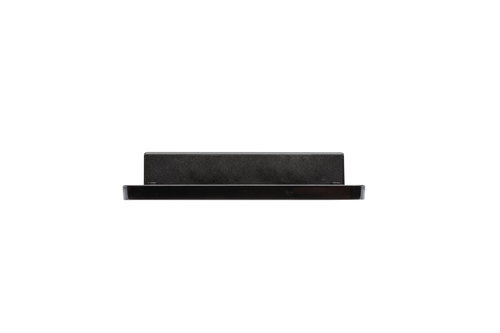

IPPC-07
Model IPPC-07Part no. 50070007.107
158 specifications
- Display17.8 cm (7")
- Resolution1024 x 600 pixels
- ProcessorIntel® Celeron® N
- Memory4 GB
- Storage64 GB
- GraphicsNot available
Overview
- Display
- 17.8 cm (7")
- Resolution
- 1024 x 600 pixels
- Processor
- Intel® Celeron® N
- Memory
- 4 GB
- Storage
- 64 GB
- Graphics
- Not available
- Brand
- ProDVX
- Category
- All-in-One PCs/Workstations
- Model
- IPPC-07
- Part number
- 50070007.107
- Also known as
- ProDVX IPPC-07
Specifications
158 specifications in 18 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 17.8 cm (7") |
| Display resolution | 1024 x 600 pixels |
| Touchscreen | Yes |
| HD type | Not supported |
| LED backlight | Yes |
| Touch technology | Multi-touch |
| Native aspect ratio | 17:10 |
| Display brightness | 240 cd/m² |
| Panel type | TFT-LCD |
| Contrast ratio (typical) | 600:1 |
| Screen shape | Flat |
| Viewing angle, horizontal | 140° |
| Viewing angle, vertical | 130° |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® N |
| Processor model | N3160 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 2.24 GHz |
| Processor frequency | 1.6 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor socket | BGA 1170 |
| Thermal Design Power (TDP) | 6 W |
| Integrated 4G WiMAX | No |
| Maximum number of PCI Express lanes | 4 |
| PCI Express configurations | 1x2+2x1, 1x4, 2x2, 4x1 |
| PCI Express slots version | 2.0 |
| Processor code | SR2KP |
| Processor codename | Braswell |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Celeron N3000 series |
| Scenario Design Power (SDP) | 4 W |
| Stepping | D1 |
| Tjunction | 90 °C |
| Conflict-Free processor | Yes |
| Maximum internal memory supported by processor | 8 GB |
| Memory types supported by processor | DDR3L-SDRAM |
| Memory clock speeds supported by processor | 1600 MHz |
| Memory channels supported by processor | Dual |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3L-SDRAM |
| Maximum internal memory | 8 GB |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 1600 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 64 GB |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics |
| Maximum on-board graphics card memory | 8 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 320 MHz |
| On-board graphics card burst frequency | 640 MHz |
| On-board graphics card DirectX version | 12.0 |
| Number of execution units | 12 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000,100,10 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |

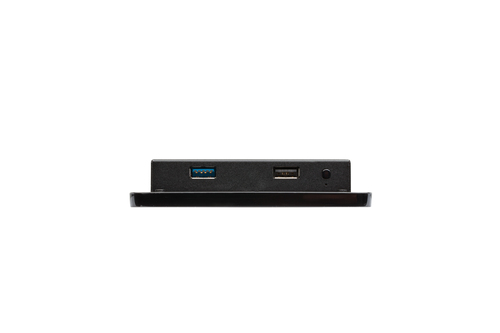

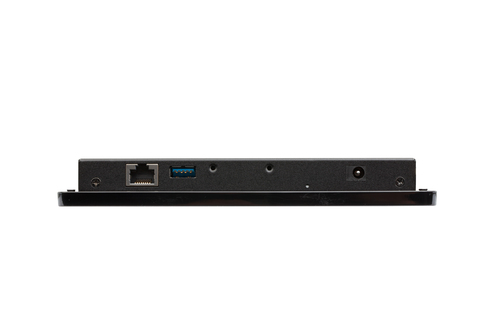

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Thunderbolt ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Audio output | Yes |
| DC-in jack | Yes |
| Micro-USB ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic, Metal |

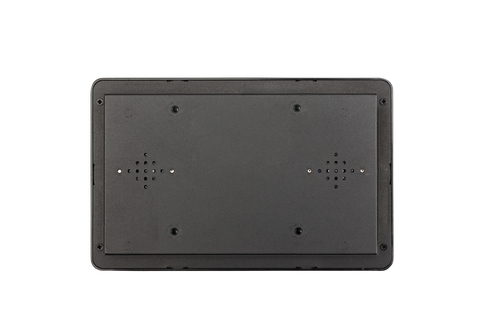

| Panel mounting interface | 75 x 48 mm |
| VESA mounting | Yes |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Product type | All-in-One PC |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Boot | Yes |
| Intel Secure Boot Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 0.00 |
| Intel Smart Connect Technology | No |
| Intel Smart Connect Technology version | 0.00 |
| Intel Smart Response Technology version | 0.00 |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® OS Guard | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Processor ARK ID | 91831 |
| Processor package size | 25 x 27 mm |
| Thermal Monitoring Technologies | Yes |
| UART | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 12 V |
| Power consumption (typical) | 11 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 188 mm |
| Depth (without stand) | 24 mm |
| Height (without stand) | 120 mm |
| Weight (without stand) | 500 g |
| Weight | 500 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE, RoHS |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| AC adapter output current | 2 A |
| Mean time between failures (MTBF) | 40000 h |
| Backlight type | Edge LED |
| Battery type | Lithium‐metal non‐rechargeable coin |
| Mini HDMI ports quantity | 1 |
