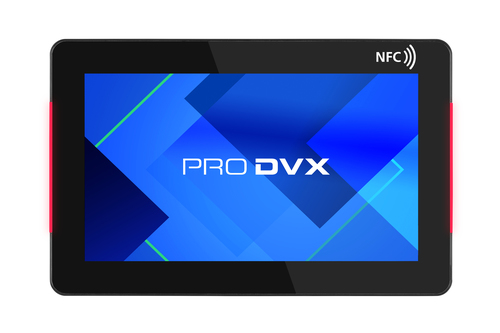

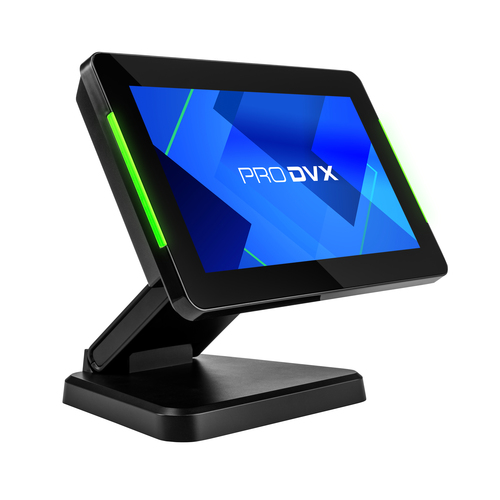

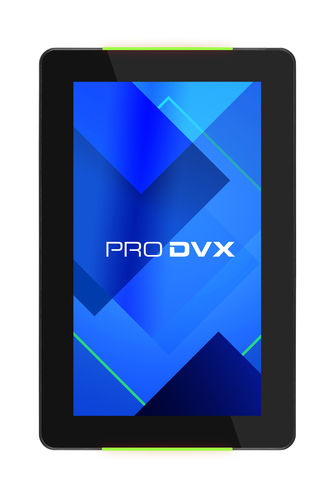

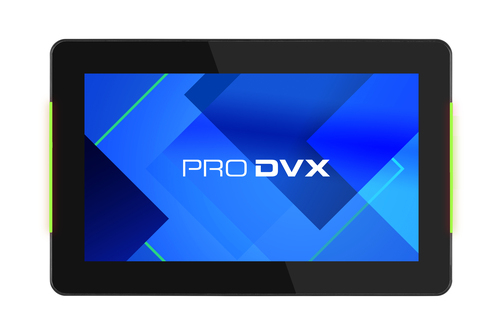

ProDVX APPC-7XPLN (R23-7281)
ProDVX

APPC-7XPLN (R23-7281)

Model APPC-7XPLN-R23Part no. 5007560EAN 2000001345283

81 specifications
  • Display17.8 cm (7")
  • Resolution1024 x 600 pixels
  • ProcessorRockchip
  • Memory4 GB
  • Storage16 GB
  • SpeedWi-Fi 5 (802.11ac)
See all specifications

Overview

Display
17.8 cm (7")
Resolution
1024 x 600 pixels
Processor
Rockchip
Memory
4 GB
Storage
16 GB
Speed
Wi-Fi 5 (802.11ac)
Brand
ProDVX
Model
APPC-7XPLN-R23
Part number
5007560
EAN / UPC
2000001345283
Also known as
ProDVX APPC-7XPLN (R23-7281)

Specifications

81 specifications in 18 groups

Display

Display diagonal17.8 cm (7")
Display resolution1024 x 600 pixels
TouchscreenYes
LED backlightYes
Touch technologyMulti-touch
Native aspect ratio17:10
Display brightness300 cd/m²
Display surfaceMatt
Panel typeTFT-LCD
Anti-glare screenYes
Contrast ratio (typical)800:1
Multi-touchYes
Viewing angle, horizontal140°
Viewing angle, vertical130°

Processor

Processor manufacturerRockchip
Processor familyRockchip
Processor modelRK3568
Processor cores4
Processor frequency2 GHz

Memory

Internal memory4 GB
Internal memory typeDDR4-SDRAM
Maximum internal memory4 GB

Storage

Total storage capacity16 GB
Storage mediaeMMC
Card reader integratedYes
Compatible memory cardsMiniSD, MicroSD (TransFlash)

Graphics

Discrete graphics cardNo
On-board GPU manufacturerARM
On-board graphics cardYes
On-board graphics card familyARM Mali
On-board graphics card modelARM Mali-G52 2EE MC2

Audio

Built-in speaker(s)Yes
Number of speakers2
RMS rated power2 W
Built-in microphoneYes
Audio formats supportedAAC, ASF, MP2, MP3, OGG, WAV, WMA

Camera

Built-in cameraNo

Network

Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standardsWi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), 802.11a
Ethernet LANYes
Ethernet LAN data rates1000,100,10 Mbit/s
BluetoothYes
Bluetooth version5.0

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity1
HDMI ports quantity0
DisplayPorts quantity1
Audio outputYes
Combo headphone/mic portYes
DC-in jackYes
Micro-USB ports quantity1

Design

Product colourBlack
Housing materialABS synthetics
Panel mounting interface75 x 75 mm
VESA mountingYes
Wall mountableYes

Performance

Product typeAll-in-One tablet PC
Placement supportedHorizontal/Vertical

Software

Operating system installedAndroid 12

Power

AC adapter output voltage12 V
Power consumption (typical)23 W

Weight & dimensions

Width (without stand)188.1 mm
Depth (without stand)25.2 mm
Height (without stand)120.3 mm
Weight (without stand)360 g
Weight360 g

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Certificates

Compliance certificatesFederal Communications Commission (FCC), CE, RoHS, REACH, UKCA

Packaging content

Cables includedNo

Other features

AC adapter output current2 A
Mean time between failures (MTBF)35000 h
Video formats supportedH.264, MP4, MPEG2, MPEG4, MPG
BacklightYes
Backlight typeEdge LED
Battery typeCR1220 Lithium metal, non rechargeable
Near Field Communication (NFC)Yes
Security featuresCable lock on power cable,Flushmount for safe installations,IEEE 802.1X PEAP/TLS/TTLS support on LAN and WiFi
