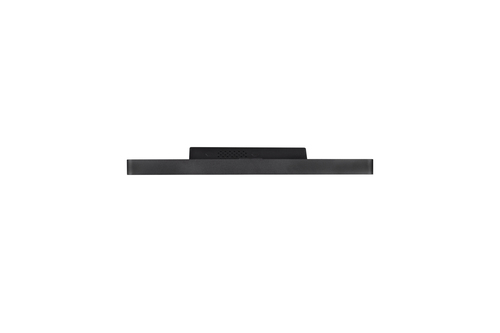

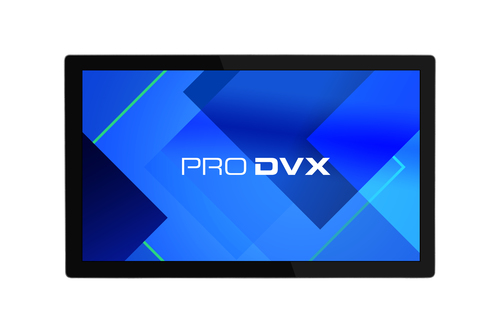

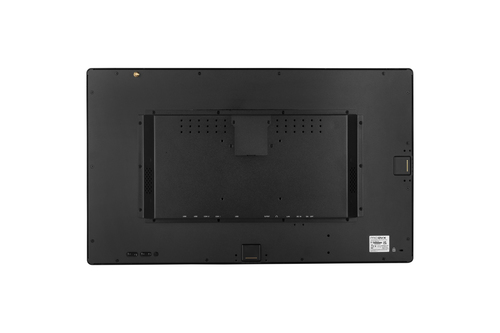

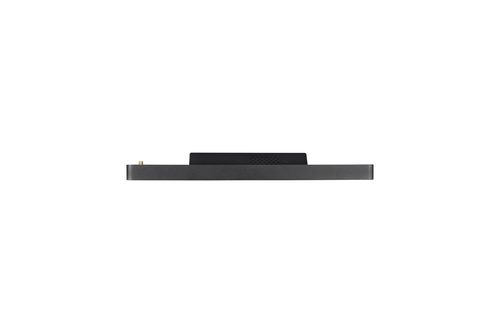

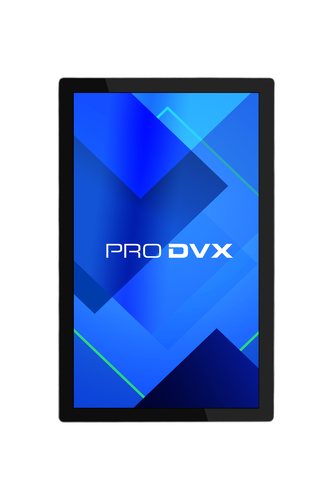

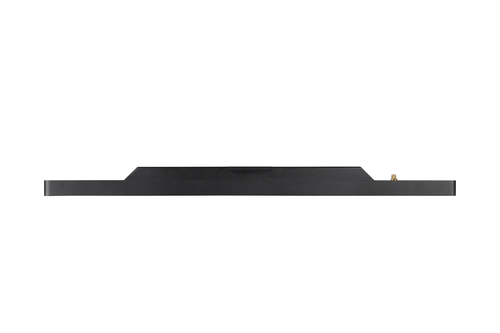

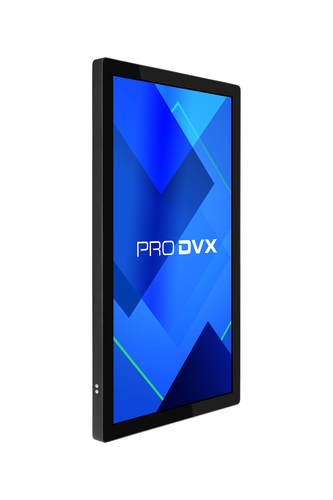

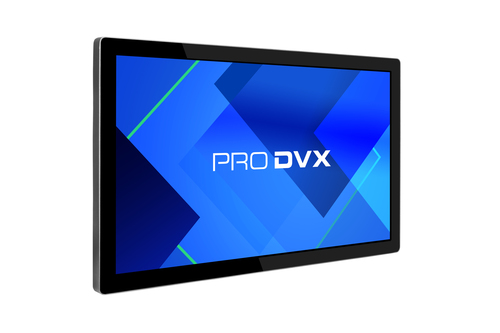

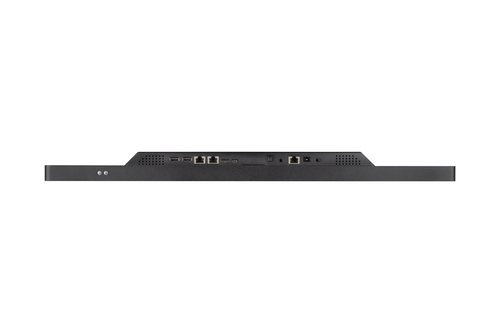

ProDVX APPC-24X (R23-7001)
ProDVX

APPC-24X (R23-7001)

Model APPC-24X-R23Part no. 5024200EAN 2000001333099

84 specifications
  • Display59.9 cm (23.6")
  • Resolution1920 x 1080 pixels
  • ProcessorRockchip
  • Memory4 GB
  • Storage16 GB
  • GraphicsNot available
See all specifications

Overview

Display
59.9 cm (23.6")
Resolution
1920 x 1080 pixels
Processor
Rockchip
Memory
4 GB
Storage
16 GB
Graphics
Not available
Brand
ProDVX
Model
APPC-24X-R23
Part number
5024200
EAN / UPC
2000001333099
Also known as
ProDVX APPC-24X (R23-7001)

Specifications

84 specifications in 19 groups

Display

Display diagonal59.9 cm (23.6")
Display resolution1920 x 1080 pixels
TouchscreenYes
HD typeFull HD
LED backlightYes
Touch technologyMulti-touch
Native aspect ratio16:9
Display brightness250 cd/m²
Display surfaceMatt
Panel typeIPS
Anti-glare screenYes
Contrast ratio (typical)1000:1
Multi-touchYes
Viewing angle, horizontal178°
Viewing angle, vertical178°

Processor

Processor manufacturerRockchip
Processor familyRockchip
Processor modelRK3399
Processor cores6

Memory

Internal memory4 GB
Internal memory typeLPDDR4-SDRAM

Storage

Total storage capacity16 GB
Storage mediaeMMC
Optical drive typeNo
Card reader integratedYes
Compatible memory cardsSD

Graphics

Discrete graphics cardNo
Discrete graphics card modelNot available
On-board GPU manufacturerARM
On-board graphics cardYes
On-board graphics card familyARM Mali
On-board graphics card modelARM Mali-T860 MP4

Audio

Built-in speaker(s)Yes
Number of speakers2
RMS rated power6 W
Audio formats supportedAAC, ASF, MP2, OGG, WAV, WMA

Camera

Built-in cameraNo

Network

Wi-FiYes
Top Wi-Fi standardWi-Fi 4 (802.11n)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n), 802.11a
Ethernet LANYes
Ethernet LAN data rates1000,100,10 Mbit/s
BluetoothYes
Bluetooth version5.0

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity2
HDMI output ports quantity1
DisplayPorts quantity1
Audio outputYes
DC-in jackYes
Micro-USB ports quantity1
S/PDIF out portYes

Design

Product colourBlack
Housing materialMetal
Cable lock slot typeKensington
Panel mounting interface100 x 100 mm
VESA mountingYes
Wall mountableYes

Performance

Product typeAll-in-One tablet PC

Software

Operating system installedAndroid 11

Power

AC adapter output voltage12 V
Power consumption (typical)60 W

Weight & dimensions

Width (without stand)575.8 mm
Depth (without stand)44 mm
Height (without stand)344.8 mm
Weight (without stand)7.21 kg
Weight7.21 kg

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 90%

Certificates

Compliance certificatesFederal Communications Commission (FCC), CE, RoHS, REACH, UKCA
CertificationFCC, CE, RoHS

Packaging content

AC adapter includedYes

Logistics data

Harmonized System (HS) code84713000

Other features

AC adapter output current5 A
Mean time between failures (MTBF)50000 h
Video formats supported3GP, ASF, AVI, DAT, FLV, MKV, MOV, MP4, MPG, RM, TS, VOB, WMV
BacklightYes
Backlight typeEdge LED
Battery typeCR1220 Lithium metal, non rechargeable
COM ports quantity2
Mini HDMI ports quantity1
Security featuresIEEE 802.1X PEAP/TLS/TTLS support on LAN and WiFi
