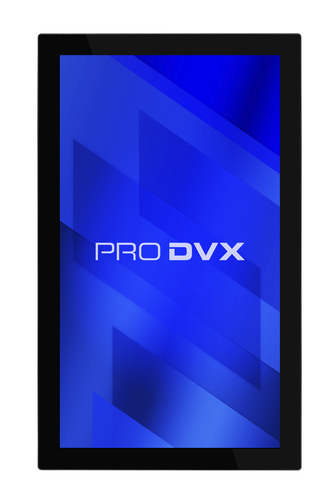

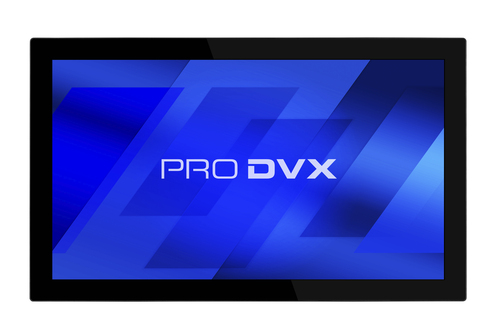

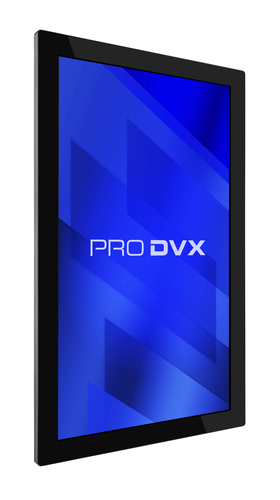

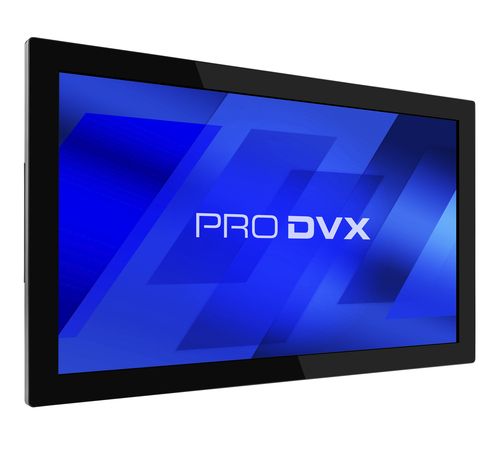

ProDVX APPC-22XP (RK3288)
ProDVX

APPC-22XP (RK3288)

Model APPC-22XPPart no. 5022110EAN 2000001168424

82 specifications
  • Display54.6 cm (21.5")
  • Resolution1920 x 1080 pixels
  • ProcessorRockchip
  • Memory2 GB
  • Storage16 GB
  • GraphicsNot available
See all specifications

Overview

Display
54.6 cm (21.5")
Resolution
1920 x 1080 pixels
Processor
Rockchip
Memory
2 GB
Storage
16 GB
Graphics
Not available
Brand
ProDVX
Model
APPC-22XP
Part number
5022110
EAN / UPC
2000001168424
Also known as
ProDVX APPC-22XP (RK3288)

Specifications

82 specifications in 19 groups

Display

Display diagonal54.6 cm (21.5")
Display resolution1920 x 1080 pixels
TouchscreenYes
HD typeFull HD
LED backlightYes
Touch technologyMulti-touch
Native aspect ratio16:9
Display brightness250 cd/m²
Panel typeIPS
Contrast ratio (typical)800:1
Multi-touchYes
Viewing angle, horizontal178°
Viewing angle, vertical178°

Processor

Processor manufacturerRockchip
Processor familyRockchip
Processor modelRK3288
Processor cores4

Memory

Internal memory2 GB
Internal memory typeDDR3-SDRAM

Storage

Total storage capacity16 GB
Storage mediaeMMC
Optical drive typeNo
Card reader integratedYes
Compatible memory cardsSD

Graphics

Discrete graphics cardNo
Discrete graphics card modelNot available
On-board GPU manufacturerARM
On-board graphics cardYes
On-board graphics card familyARM Mali
On-board graphics card modelARM Mali-T764

Audio

Built-in speaker(s)Yes
Number of speakers2
RMS rated power6 W
Built-in microphoneYes
Audio formats supportedAAC, ASF, MP2, OGG, WAV, WMA

Camera

Built-in cameraNo

Network

Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standardsWi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), 802.11a
Ethernet LANYes
Ethernet LAN data rates1000,100,10 Mbit/s
BluetoothYes
Bluetooth version4.2

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity2
HDMI output ports quantity1
HDMI ports quantity1
DisplayPorts quantity1
Audio outputYes
DC-in jackYes
Micro-USB ports quantity1
S/PDIF out portYes

Design

Product colourBlack
Housing materialPlastic

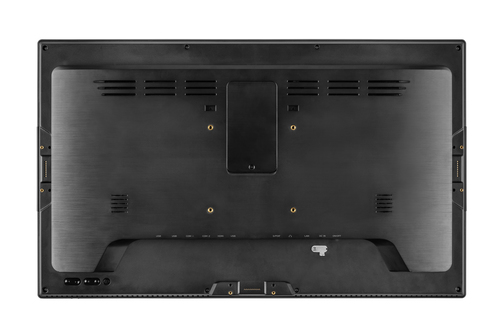

Panel mounting interface100 x 100 mm
VESA mountingYes
Wall mountableYes

Performance

Product typeAll-in-One tablet PC

Software

Operating system installedAndroid 9

Power

AC adapter output voltage12 V
Power consumption (typical)45 W

Weight & dimensions

Width (without stand)531 mm
Depth (without stand)35 mm
Height (without stand)322 mm
Weight (without stand)4.2 kg
Weight4.2 kg

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 90%

Certificates

Compliance certificatesFederal Communications Commission (FCC), CE, RoHS
CertificationFCC, CE, RoHS

Packaging content

AC adapter includedYes

Logistics data

Harmonized System (HS) code84713000

Other features

AC adapter output current5 A
Mean time between failures (MTBF)50000 h
Video formats supported3GP, ASF, AVI, DAT, FLV, MKV, MOV, MP4, MPG, RM, TS, VOB, WMV
BacklightYes
Backlight typeEdge LED
Battery typeCR1220 - Lithium‐metal non‐rechargeable coin
COM ports quantity2
Mini HDMI ports quantity1
