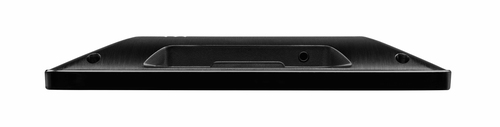

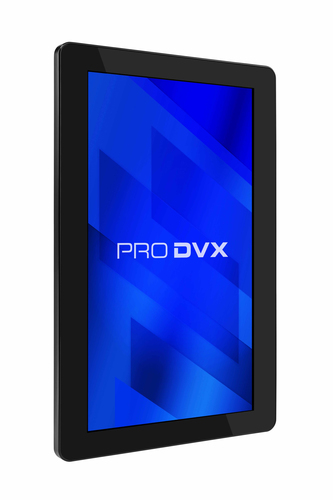

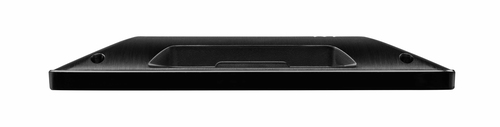

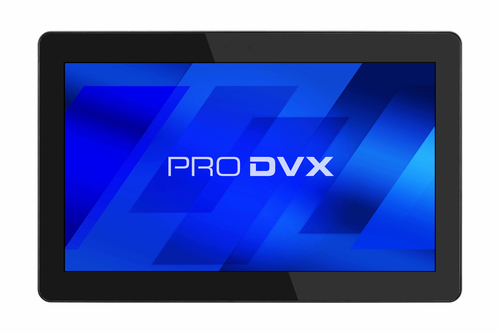

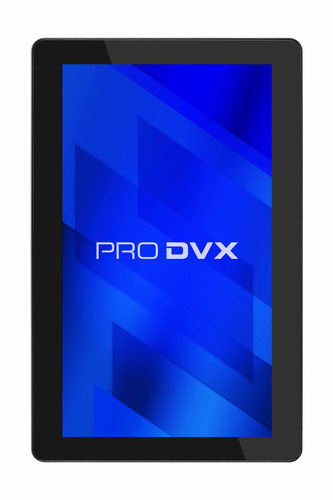

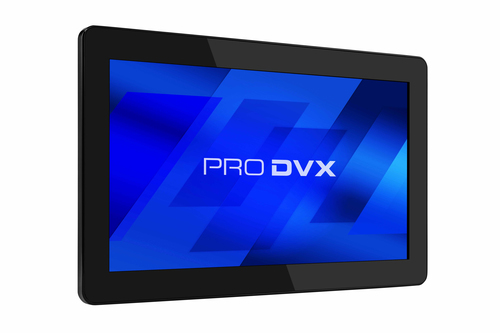

APPC-12XP
Model APPC-12XPPart no. 5012100
67 specifications
- Display29.5 cm (11.6")
- Resolution1920 x 1080 pixels
- ProcessorRockchip
- Memory2 GB
- Storage16 GB
- GraphicsNot available
Overview
- Display
- 29.5 cm (11.6")
- Resolution
- 1920 x 1080 pixels
- Processor
- Rockchip
- Memory
- 2 GB
- Storage
- 16 GB
- Graphics
- Not available
- Brand
- ProDVX
- Category
- All-in-One PCs/Workstations
- Model
- APPC-12XP
- Part numbers
- 5012100, 5012110
- Also known as
- ProDVX APPC-12XP
Specifications
67 specifications in 18 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 29.5 cm (11.6") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| Touch technology | Multi-touch |
| Native aspect ratio | 16:9 |
| Display brightness | 350 cd/m² |
| Panel type | IPS |
| Contrast ratio (typical) | 800:1 |
| Multi-touch | Yes |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Rockchip |
| Processor family | Rockchip |
| Processor model | RK3288 |
| Processor cores | 4 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 16 GB |
| Storage media | Flash |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | ARM |
| On-board graphics card | Yes |
| On-board graphics card model | ARM Mali-T764 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |

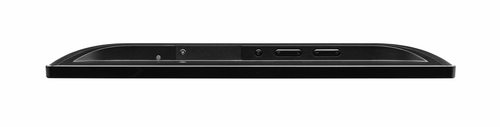

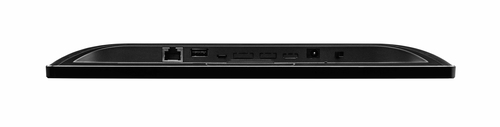

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 1 |
| Audio output | Yes |
| DC-in jack | Yes |
| Micro-USB ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic |

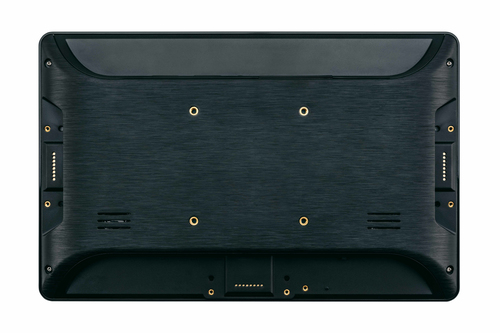

| Panel mounting interface | 75 x 75 mm |
| VESA mounting | Yes |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Product type | All-in-One tablet PC |
Software
| Specification | Value |
|---|---|
| Operating system installed | Android 9 |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 295.8 mm |
| Depth (without stand) | 26 mm |
| Height (without stand) | 189.6 mm |
| Weight (without stand) | 900 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, RoHS |
Packaging content
| Specification | Value |
|---|---|
| Cables included | No |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84713000 |
Other features
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 45000 h |
| Backlight | Yes |
| Backlight type | Edge LED |
