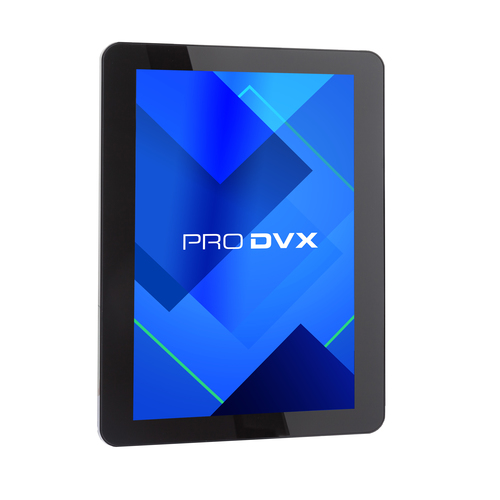

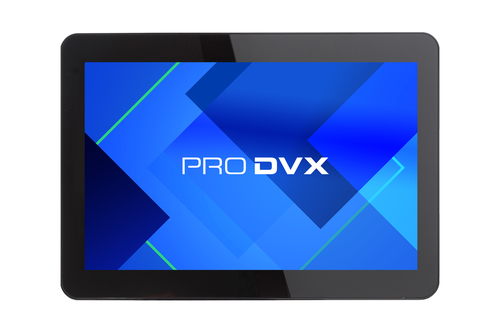

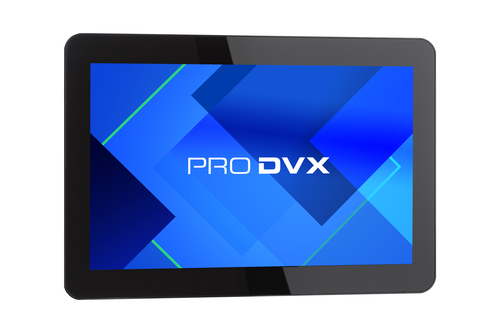

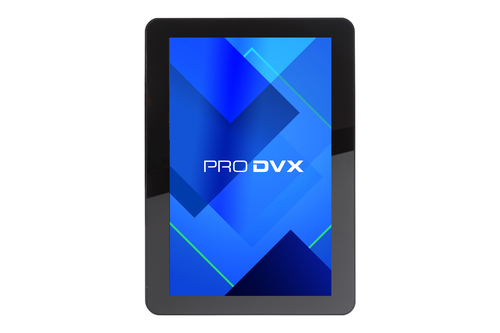

ProDVX APPC-10XP (R23-7221)
ProDVX

APPC-10XP (R23-7221)

Model APPC-10XP-R23Part no. 5010610

81 specifications
  • Display25.6 cm (10.1")
  • Resolution1280 x 800 pixels
  • ProcessorRockchip
  • Memory4 GB
  • Storage16 GB
  • GraphicsNot available
See all specifications

Overview

Display
25.6 cm (10.1")
Resolution
1280 x 800 pixels
Processor
Rockchip
Memory
4 GB
Storage
16 GB
Graphics
Not available
Brand
ProDVX
Model
APPC-10XP-R23
Part number
5010610
Also known as
ProDVX APPC-10XP (R23-7221)

Specifications

81 specifications in 18 groups

Display

Display diagonal25.6 cm (10.1")
Display resolution1280 x 800 pixels
TouchscreenYes
HD typeHD
LED backlightYes
Touch technologyMulti-touch
Native aspect ratio16:10
Display brightness500 cd/m²
Display surfaceMatt
Panel typeIPS
Anti-glare screenYes
Contrast ratio (typical)800:1
Multi-touchYes
Viewing angle, horizontal160°
Viewing angle, vertical160°

Processor

Processor manufacturerRockchip
Processor familyRockchip
Processor modelRK3568
Processor cores4
Processor frequency2 GHz

Memory

Internal memory4 GB
Internal memory typeDDR4-SDRAM

Storage

Total storage capacity16 GB
Storage mediaeMMC
Card reader integratedYes
Compatible memory cardsSD

Graphics

Discrete graphics cardNo
Discrete graphics card modelNot available
On-board GPU manufacturerARM
On-board graphics cardYes
On-board graphics card familyARM Mali
On-board graphics card modelArm Mali-G52

Audio

Built-in speaker(s)Yes
Number of speakers2
RMS rated power4 W
Built-in microphoneYes
Audio formats supportedAAC, ASF, MP2, OGG, WAV, WMA

Camera

Built-in cameraNo

Network

Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standardsWi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), 802.11a
Ethernet LANYes
Ethernet LAN data rates1000,100,10 Mbit/s
BluetoothYes
Bluetooth version5.0

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity1
HDMI output ports quantity1
HDMI ports quantity1
DisplayPorts quantity1
Audio outputYes
DC-in jackYes
Micro-USB ports quantity1

Design

Product colourBlack
Housing materialABS synthetics
Panel mounting interface75 x 75 mm
VESA mountingYes
Wall mountableYes

Performance

Product typeAll-in-One tablet PC

Software

Operating system installedAndroid 12

Power

AC adapter output voltage12 V
Power consumption (typical)23 W

Weight & dimensions

Width (without stand)255.3 mm
Depth (without stand)26.7 mm
Height (without stand)181 mm
Weight (without stand)650 g
Weight650 g

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 90%

Certificates

Compliance certificatesFederal Communications Commission (FCC), CE, RoHS, REACH, UKCA

Packaging content

AC adapter includedNo
Cables includedNo

Other features

AC adapter output current2 A
Mean time between failures (MTBF)50000 h
Video formats supported3GP, ASF, AVI, DAT, FLV, MKV, MOV, MP4, MPG, RM, TS, VOB, WMV
BacklightYes
Backlight typeEdge LED
Battery typeCR1220 Lithium metal, non rechargeable
Security featuresCable lock on power cable,Flushmount for safe installations,IEEE 802.1X PEAP/TLS/TTLS support on LAN and WiFi
