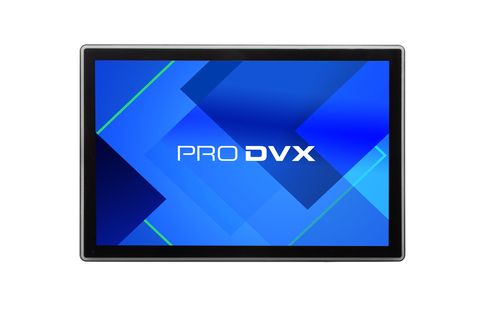

APPC-10SFN (R25-7281)
Model APPC-10SFN (R25-7281)Part no. 5010730
83 specifications
- Display25.6 cm (10.1")
- Resolution1280 x 800 pixels
- ProcessorRockchip
- Memory4 GB
- Storage16 GB
- GraphicsNot available
Overview
- Display
- 25.6 cm (10.1")
- Resolution
- 1280 x 800 pixels
- Processor
- Rockchip
- Memory
- 4 GB
- Storage
- 16 GB
- Graphics
- Not available
- Brand
- ProDVX
- Category
- All-in-One PCs/Workstations
- Model
- APPC-10SFN (R25-7281)
- Part number
- 5010730
- Also known as
- ProDVX APPC-10SFN (R25-7281)
Specifications
83 specifications in 19 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1280 x 800 pixels |
| Touchscreen | Yes |
| HD type | HD |
| LED backlight | Yes |
| Touch technology | Multi-touch |
| Native aspect ratio | 16:10 |
| Display brightness | 450 cd/m² |
| Panel type | IPS |
| Anti-glare screen | Yes |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Rockchip |
| Processor family | Rockchip |
| Processor model | RK3568 |
| Processor cores | 4 |
| Processor frequency | 2 GHz |
Neural processor unit (NPU)
| Specification | Value |
|---|---|
| Neural processor unit (NPU) | RockChip NPU |
| AI datatype support on NPU | BFP16, FP16, INT16, Int8 |
| AI software frameworks supported by NPU | Android NN, Caffe, Onnx, Pytorch, TensorFlow, Tflite |
| NPU performance up to | 1 TOPs |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | LPDDR4-SDRAM |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 16 GB |
| Storage media | eMMC |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | ARM |
| On-board graphics card | Yes |
| On-board graphics card family | ARM Mali |
| On-board graphics card model | Arm Mali-G52 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in microphone | Yes |
| Audio formats supported | AAC, ASF, MP2, OGG, WAV, WMA |
Camera
| Specification | Value |
|---|---|
| Built-in camera | No |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Wi-Fi ready | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000,100,10 Mbit/s |
| Bluetooth | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB4 Gen 3x2 ports quantity | 0 |
| HDMI ports quantity | 1 |
| Audio output | Yes |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | ABS synthetics |
| Panel mounting interface | 75 x 75 mm |
| VESA mounting | Yes |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Product type | All-in-One PC |
Software
| Specification | Value |
|---|---|
| Operating system installed | Android 13 |
Brand-specific features
| Specification | Value |
|---|---|
| Brand specific technologies | AI-Q Engine, ClearFrame Design, FusionTouch Technology, ProSecure, SLB-Lumi Technology |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 15 V |
| Power consumption (typical) | 23 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 240.9 mm |
| Depth (without stand) | 24.4 mm |
| Height (without stand) | 159.7 mm |
| Weight (without stand) | 600 g |
| Weight | 600 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE, RoHS, REACH, UKCA |
Other features
| Specification | Value |
|---|---|
| AC adapter output current | 2 A |
| Mean time between failures (MTBF) | 50000 h |
| Video formats supported | H.264, MP4, MPEG2, MPEG4, MPG |
| Backlight type | Edge LED |
| Battery type | CR1220 Lithium metal, non rechargeable |
| Mini HDMI ports quantity | 1 |
| Near Field Communication (NFC) | Yes |
