IPPC-22-6300 (R26-6300)
Model 6022200
71 specifications
- Display54.6 cm (21.5")
- Resolution1920 x 1080 pixels
- ProcessorN150
- Memory8 GB
- Storage128 GB
- GraphicsNot available
Overview
- Display
- 54.6 cm (21.5")
- Resolution
- 1920 x 1080 pixels
- Processor
- N150
- Memory
- 8 GB
- Storage
- 128 GB
- Graphics
- Not available
- Brand
- ProDVX
- Category
- All-in-One PCs/Workstations
- Model
- 6022200
- Part number
- 6022200
- Also known as
- ProDVX IPPC-22-6300 (R26-6300)
Specifications
71 specifications in 18 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| LED backlight | Yes |
| Touch technology | Multi-touch |
| Native aspect ratio | 16:9 |
| Display brightness | 250 cd/m² |
| Panel type | IPS |
| Anti-glare screen | No |
| Contrast ratio (typical) | 3000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor model | N150 |
| Processor cores | 4 |
| Processor boost frequency | 3.6 GHz |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR5-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 128 GB |
| Storage media | SSD |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 6 W |
| Audio formats supported | AAC, MP3, WMA |
Camera
| Specification | Value |
|---|---|
| Built-in camera | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000,100,10 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Audio output | Yes |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | ABS synthetics |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Product type | All-in-One PC |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 IoT Enterprise LTSC |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 12 V |
| Power consumption (typical) | 70 W |

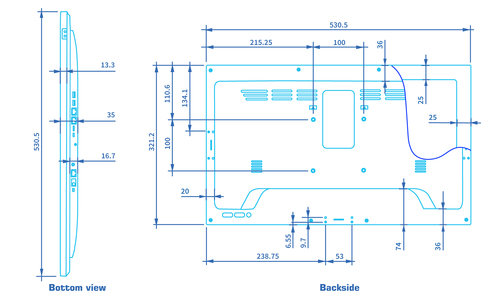

Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 530.5 mm |
| Depth (without stand) | 35 mm |
| Height (without stand) | 321.2 mm |
| Weight (without stand) | 4.2 kg |
| Weight | 4.2 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE, RoHS, REACH, UKCA |
| Certification | UKCA, CE, FCC, RoHS, REACH |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| AC adapter output current | 5 A |
| Mean time between failures (MTBF) | 50000 h |
| Video formats supported | AVI, MKV, MP4 |
| Audio input | 3.5 mm |
| Backlight type | Edge LED |
| Battery type | CR2032 Lithium metal, non rechargeable |
| Mini HDMI ports quantity | 1 |
