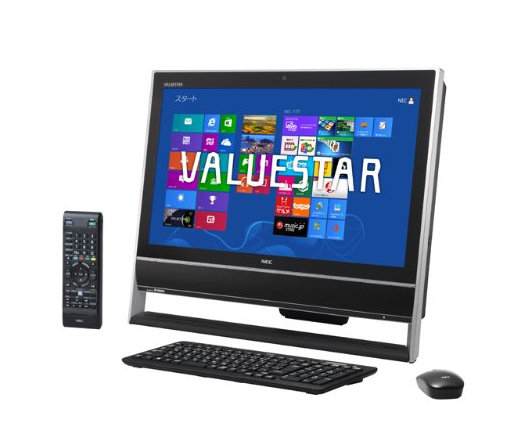

NEC Valuestar N

Model Valuestar NPart no. PC-VN770LS1YB

143 specifications

Display54.6 cm (21.5")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage2 TB
GraphicsNot available

See all specifications

Overview

Display: 54.6 cm (21.5")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 2 TB
Graphics: Not available

Brand: NEC
Category: All-in-One PCs/Workstations
Model: Valuestar N
Part numbers: PC-VN770LS1YB, PC-VN370LS6W
Also known as: NEC Valuestar N Intel® Core™ i7 i7-3630QM 54.6 cm (21.5") 1920 x 1080 pixels All-in-One PC 8 GB DDR3-SDRAM 2 TB HDD Windows 8 Black

Specifications

143 specifications in 19 groups

Display

Specification	Value
Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Full HD	Yes
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	3rd gen Intel® Core™ i7
Processor model	i7-3630QM
Processor cores	4
Processor threads	8
Processor boost frequency	3.4 GHz
Processor frequency	2.4 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	PGA988
System bus rate	5 GT/s
64-bit computing	Yes
Thermal Design Power (TDP)	45 W
Bus type	DMI
CPU multiplier (bus/core ratio)	24
FSB Parity	No
Integrated 4G WiMAX	Yes
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Processor code	SR0UX
Processor codename	Ivy Bridge
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-3600 Mobile series
Stepping	E1
Tjunction	105 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	16 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory layout (slots x size)	1 x 8 GB

Storage

Specification	Value
Total storage capacity	2 TB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD interface	SATA
Optical drive type	Blu-Ray DVD Combo
Card reader integrated	Yes
Compatible memory cards	MS Duo, MS Pro-HG Duo, SD, SDHC, SDXC

Graphics

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4000
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card ID	0x166

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	6 W
Built-in microphone	Yes
Audio system	Waves MaxxAudio 4

Camera

Specification	Value
Built-in camera	Yes

Optical drive

Specification	Value
Optical drive interface	SATA

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Thunderbolt ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Microphone in	Yes

Design

Specification	Value
Product colour	Black

Performance

Specification	Value
Product type	All-in-One PC

Software

Specification	Value
Operating system installed	Windows 8
Operating system architecture	64-bit
Bundled software	Office Home/Business 2013

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Smart Connect Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Rapid Start Technology	No
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Cache	Yes
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	71459
Processor package size	37.5 x 37.5 (rPGA988B)
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes

Power

Specification	Value
AC adapter frequency	50/60 Hz

Weight & dimensions

Specification	Value
Width (with stand)	534 mm
Depth (with stand)	225 mm
Height (with stand)	440 mm
Weight (with stand)	10.4 kg

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80%

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Remote control included	Yes

Other features

Specification	Value
Storage drive interface	Serial ATA
TV tuner integrated	Yes
