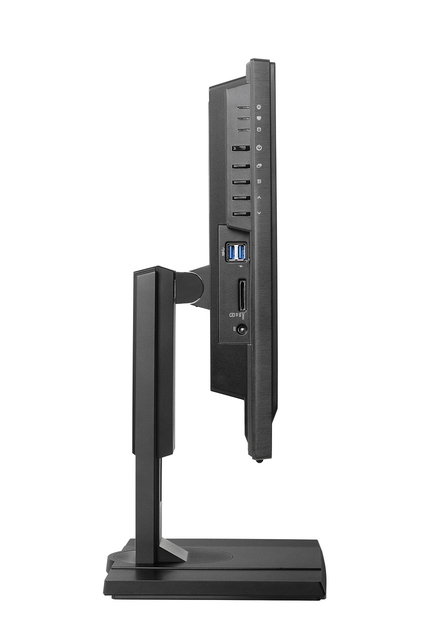

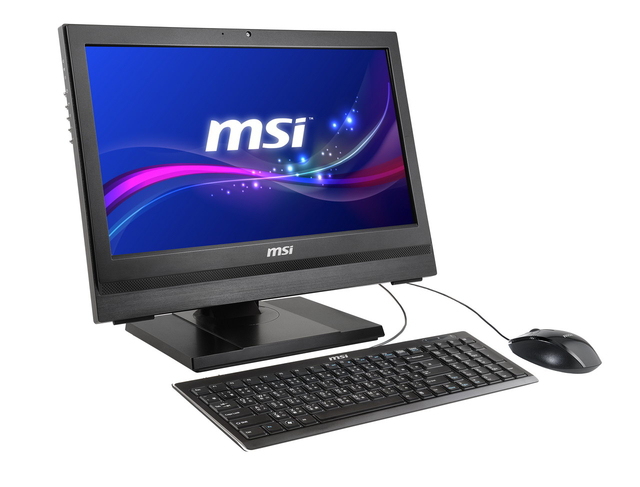

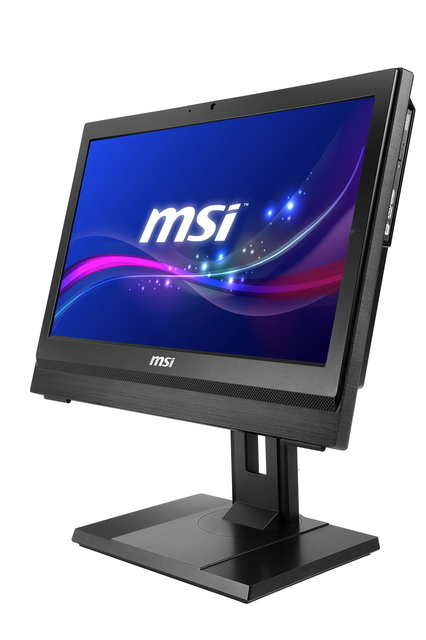

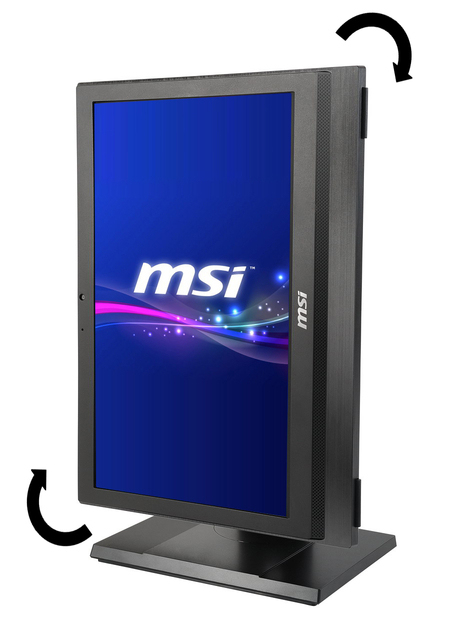

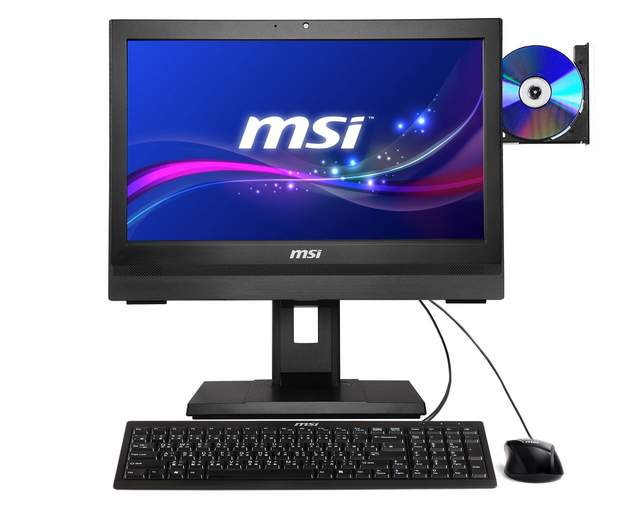

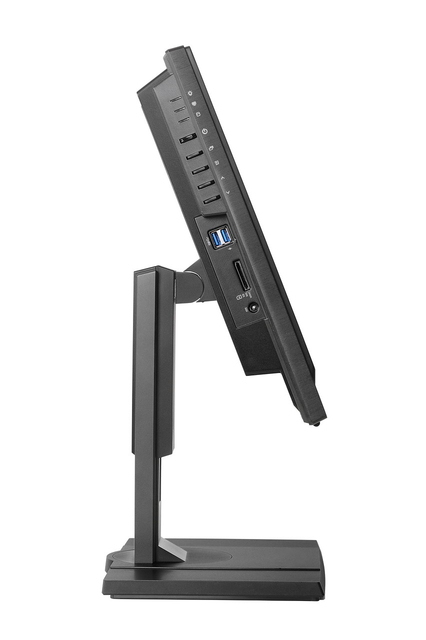

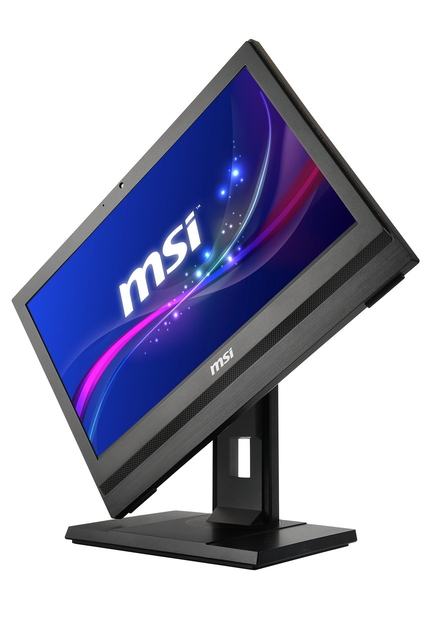

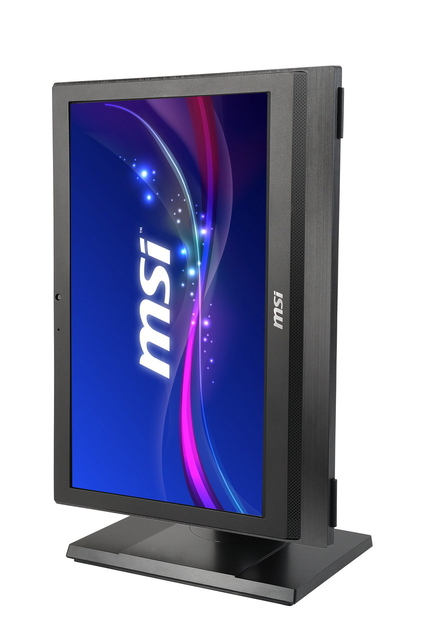

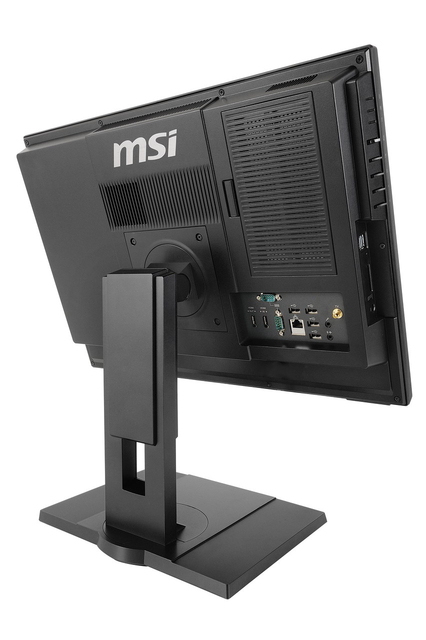

Wind Top AP2011

Model Wind Top AP2011Part no. AP2011-094BEEAN 4719072274412

127 specifications

Overview

Brand: MSI
Category: All-in-One PCs/Workstations
Model: Wind Top AP2011
Part numbers: AP2011-094BE, AP2011-091NE, AP2011-093HU, AP2011-026NL, 9S6-AA7111-015, AP2011-EU-WG6304G50S7VM +1 more
EAN / UPC: 4719072274412, 4719072278656, 4719072272968, 4719072275099 +1 more
Also known as: MSI Wind Top AP2011 Intel® Pentium® G620 50.8 cm (20") 1600 x 900 pixels Touchscreen 2 GB DDR3-SDRAM 500 GB Windows 7 Home Premium Black

127 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	G620
Processor cores	2
Processor threads	2
Processor frequency	2.6 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	LGA 1155 (Socket H2)
System bus rate	5 GT/s
Thermal Design Power (TDP)	65 W
Bus type	DMI
CPU multiplier (bus/core ratio)	26
PCI Express slots version	2.0
Processor code	SR05R
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Pentium G600 Series for Desktop
Stepping	Q0
Tcase	69.1 °C
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066 MHz
Memory bandwidth supported by processor (max)	17 GB/s
Memory channels supported by processor	Dual

Specification	Value
Total storage capacity	500 GB
Number of HDDs installed	1
HDD capacity	500 GB
HDD speed	7200 RPM
HDD size	3.5"
HDD interface	SATA II
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), miniSD, MMC, MS PRO, SD, xD

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1100 MHz

Specification	Value
Built-in microphone	Yes

Specification	Value
Built-in camera	Yes

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	2
VGA (D-Sub) ports quantity	0
DVI port	No
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
Firewire (IEEE 1394) ports	0
Mini PCI Express slots	2
PS/2 ports quantity	0
Serial ports quantity	0

Specification	Value
Motherboard chipset	Intel® H61

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	53480
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-20 - 60 °C

Specification	Value
Certification	UL, CB; EMC: CE, FCC, CCC, BSMI, GOST, TUV, KCC

Specification	Value
Graphics card family	Intel
COM ports quantity	2
Cabling technology	10/100/1000Base-T(X)
Chassis type	All-in-One
Display included	Yes
Megapixel (approx.)	0.3 MP
Networking features	Gigabit Ethernet, WLAN
Number of processors installed	1
Parallel ports quantity	0
Power supply	90 W
Speakers	Yes
