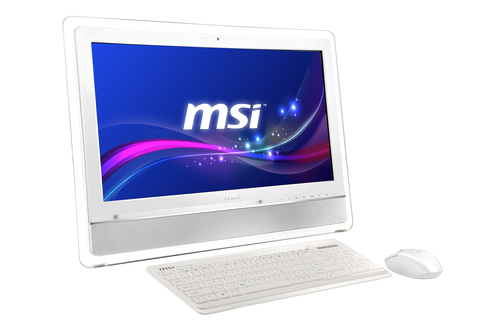

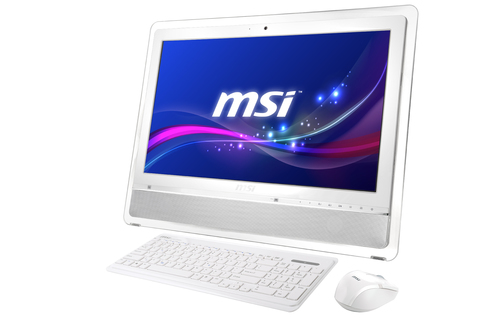

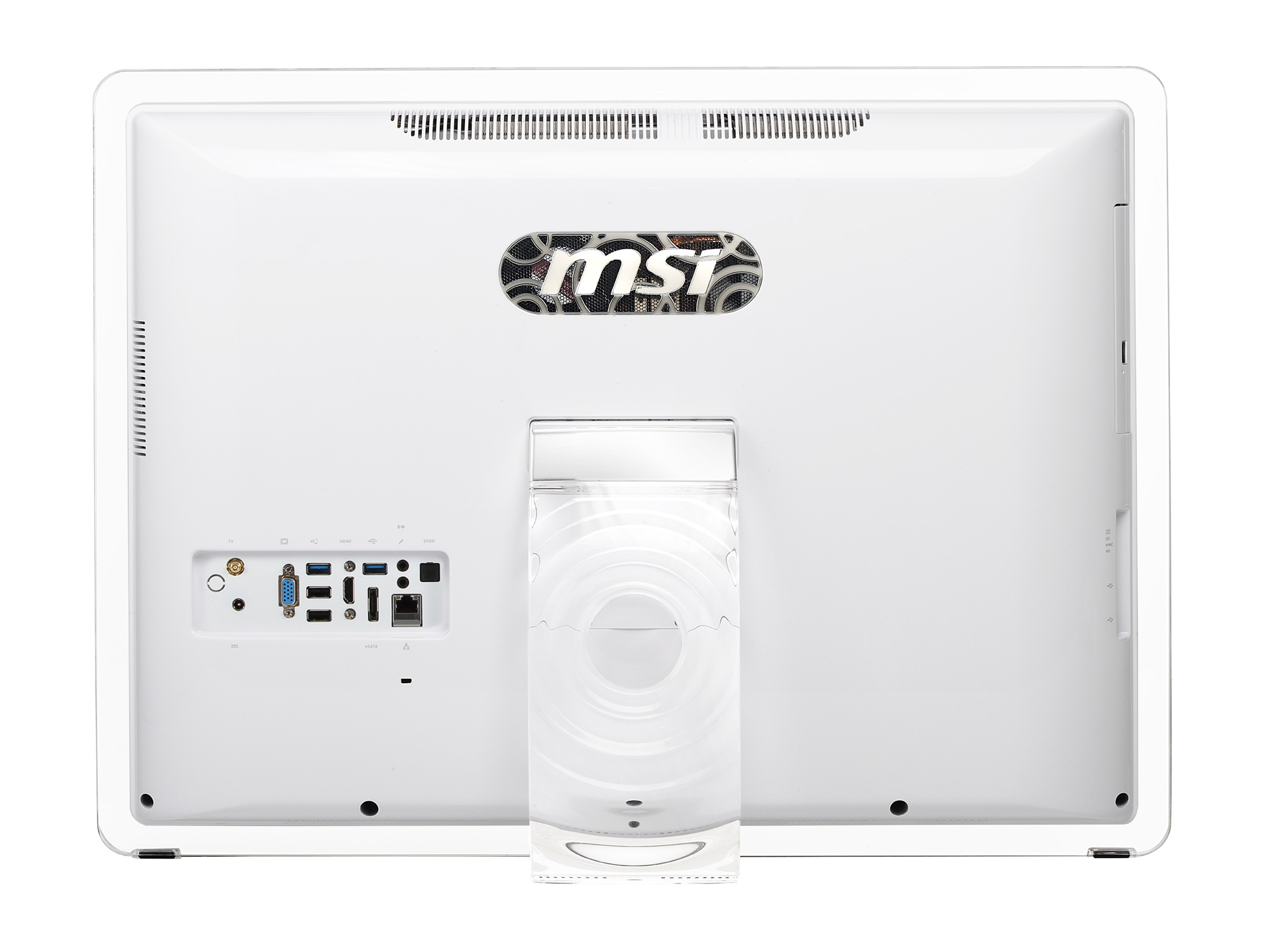

Wind Top AE2410G-262EU

Model Wind Top AE2410G-262EUPart no. AE2410G-262EUEAN 4719072293185

139 specifications

Overview

Brand: MSI
Category: All-in-One PCs/Workstations
Model: Wind Top AE2410G-262EU
Part number: AE2410G-262EU
EAN / UPC: 4719072293185
Also known as: MSI Wind Top AE2410G-262EU Intel® Core™ i5 i5-2450M 59.9 cm (23.6") 1920 x 1080 pixels Touchscreen All-in-One PC 8 GB DDR3-SDRAM 1 TB HDD NVIDIA® GeForce® GT 63

139 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	2nd gen Intel® Core™ i5
Processor model	i5-2450M
Processor cores	2
Processor threads	4
Processor boost frequency	3.1 GHz
Processor frequency	2.5 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
System bus rate	5 GT/s
Thermal Design Power (TDP)	35 W
Bus type	DMI
CPU multiplier (bus/core ratio)	25
FSB Parity	No
Integrated 4G WiMAX	Yes
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	2.0
Processor code	SR04Z
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-2400 Mobile Series
Stepping	J1
Tjunction	100 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21.3 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD interface	SATA II
Optical drive type	Blu-Ray DVD Combo
Card reader integrated	Yes

Specification	Value
Discrete graphics card model	NVIDIA® GeForce® GT 630M
Discrete graphics card memory	2 GB
Discrete graphics memory type	GDDR3
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 3000
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1300 MHz
On-board graphics card ID	0x116

Specification	Value
Built-in camera	Yes
Total megapixels	1.3 MP

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
Mini PCI Express slots	2
eSATA ports quantity	1
S/PDIF out port	Yes

Specification	Value
Product colour	White
Wall mountable	Yes

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel H65 Express

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	32 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	53452
Processor package size	37.5x37.5 (rPGA988B); 31 x 24 (BGA1023)
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
