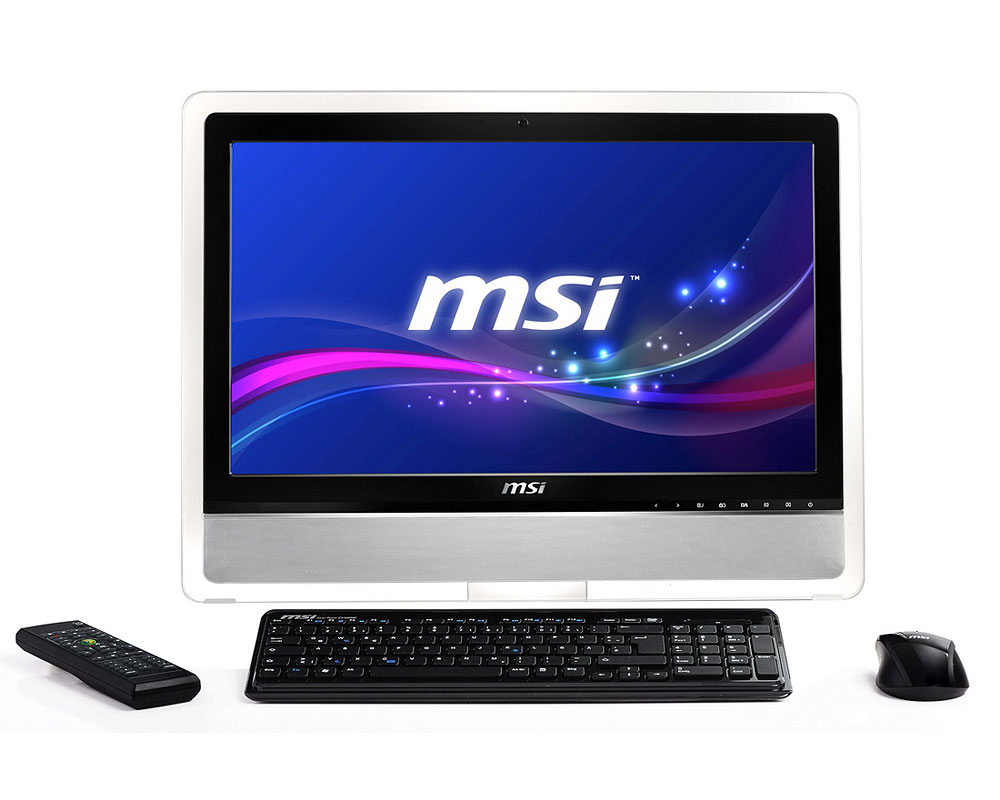

Wind Top AE2410-087FR

Model Wind Top AE2410-087FRPart no. AE2410-087FREAN 4719072255381

133 specifications

Overview

Brand: MSI
Category: All-in-One PCs/Workstations
Model: Wind Top AE2410-087FR
Part number: AE2410-087FR
EAN / UPC: 4719072255381
Also known as: MSI Wind Top AE2410-087FR Intel® Pentium® B960 59.9 cm (23.6") 1920 x 1080 pixels Touchscreen 4 GB DDR3-SDRAM 500 GB HDD NVIDIA® GeForce® GT 540M Windows 7 Home

133 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	B960
Processor cores	2
Processor threads	2
Processor frequency	2.2 GHz
Processor cache	2 MB
Processor cache type	L3
Processor socket	Socket 988
System bus rate	5 GT/s
Thermal Design Power (TDP)	35 W
Bus type	DMI
CPU multiplier (bus/core ratio)	22
FSB Parity	No
Integrated 4G WiMAX	No
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	2.0
Processor code	SR07V
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Pentium B900 Series for Mobile
Stepping	Q0
Tjunction	85 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21.3 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD interface	SATA
Optical drive type	DVD Super Multi
Card reader integrated	Yes

Specification	Value
Discrete graphics card model	NVIDIA® GeForce® GT 540M
Discrete graphics card memory	1 GB
Discrete graphics memory type	GDDR3
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1100 MHz

Specification	Value
Built-in camera	Yes
Total megapixels	1.3 MP

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
Mini PCI Express slots	2
eSATA ports quantity	1
S/PDIF out port	Yes

Specification	Value
Product colour	Black
Wall mountable	Yes

Specification	Value
Motherboard chipset	Intel® HM65 Express

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	32 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	59836
Processor package size	37.5x37.5 (rPGA988B)
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
