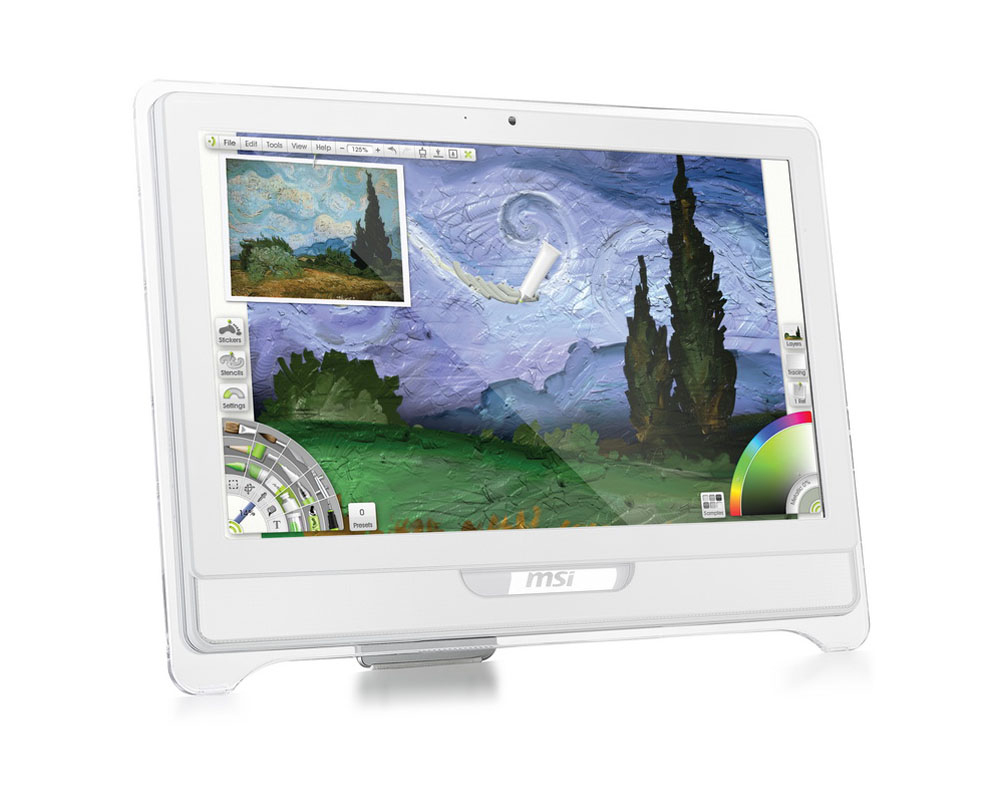

MSI Wind Top AE2240-019NE

Wind Top AE2240-019NE

Model Wind Top AE2240-019NEPart no. AE2240-019NE

71 specifications

Display54.6 cm (21.5")
Resolution1920 x 1080 pixels
Memory4 GB
Storage640 GB
GraphicsIntel® GMA HD
OSWindows 7 Home Premium

See all specifications

Overview

Display: 54.6 cm (21.5")
Resolution: 1920 x 1080 pixels
Memory: 4 GB
Storage: 640 GB
Graphics: Intel® GMA HD
OS: Windows 7 Home Premium

Brand: MSI
Category: All-in-One PCs/Workstations
Model: Wind Top AE2240-019NE
Part number: AE2240-019NE
Also known as: MSI Wind Top AE2240-019NE 54.6 cm (21.5") 1920 x 1080 pixels Touchscreen 4 GB DDR3-SDRAM 640 GB Intel® GMA HD Windows 7 Home Premium White

Specifications

71 specifications in 16 groups

Display

Specification	Value
Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Touch technology	Multi-touch
Native aspect ratio	16:9
Display brightness	300 cd/m²
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	160°
Viewing angle, vertical	150°

Processor

Specification	Value
Processor cores	2
Processor frequency	2.13 GHz
Processor cache	3 MB
Processor cache type	L3

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
Memory clock speed	1066 MHz
Memory layout (slots x size)	2 x 2 GB

Storage

Specification	Value
Total storage capacity	640 GB
HDD speed	7200 RPM
HDD interface	SATA II
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), miniSD, MMC, SD, xD

Graphics

Specification	Value
Discrete graphics card model	Intel® GMA HD
On-board graphics card	Yes

Audio

Specification	Value
Built-in microphone	Yes

Camera

Specification	Value
Built-in camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
DVI port	No
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
Firewire (IEEE 1394) ports	0
PS/2 ports quantity	0
Serial ports quantity	0
eSATA ports quantity	1
S/PDIF out port	Yes

Design

Specification	Value
Product colour	White
Cable lock slot	Yes
Cable lock slot type	Kensington

Performance

Specification	Value
Motherboard chipset	Intel® HM55 Express

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit

Weight & dimensions

Specification	Value
Width (with stand)	554.1 mm
Depth (with stand)	62.5 mm
Height (with stand)	403.5 mm
Weight (with stand)	8.4 kg

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-20 - 60 °C

Certificates

Specification	Value
Acoustic pressure emissions	20.9 dB

Other features

Specification	Value
Graphics card family	Intel
Audio output channels	5.1 channels
Cabling technology	10/100/1000Base-T(X)
Chassis type	All-in-One
Display	Full HD
Display included	Yes
Networking features	Gigabit Ethernet, WLAN
Number of processors installed	1
Parallel ports quantity	0
Power supply	90 W
Speakers	2 x 3W
Expansion slots	2 x mini PCI-E
