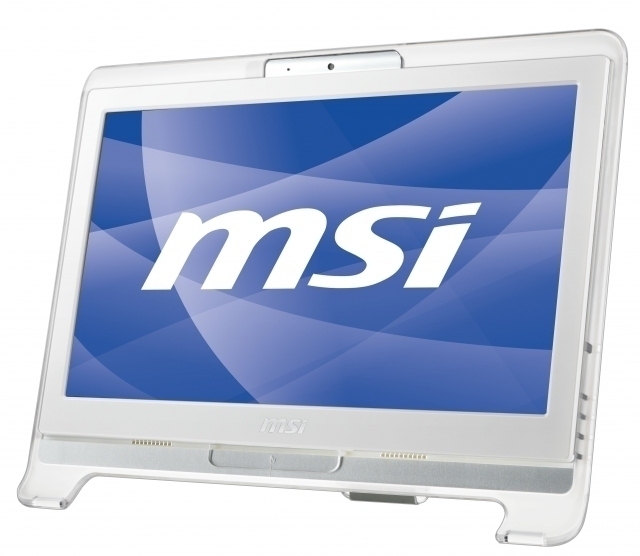

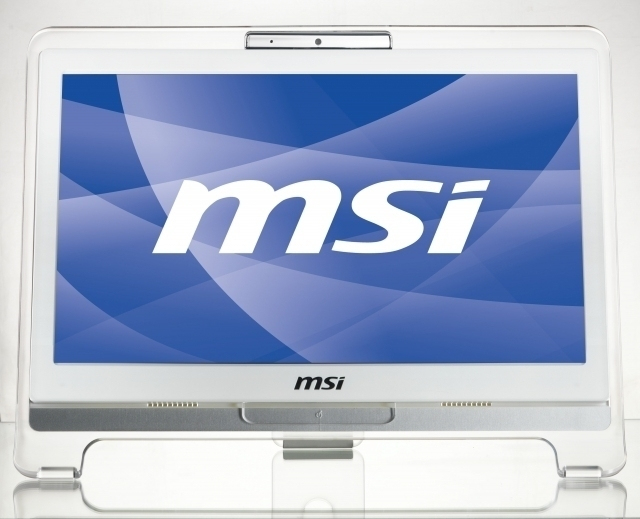

Wind Top AE1900
Model Wind Top AE1900Part no. WIND TOP AE1900 -01BEAN 4719072109059
48 specifications
- Display47 cm (18.5")
- Resolution1366 x 768 pixels
- ProcessorIntel Atom®
- Memory1 GB
- Storage160 GB
- GraphicsIntel® GMA 950
Overview
- Display
- 47 cm (18.5")
- Resolution
- 1366 x 768 pixels
- Processor
- Intel Atom®
- Memory
- 1 GB
- Storage
- 160 GB
- Graphics
- Intel® GMA 950
- Brand
- MSI
- Category
- All-in-One PCs/Workstations
- Model
- Wind Top AE1900
- Part numbers
- WIND TOP AE1900 -01B, WIND TOP AE1900 -01BE
- EAN / UPC
- 4719072109059
- Also known as
- MSI Wind Top AE1900 Intel Atom® 47 cm (18.5") 1366 x 768 pixels 1 GB DDR2-SDRAM 160 GB Intel® GMA 950 White
Specifications
48 specifications in 11 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 47 cm (18.5") |
| Display resolution | 1366 x 768 pixels |
| HD type | Not supported |
| Native aspect ratio | 16:9 |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor frequency | 1.6 GHz |
| Processor cache | 0.512 MB |
| Processor cache type | L2 |
| Processor front side bus | 533 MHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Internal memory type | DDR2-SDRAM |
| Memory clock speed | 533 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 160 GB |
| Number of HDDs installed | 1 |
| HDD interface | SATA |

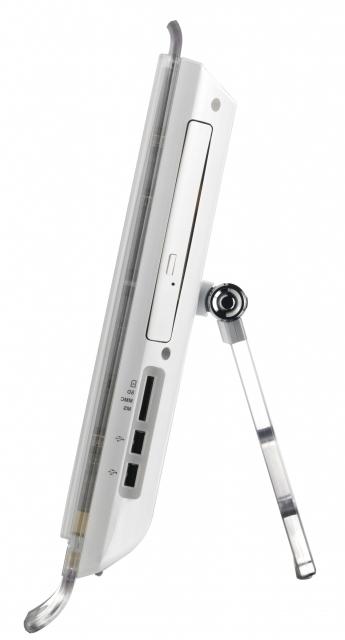

| Optical drive type | DVD±RW |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD, XD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | Intel® GMA 950 |
| On-board graphics card | Yes |
Camera
| Specification | Value |
|---|---|

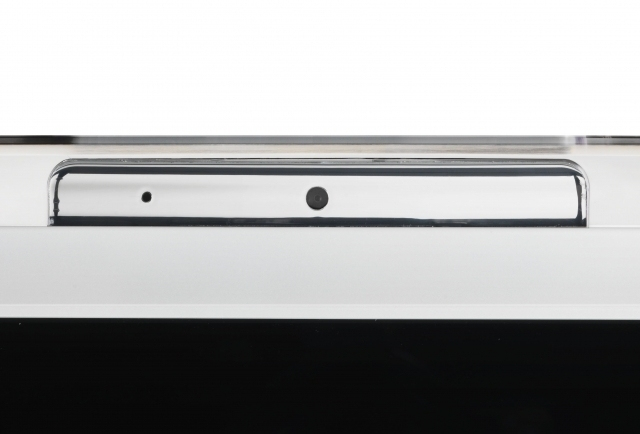

| Built-in camera | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| VGA (D-Sub) ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 0 |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® 945GC Express |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 476 mm |
| Depth (with stand) | 49 mm |
| Height (with stand) | 365 mm |
Other features
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000 Base-T(X) |
| Chassis type | All-in-One |
| Display | LCD WXGA Touch Screen |
| Display included | Yes |
| Maximum graphics card memory | 228 MB |
| Networking features | Gigabit Ethernet, WLAN |
| Number of processors installed | 1 |
| Parallel ports quantity | 0 |
| Power supply | 65 W |
| Speakers | 2 |
