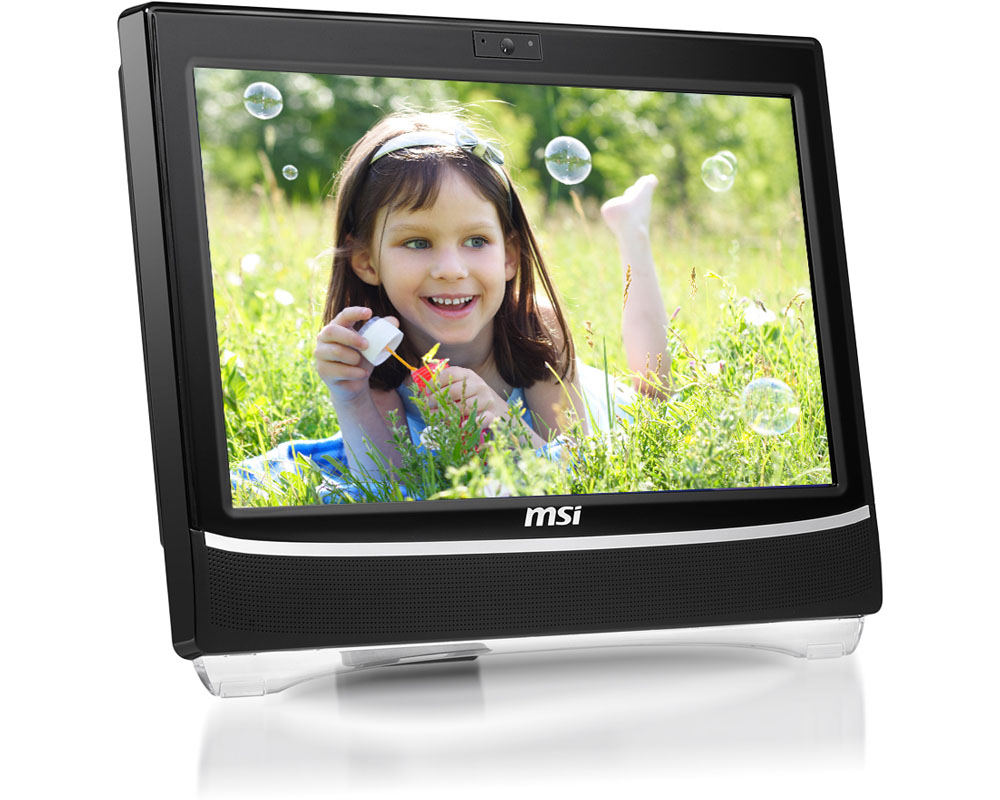

Wind Top AC1900-E3423W7H
Model Wind Top AC1900-E3423W7HPart no. 00A934-010R
67 specifications
- Display47 cm (18.5")
- Resolution1366 x 768 pixels
- Memory2 GB
- Storage320 GB
- GraphicsIntel® GMA X4500
- OSWindows 7 Home Premium
Overview
- Display
- 47 cm (18.5")
- Resolution
- 1366 x 768 pixels
- Memory
- 2 GB
- Storage
- 320 GB
- Graphics
- Intel® GMA X4500
- OS
- Windows 7 Home Premium
- Brand
- MSI
- Category
- All-in-One PCs/Workstations
- Model
- Wind Top AC1900-E3423W7H
- Part number
- 00A934-010R
- Also known as
- MSI Wind Top AC1900-E3423W7H 47 cm (18.5") 1366 x 768 pixels 2 GB DDR3-SDRAM 320 GB Intel® GMA X4500 Windows 7 Home Premium Black
Specifications
67 specifications in 16 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 47 cm (18.5") |
| Display resolution | 1366 x 768 pixels |
| Touchscreen | No |
| HD type | Not supported |
| Native aspect ratio | 16:9 |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
Processor
| Specification | Value |
|---|---|
| Processor cores | 2 |
| Processor frequency | 2.6 GHz |
| Processor cache | 1 MB |
| Processor cache type | L2 |
| Processor front side bus | 800 MHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR3-SDRAM |
| Maximum internal memory | 4 GB |
| Memory clock speed | 1333 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 320 GB |
| Number of HDDs installed | 1 |
| HDD speed | 7200 RPM |
| HDD interface | SATA II |
| Optical drive type | DVD Super Multi |
| Card reader integrated | Yes |
| Compatible memory cards | Memory Stick (MS), MMC, MS PRO, SD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | Intel® GMA X4500 |
| On-board graphics card | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| HDMI ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Firewire (IEEE 1394) ports | 0 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 0 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® G41 Express |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Home Premium |
| Operating system architecture | 64-bit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 471 mm |
| Depth (with stand) | 64 mm |
| Height (with stand) | 347 mm |
| Weight (with stand) | 5.6 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Certificates
| Specification | Value |
|---|---|
| Certification | UL/CB |
Other features
| Specification | Value |
|---|---|
| Graphics card family | Intel |
| Cabling technology | 10/100/1000Base-T(X) |
| Chassis type | All-in-One |
| Display | LCD |
| Display included | Yes |
| Networking features | Gigabit Ethernet, WLAN |
| Number of processors installed | 1 |
| Parallel ports quantity | 0 |
| Power supply | 120 W |
| Speakers | 2 x 2W |
| Wake-on-LAN ready | Yes |
