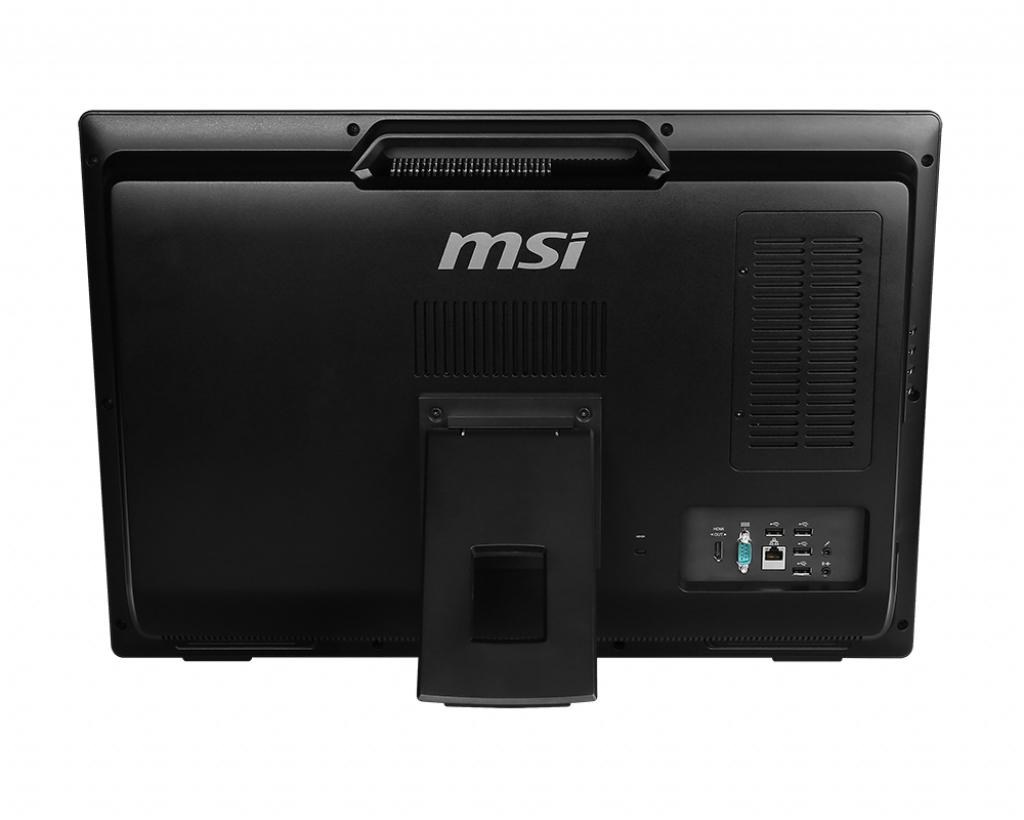

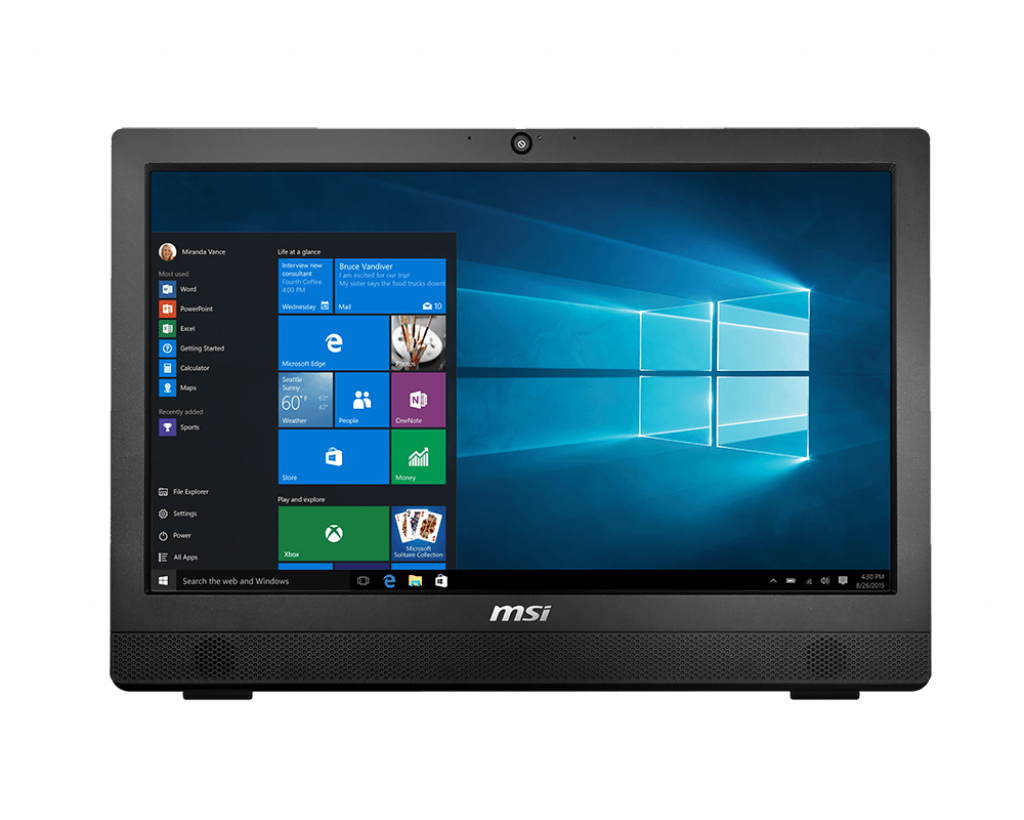

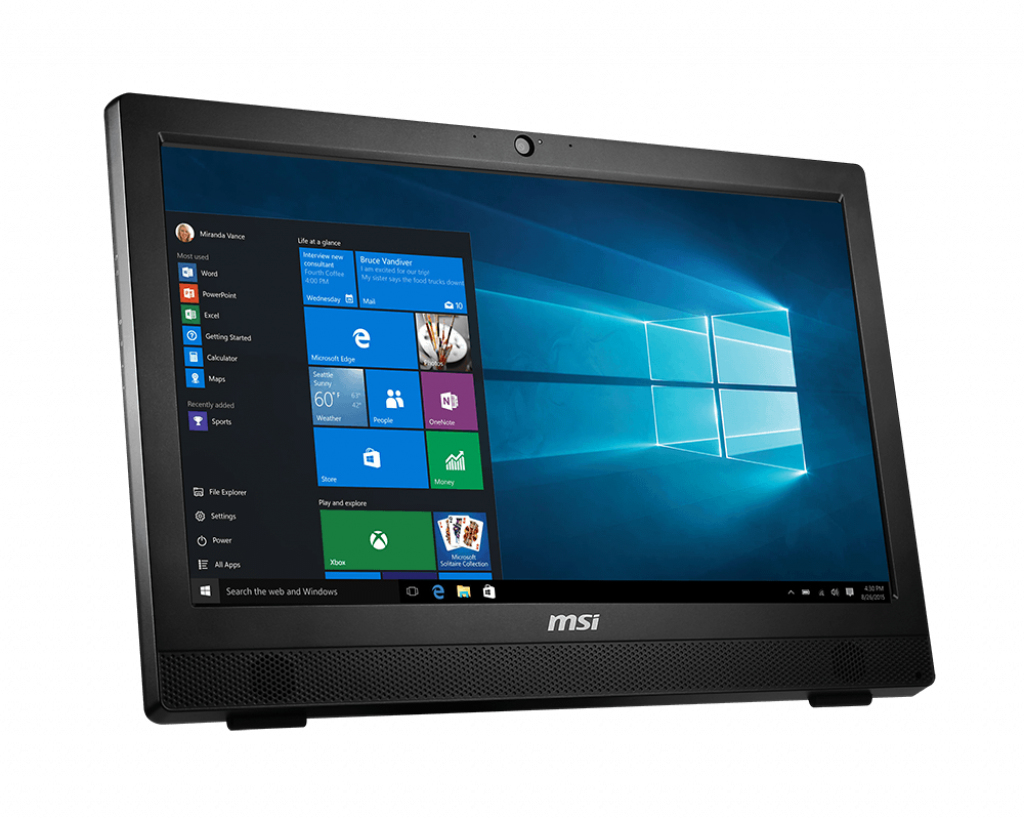

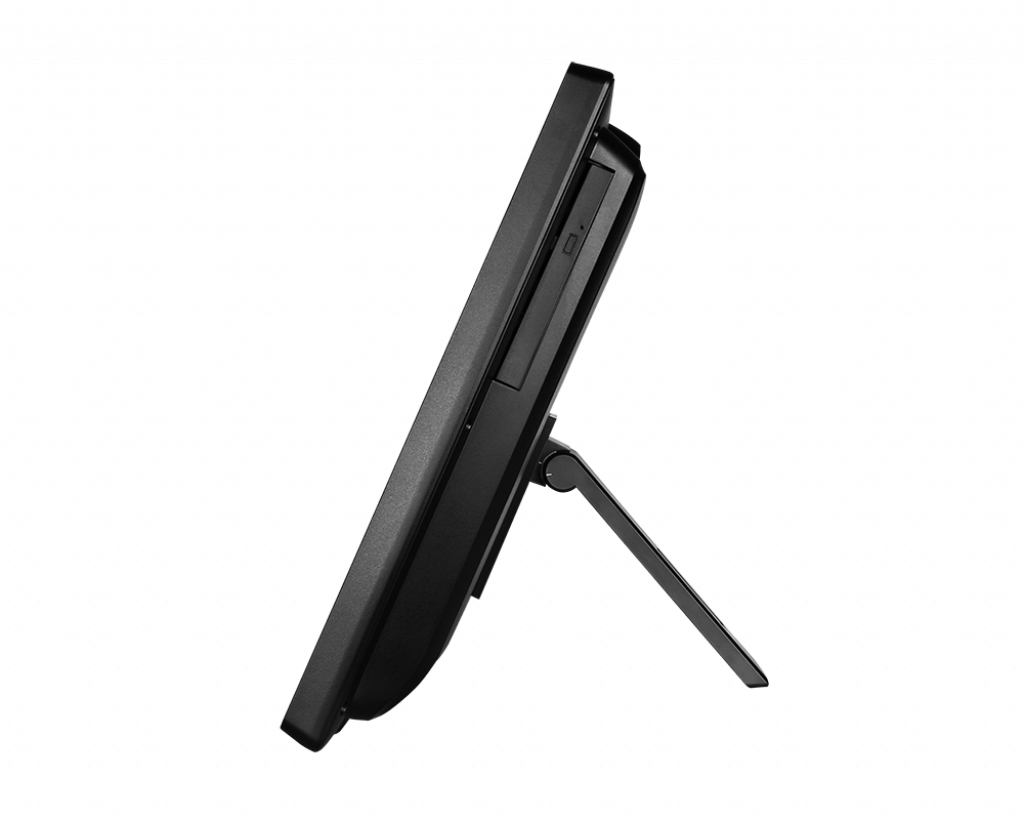

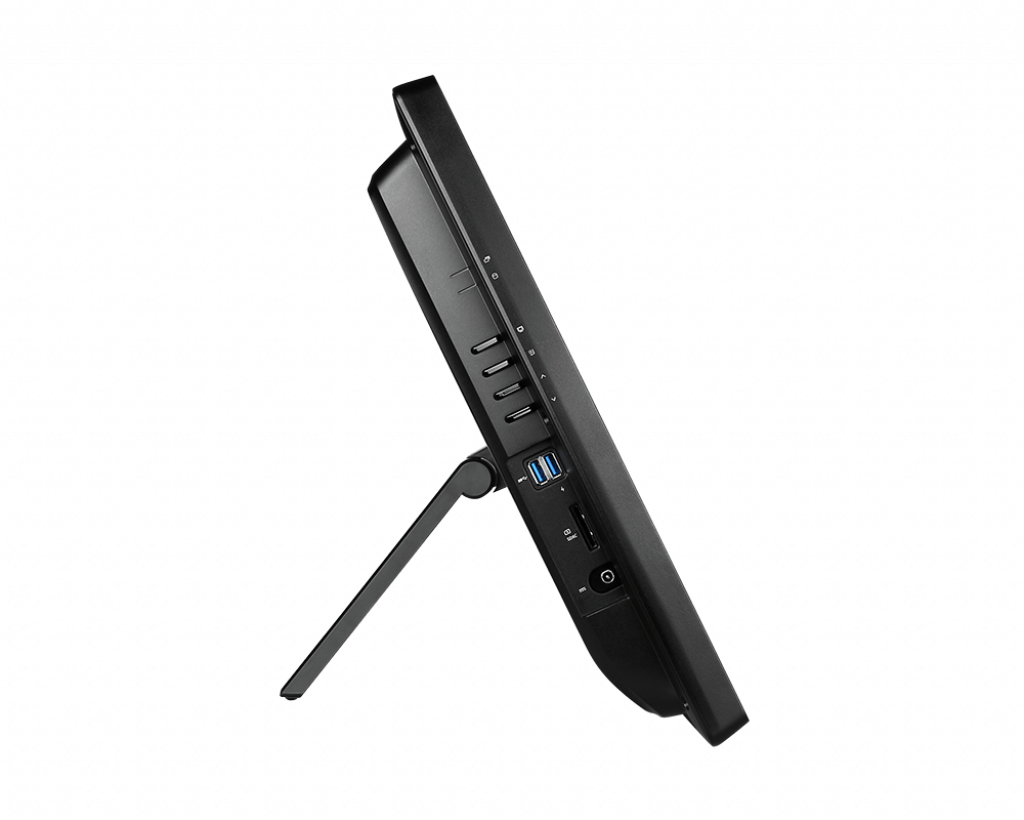

MSI Pro PRO24T4BW-030EU All-in-One PC/workstation Intel® Pentium® N3700
MSI

Pro PRO24T4BW-030EU All-in-One PC/workstation Intel® Pentium® N3700

59.9 cm (23.6") 1920 x 1080 pixels Touchscreen DDR3L-SDRAM 500 GB HDD Windows 10 Home Wi

Model PRO24T4BW-030EU

137 specifications
  • Display59.9 cm (23.6")
  • Resolution1920 x 1080 pixels
  • ProcessorIntel® Pentium®
  • Storage500 GB
  • GraphicsNot available
  • SpeedWi-Fi 4 (802.11n)
See all specifications

Overview

Display
59.9 cm (23.6")
Resolution
1920 x 1080 pixels
Processor
Intel® Pentium®
Storage
500 GB
Graphics
Not available
Speed
Wi-Fi 4 (802.11n)
Brand
MSI
Model
PRO24T4BW-030EU
Part number
PRO24T4BW-030EU
Also known as
MSI Pro PRO24T4BW-030EU All-in-One PC/workstation Intel® Pentium® N3700 59.9 cm (23.6") 1920 x 1080 pixels Touchscreen DDR3L-SDRAM 500 GB HDD Windows 10 Home Wi

Specifications

137 specifications in 16 groups

Display

Display diagonal59.9 cm (23.6")
Display resolution1920 x 1080 pixels
TouchscreenYes
HD typeFull HD
LED backlightYes
Touch technologyDual-touch
Native aspect ratio16:9
Panel typeLCD
Screen shapeFlat

Processor

Processor manufacturerIntel
Processor familyIntel® Pentium®
Processor modelN3700
Processor cores4
Processor threads4
Processor boost frequency2.4 GHz
Processor frequency1.6 GHz
Processor cache2 MB
Processor cache typeL2
Processor socketBGA 1170
Thermal Design Power (TDP)6 W
Integrated 4G WiMAXNo
Maximum number of PCI Express lanes4
PCI Express configurations1x2, 1x4, 2x2, 2x1, 4x1
PCI Express slots version2.0
Processor codeSR29E
Processor codenameBraswell
Processor lithography14 nm
Processor operating modes64-bit
Processor seriesIntel® Pentium N3000 Series for Mobile
Scenario Design Power (SDP)4 W
SteppingC0
Tjunction90 °C
Conflict-Free processorYes
Maximum internal memory supported by processor8 GB
Memory types supported by processorDDR3L-SDRAM
Memory clock speeds supported by processor1600 MHz
Memory channels supported by processorDual
ECC supported by processorNo

Memory

Internal memory typeDDR3L-SDRAM
Maximum internal memory8 GB
Memory slots1

Storage

Total storage capacity500 GB
Storage mediaHDD
Total HDDs capacity500 GB
Number of HDDs installed1
HDD capacity500 GB
Optical drive typeDVD Super Multi
Card reader integratedYes
Compatible memory cardsMMC, SD

Graphics

Discrete graphics cardNo
Discrete graphics card modelNot available
On-board graphics cardYes
On-board graphics card modelIntel® HD Graphics
Maximum on-board graphics card memory8 GB
Number of displays supported (on-board graphics)3
On-board graphics card base frequency400 MHz
On-board graphics card burst frequency700 MHz
Number of execution units16

Audio

Built-in speaker(s)Yes
Number of speakers2
RMS rated power6 W

Camera

Built-in cameraYes
Total megapixels1 MP
Camera HD typeHD
Camera signal format720p

Network

Wi-FiYes
Top Wi-Fi standardWi-Fi 4 (802.11n)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Thunderbolt 3 ports quantity0
Thunderbolt ports quantity0
HDMI ports quantity1
Headphone outputs1
Microphone inYes

Design

Product colourBlack
Panel mounting interface100 x 100 mm
VESA mountingYes

Performance

Product typeAll-in-One PC

Software

Operating system installedWindows 10 Home

Processor special features

CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Enhanced Halt StateYes
Intel Identity Protection Technology version1.00
Intel Rapid Storage TechnologyNo
Intel Secure BootYes
Intel Secure Boot Technology version1.00
Intel Secure Key Technology version1.00
Intel Small Business Advantage (SBA) version0.00
Intel Smart Connect TechnologyNo
Intel Smart Connect Technology version0.00
Intel Smart Response Technology version0.00
Intel Stable Image Platform Program (SIPP)No
Intel Stable Image Platform Program (SIPP) version0.00
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)No
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Anti-Theft Technology (Intel® AT)No
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Intel® High Definition Audio (Intel® HD Audio)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyNo
Intel® Insider™No
Intel® OS GuardNo
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Small Business Advantage (Intel® SBA)No
Intel® Smart Response TechnologyNo
Intel® Turbo Boost TechnologyNo
Intel® Wireless Display (Intel® WiDi)Yes
Processor ARK ID87261
Processor package size25 x 27 mm
Thermal Monitoring TechnologiesYes
UARTYes

Power

AC adapter power65 W

Weight & dimensions

Width (with stand)581.5 mm
Depth (with stand)406 mm
Height (with stand)100.5 mm
Weight (with stand)11.4 kg
Package weight12.6 kg

Other features

3DNo
Detachable displayNo
