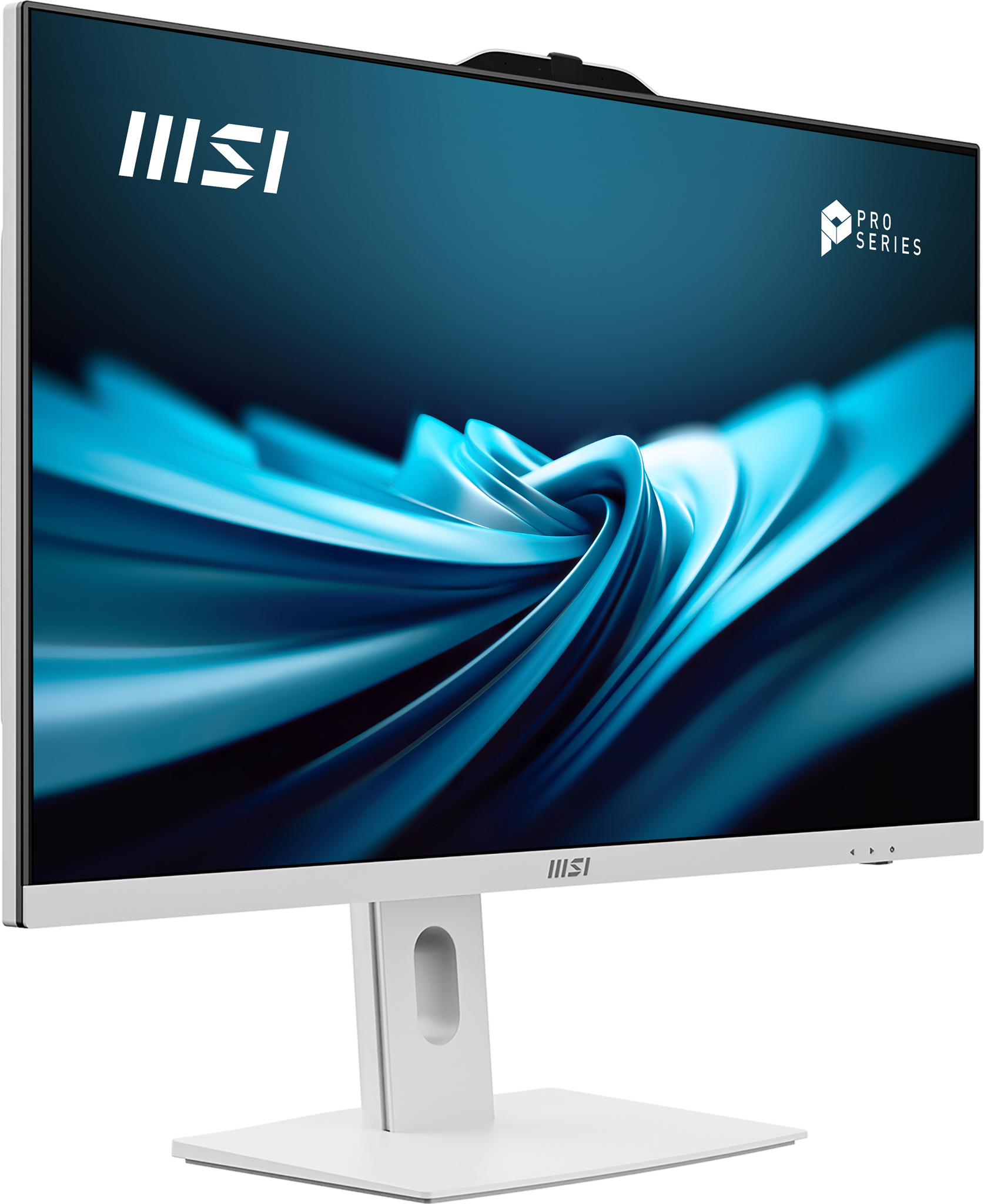

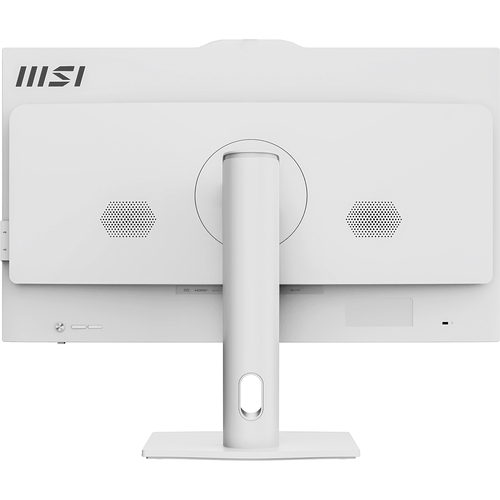

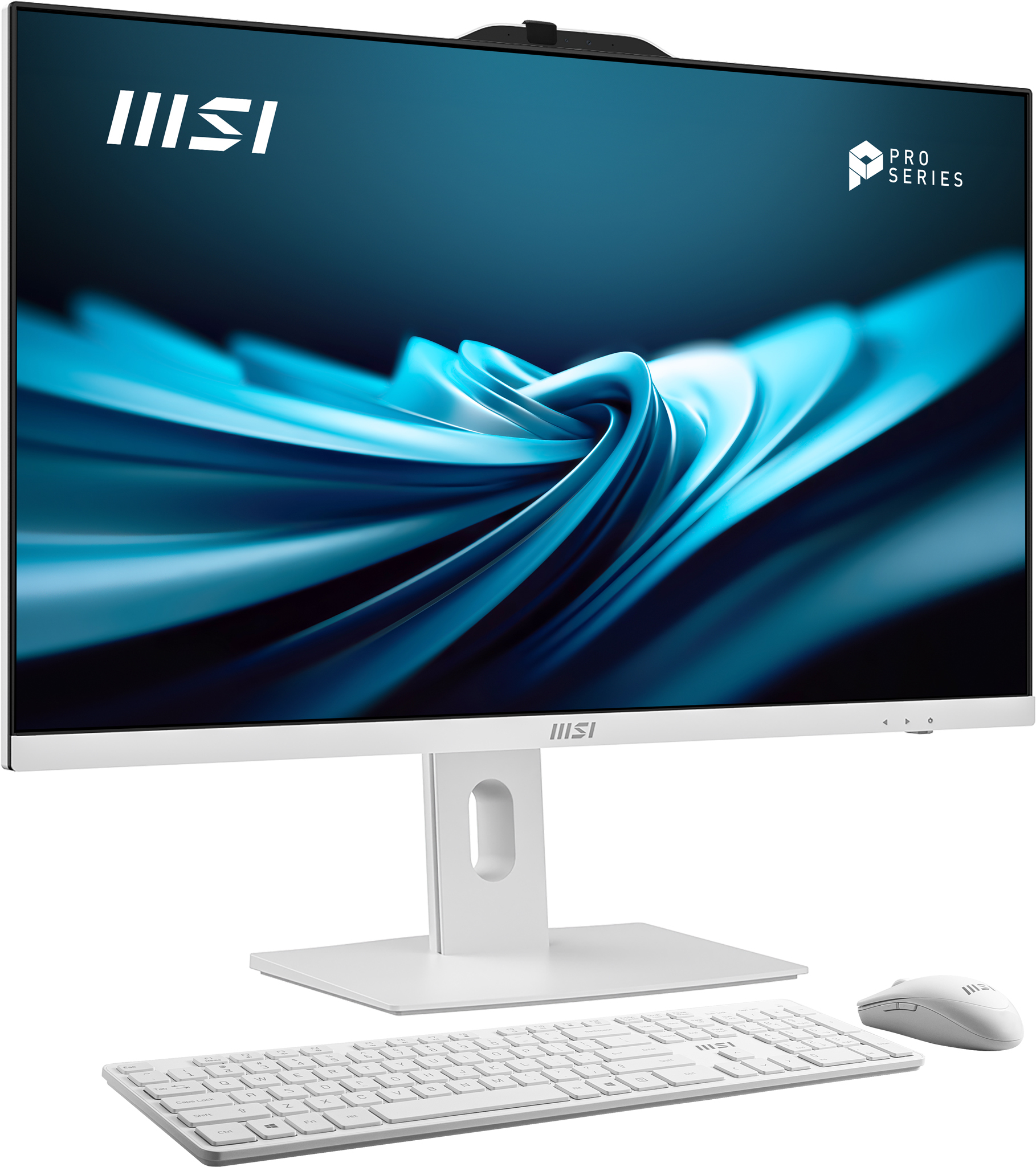

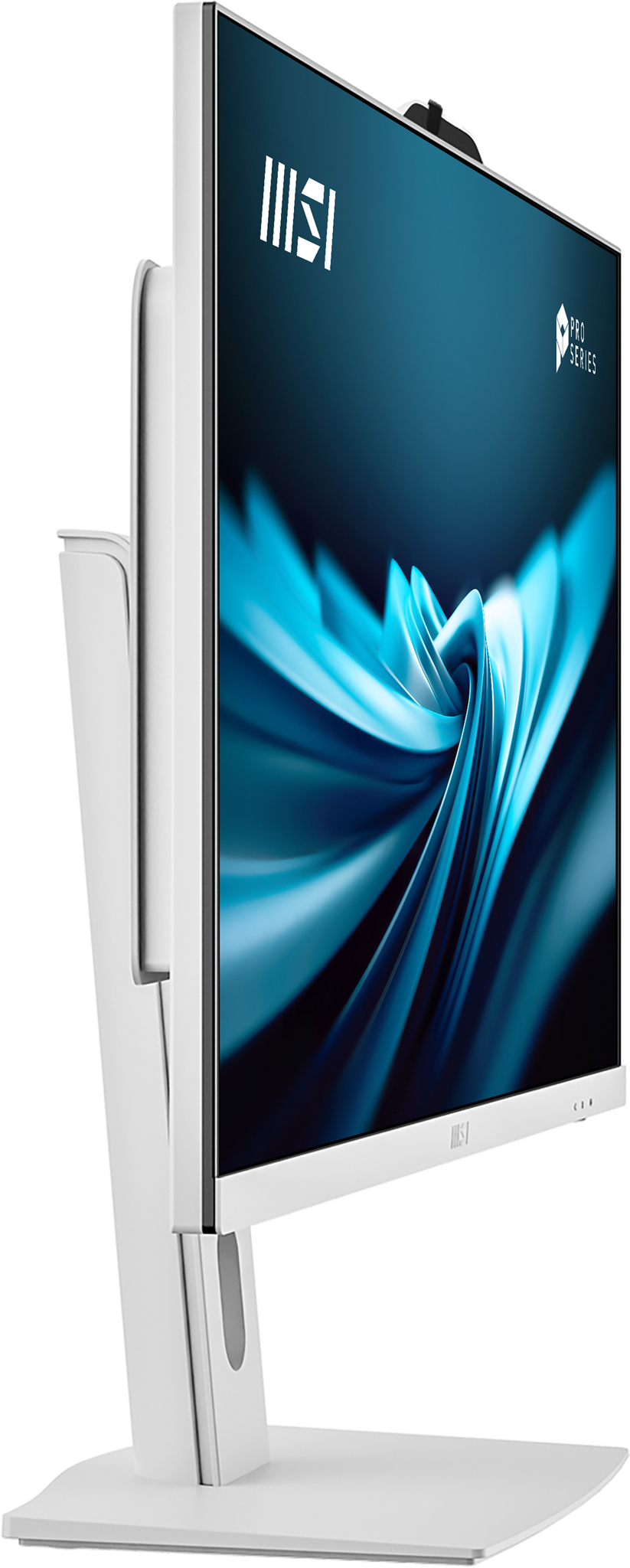

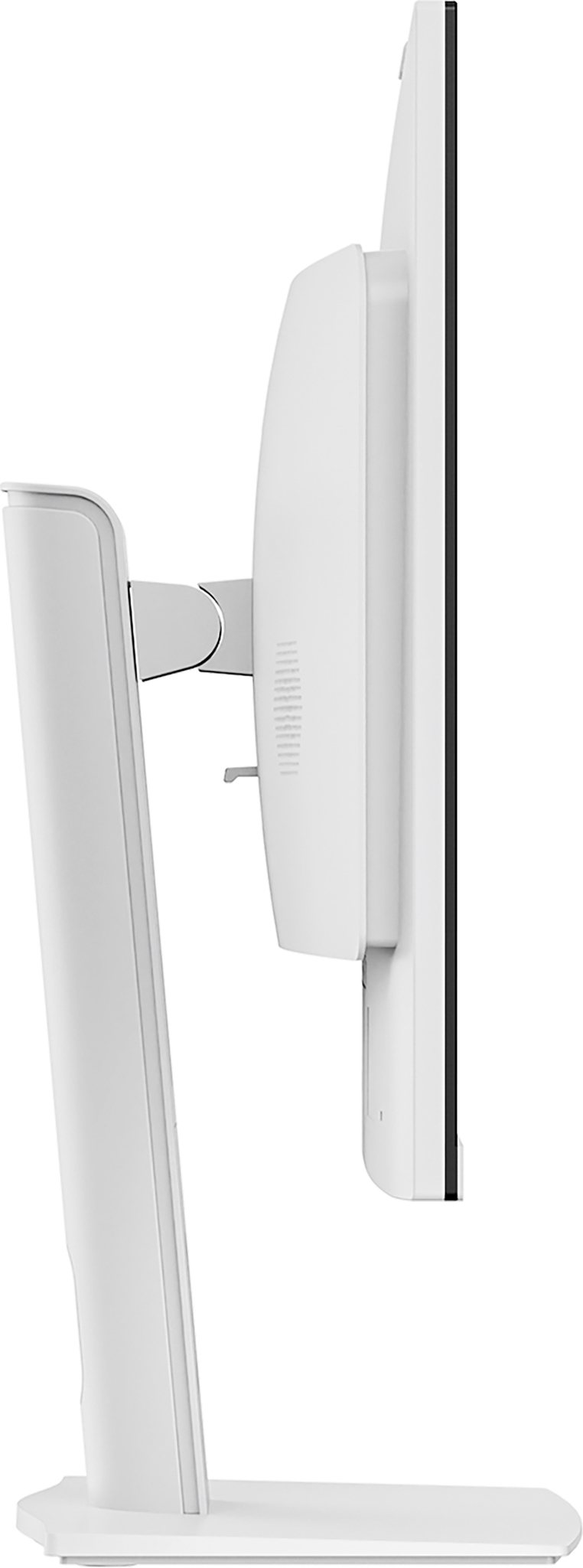

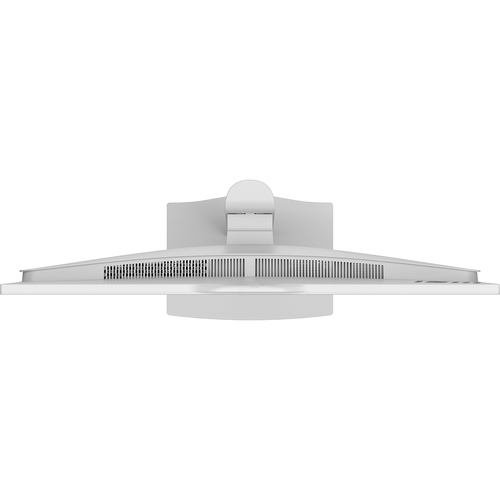

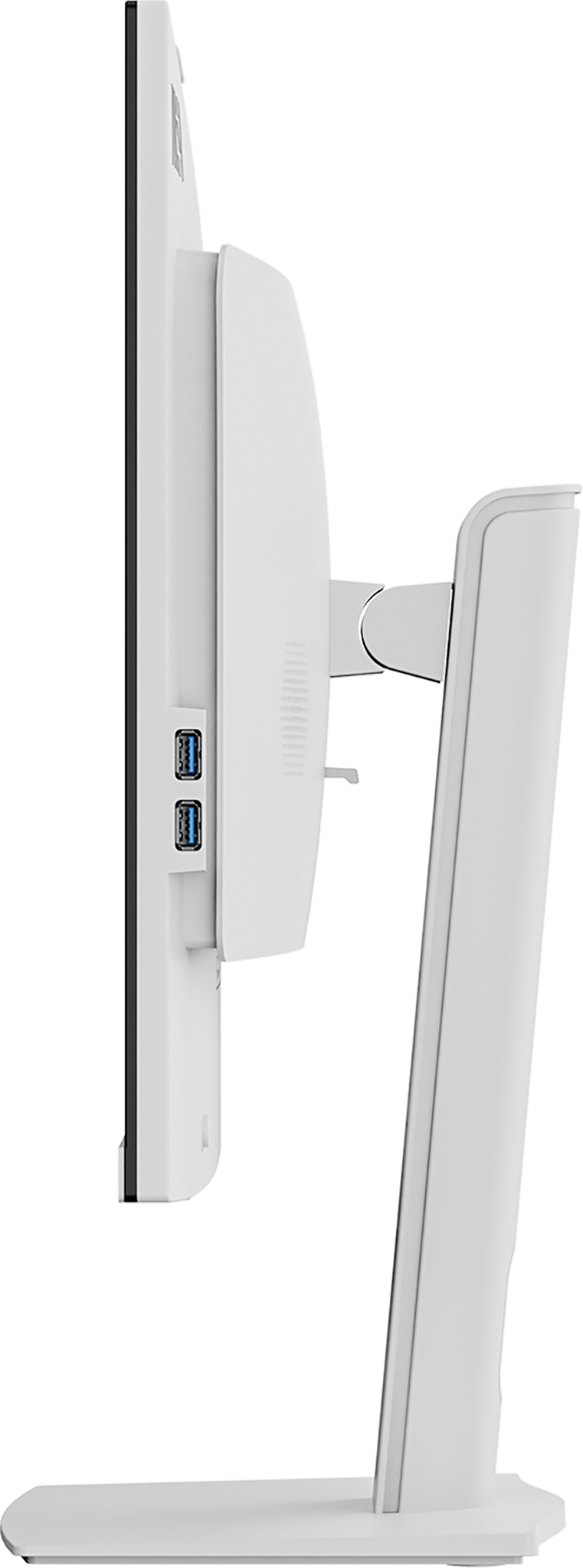

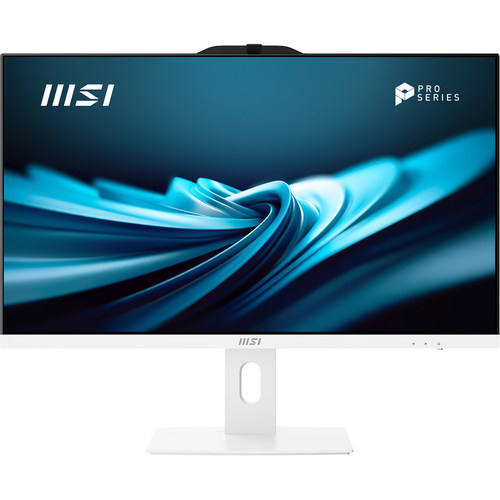

MSI PRO AP272P 14M-868XEU

PRO AP272P 14M-868XEU

Model PRO AP272P 14M-868XEUEAN 4711377312172

106 specifications

Display68.6 cm (27")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory16 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 68.6 cm (27")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 16 GB
Storage: 512 GB
Graphics: Not available

Brand: MSI
Category: All-in-One PCs/Workstations
Model: PRO AP272P 14M-868XEU
Part number: PRO AP272P 14M-868XEU
EAN / UPC: 4711377312172
Also known as: MSI Pro AP272P 14M-868XEU All-in-One PC/workstation Intel® Core™ i5 i5-14400 68.6 cm (27") 1920 x 1080 pixels 16 GB DDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Wh

Specifications

106 specifications in 17 groups

Display

Specification	Value
Display diagonal	68.6 cm (27")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Display surface	Matt
Panel type	IPS
Anti-glare screen	Yes
Pixel pitch	0.2745 x 0.2745 mm

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	Intel® Core™ i5 (14th gen)
Processor model	i5-14400
Processor cores	10
Processor threads	16
Processor boost frequency	4.7 GHz
Performance cores	6
Efficient cores	4
Performance-core Max Turbo Frequency	4.7 GHz
Efficient-core Max Turbo Frequency	3.5 GHz
Performance-core base frequency	2.5 GHz
Efficient-core base frequency	1.8 GHz
Processor cache	20 MB
Processor cache type	Smart Cache
Processor socket	LGA 1700
Maximum turbo power	148 W
Processor base power	65 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	5600 MHz
Memory layout (slots x size)	2 x 8 GB
Memory form factor	DIMM/SO-DIMM

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card	Yes
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel UHD Graphics 730

Audio

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	6 W
Audio chip	Realtek ALC897

Camera

Specification	Value
Built-in camera	Yes
Camera HD type	Full HD
Privacy camera	Yes
Privacy type	Pop-up

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Intel
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB4 Gen 3x2 ports quantity	0
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes

Design

Specification	Value
Product colour	White
VESA mounting	Yes
Wall mountable	Yes
On/off button	Yes

Performance

Specification	Value
Product type	All-in-One PC
Market positioning	Business
Motherboard chipset	Intel H610
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Software

Specification	Value
Operating system installed	No

Power

Specification	Value
AC adapter power	120 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 -240 V

Weight & dimensions

Specification	Value
Width (with stand)	613.5 mm
Depth (with stand)	362.5 mm
Height (with stand)	499.5 mm
Weight (with stand)	7 kg
Package width	696 mm
Package depth	218 mm
Package height	490 mm
Package weight	11.8 kg

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 90%

Certificates

Specification	Value
Certification	FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)

Other features

Specification	Value
Warranty period	3 year(s)
