MSI Pro AP242P 14M i5 14400 16GB 512GB W11P

Model Pro AP242P 14M i5 14400 16GB 512GB W11PPart no. PRO AP242P 14M I5 14400 16GB 512GB W11PEAN 4711377385862

122 specifications

Display60.5 cm (23.8")
Resolution1920 x 1080 pixels
ProcessorIntel Core 5
Memory16 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 60.5 cm (23.8")
Resolution: 1920 x 1080 pixels
Processor: Intel Core 5
Memory: 16 GB
Storage: 512 GB
Graphics: Not available

Brand: MSI
Category: All-in-One PCs/Workstations
Model: Pro AP242P 14M i5 14400 16GB 512GB W11P
Part number: PRO AP242P 14M I5 14400 16GB 512GB W11P
EAN / UPC: 4711377385862
Also known as: MSI Pro AP242P 14M Intel Core i5 14400 All in One PC, (16GB RAM, 512GB SSD, Windows 11PRO), 23.8 Inch IPS Screen/UHD Graphics/Type-C/USB/LAN/HDMI/DP/WiFi 6E/BT

Specifications

122 specifications in 18 groups

Display

Specification	Value
Display diagonal	60.5 cm (23.8")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Display brightness	250 cd/m²
Panel type	IPS
Anti-glare screen	Yes
Pixel pitch	0.2745 x 0.2745 mm

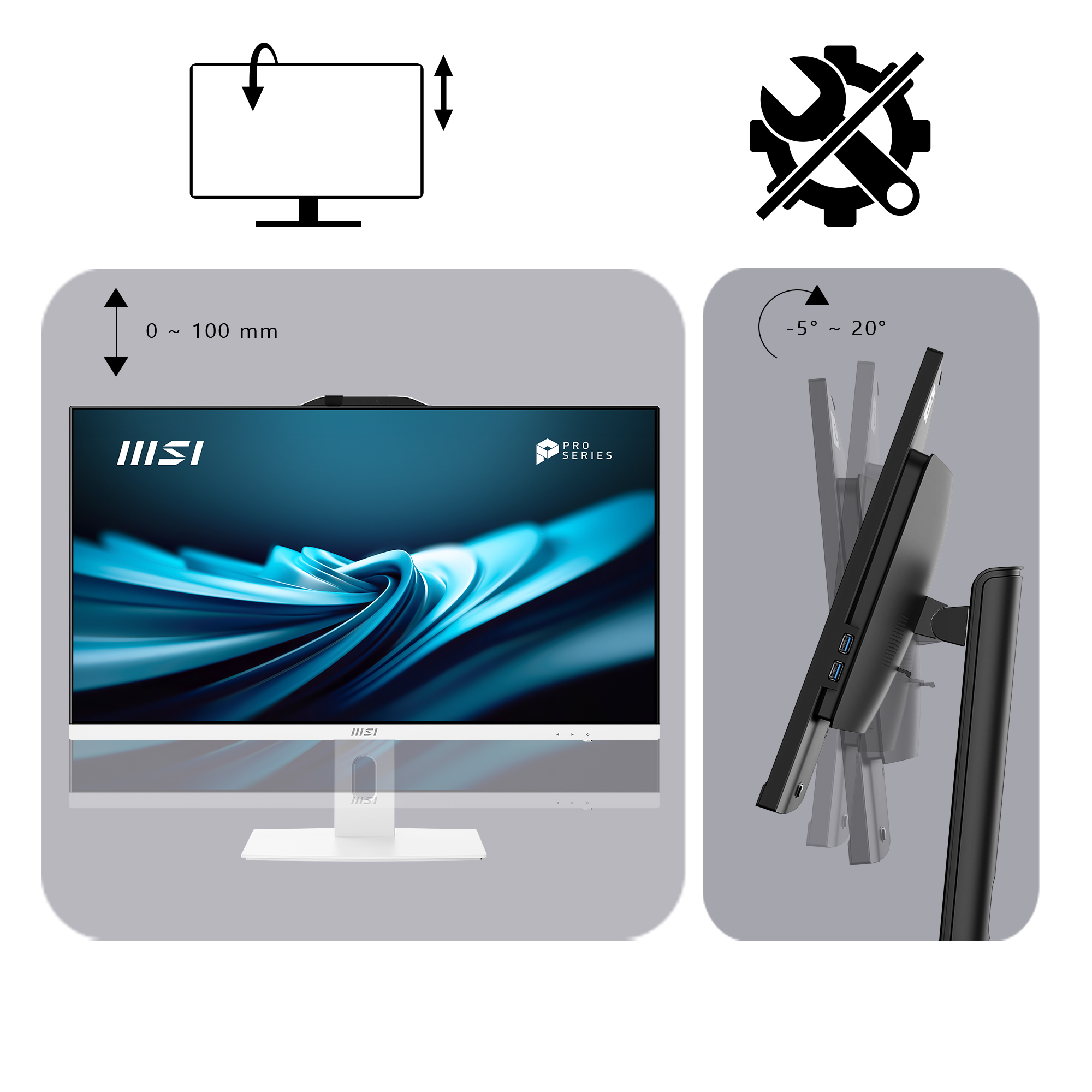

Tilt adjustment	Yes
Tilt angle range	-4 - 20°

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core 5
Processor generation	Intel® Core™ i5 (14th gen)
Processor model	i5-14400
Processor cores	10
Processor threads	16
Processor boost frequency	4.7 GHz
Processor frequency	2.5 GHz
Performance-core Max Turbo Frequency	4.7 GHz
Processor cache	20 MB
Processor cache type	Smart Cache
Processor base power	65 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	2800 MHz
Memory layout (slots x size)	2 x 8 GB
Memory form factor	DIMM/SO-DIMM

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	M.2
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Optical drive type	No

Graphics

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card	Yes
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel UHD Graphics 770

Audio

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	3 W
Built-in microphone	Yes
Audio chip	Realtek ALC897
Audio system	HD

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	2 MP
Camera HD type	Full HD
Privacy camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Intel
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3

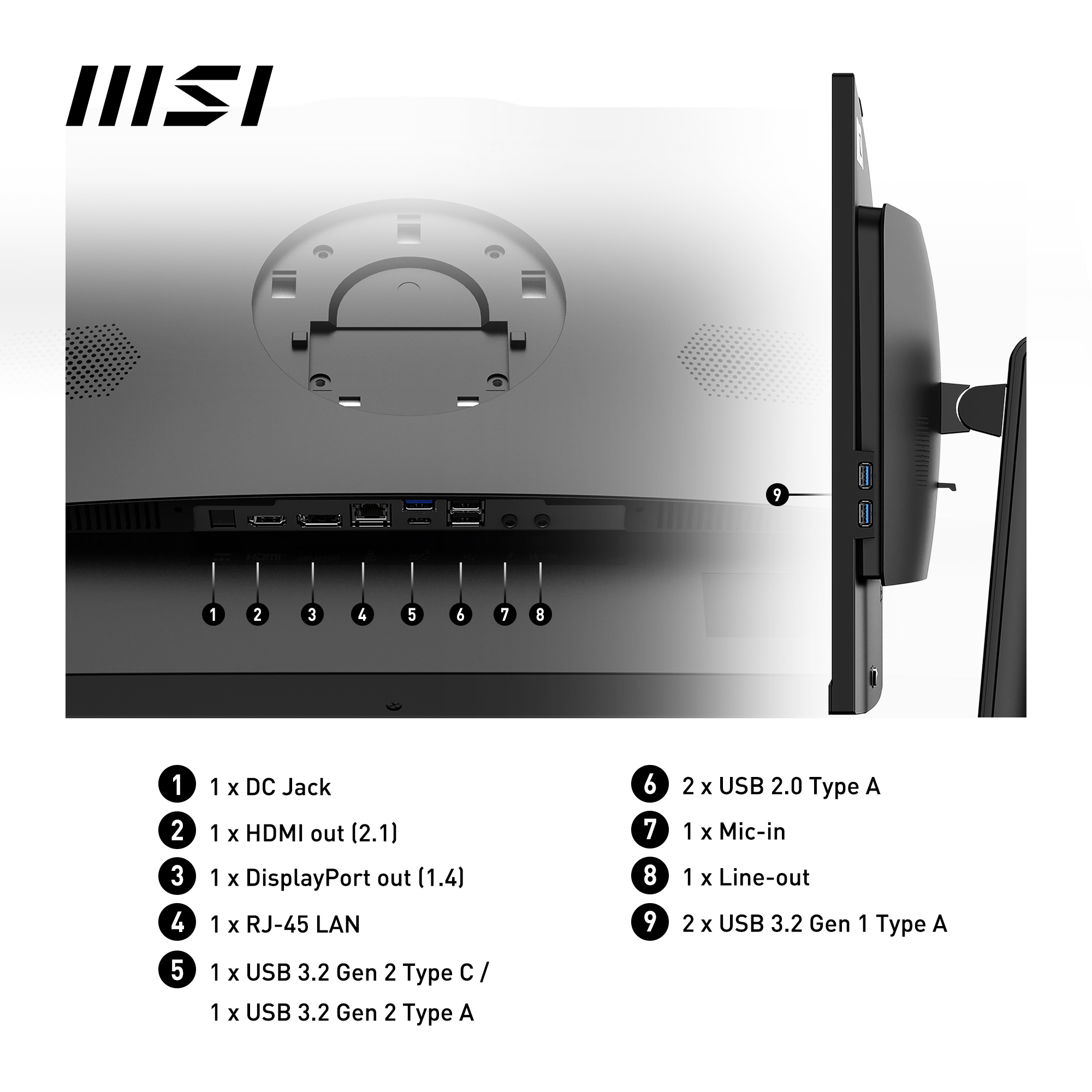

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB4 Gen 3x2 ports quantity	0
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	1
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
Number of rear USB ports	4
Number of front USB ports	2
Number of rear audio ports	2

Design

Specification	Value
Product colour	Black
Housing material	Plastic
Colour name	Black
Frameless design	Yes
Height adjustment	Yes
Pivot	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Cable management	Yes
Introduction year	2025
Panel mounting interface	75 x 75 mm
VESA mounting	Yes
Wall mountable	Yes
On/off button	Yes
Country of origin	China

Performance

Specification	Value
Product type	All-in-One PC
Cooling type	Active
Market positioning	Business
Motherboard chipset	Intel H610
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Software

Specification	Value
Operating system installed	Windows 11 Pro

Power

Specification	Value
AC adapter power	120 W

Weight & dimensions

Specification	Value
Width (with stand)	541.9 mm
Depth (with stand)	333.3 mm
Height (with stand)	480 mm
Weight (with stand)	4.63 kg
Package width	640 mm
Package depth	243 mm
Package height	508 mm
Package weight	8 kg

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 90%

Certificates

Specification	Value
Compliance certificates	BSMI, CB, CE, Federal Communications Commission (FCC)

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No
Cables included	AC

Other features

Specification	Value
Warranty period	3 year(s)
