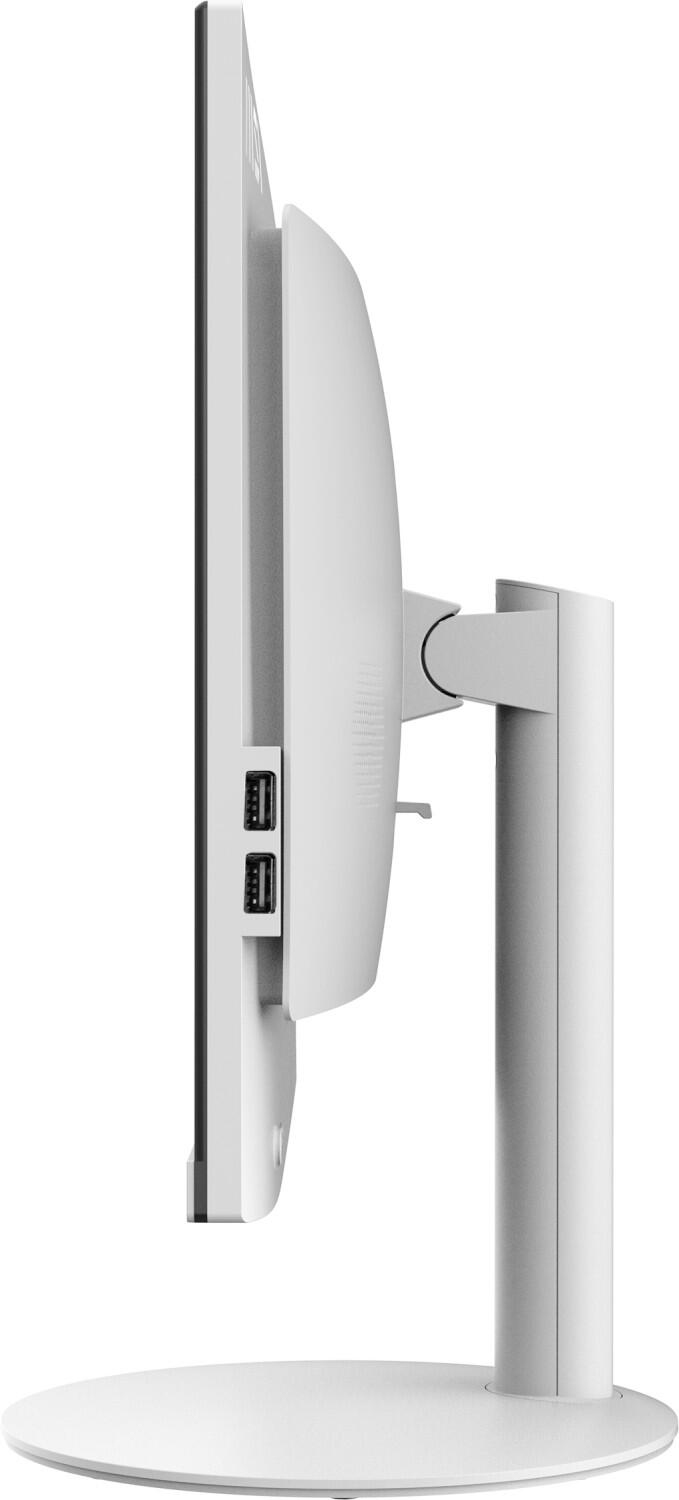

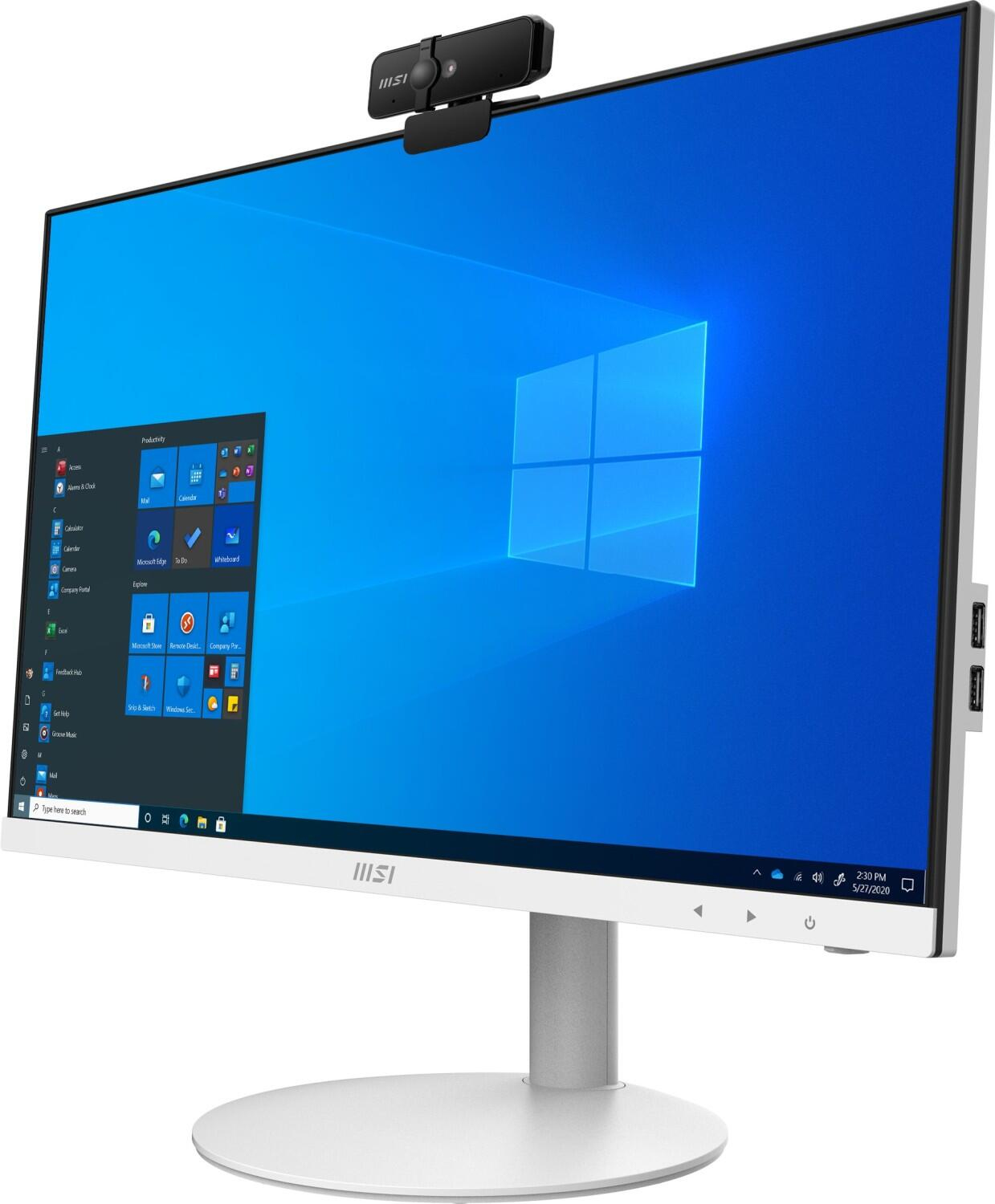

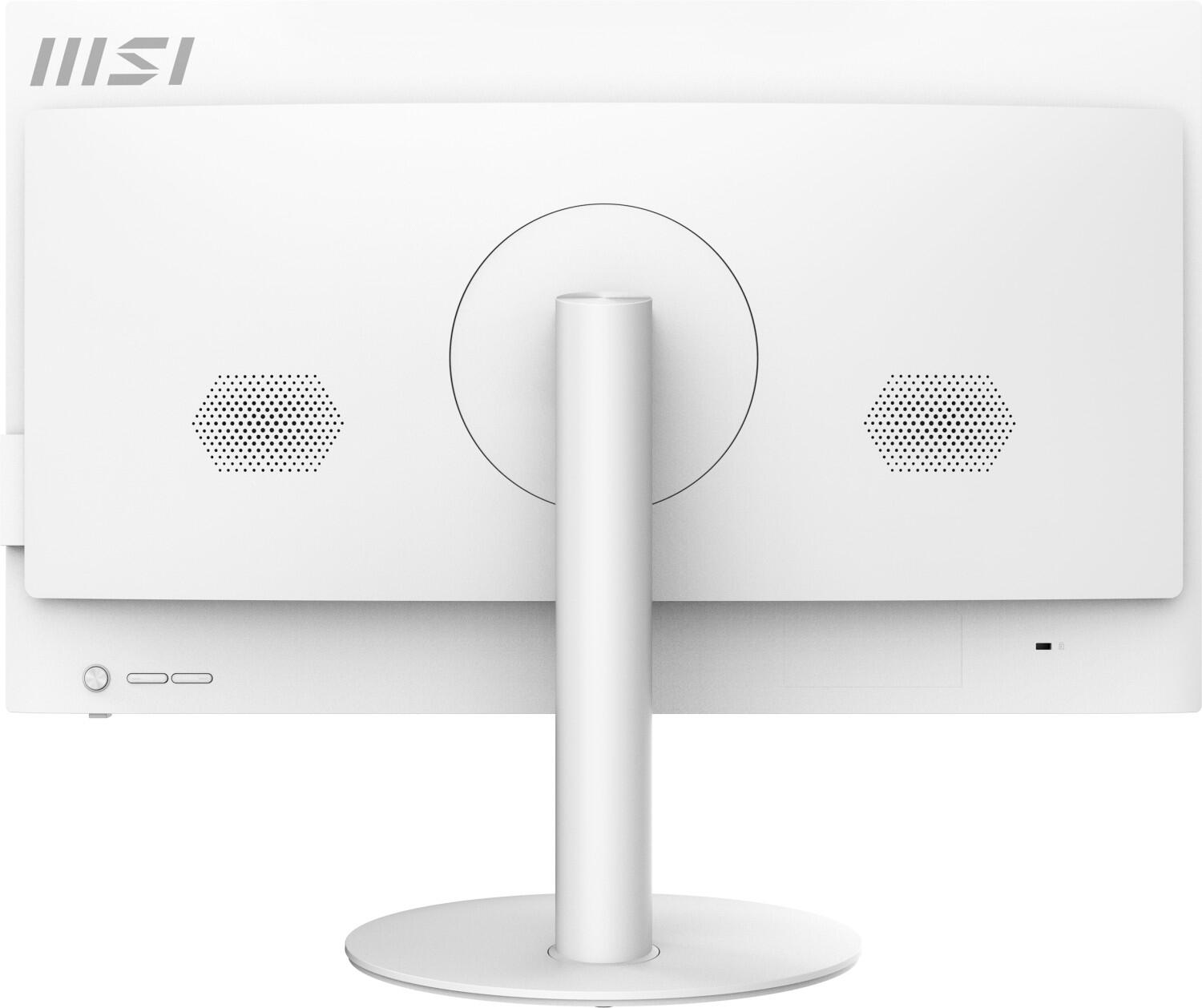

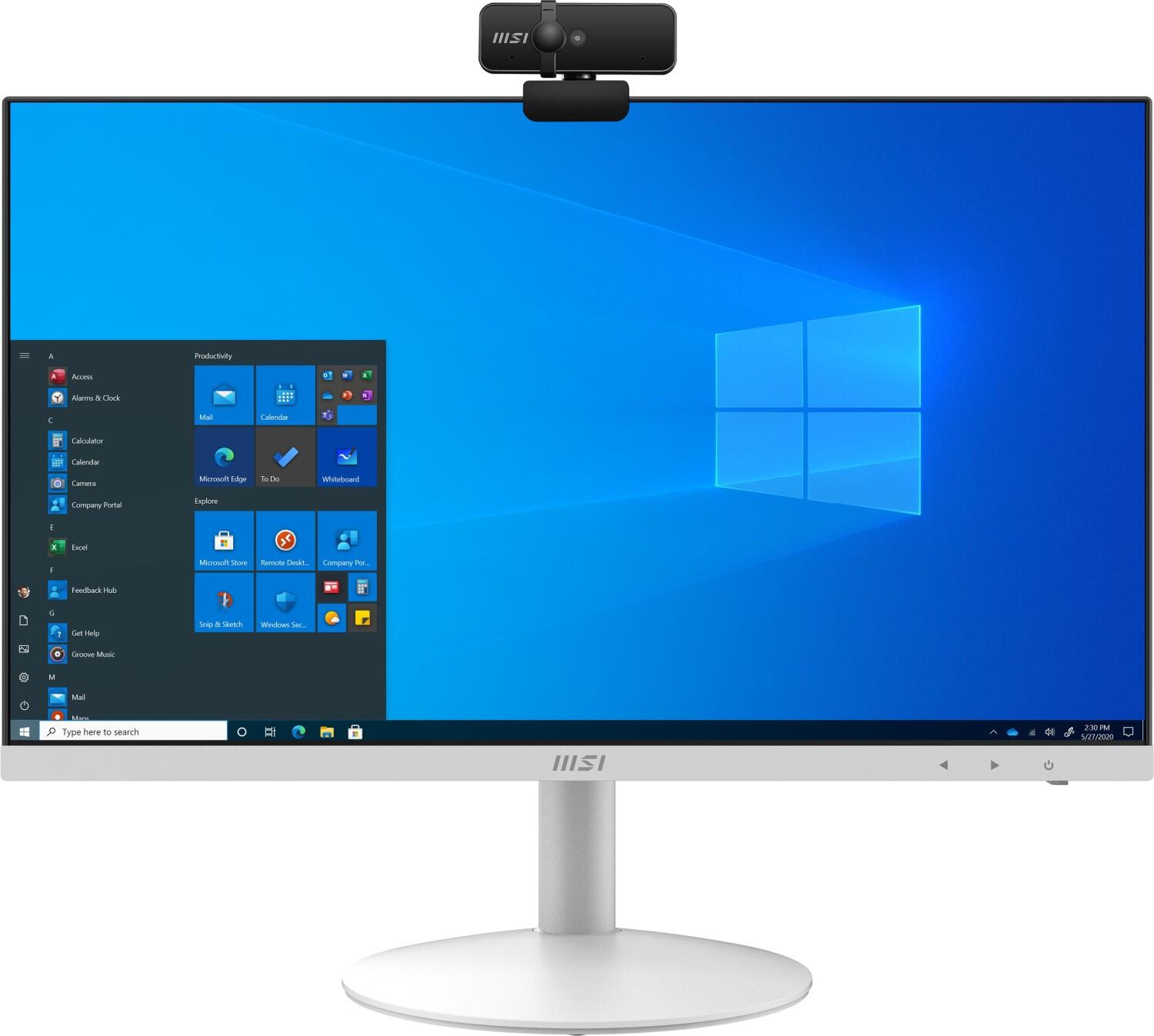

MSI Pro AP241 11M-020EU

Pro AP241 11M-020EU

Model Pro AP241 11M-020EUPart no. PRO AP241 11M-020EUEAN 4719072857462

95 specifications

Display60.5 cm (23.8")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i3
Memory8 GB
Storage256 GB
GraphicsNot available

See all specifications

Overview

Display: 60.5 cm (23.8")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i3
Memory: 8 GB
Storage: 256 GB
Graphics: Not available

Brand: MSI
Category: All-in-One PCs/Workstations
Model: Pro AP241 11M-020EU
Part number: PRO AP241 11M-020EU
EAN / UPC: 4719072857462
Also known as: MSI Pro AP241 11M-020EU Intel® Core™ i3 i3-10105 60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Home Wi-Fi 5 (802.11ac)

Specifications

95 specifications in 17 groups

Display

Specification	Value
Display diagonal	60.5 cm (23.8")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Native aspect ratio	16:9
Display brightness	250 cd/m²
Anti-glare screen	Yes
Pixel pitch	0.2745 x 0.2745 mm
Tilt adjustment	Yes
Tilt angle range	-5 - 15°

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	10th gen Intel® Core™ i3
Processor model	i3-10105
Processor cores	4
Processor boost frequency	4.4 GHz
Processor frequency	3.7 GHz
Processor cache	6 MB

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	3200 MHz
Memory layout (slots x size)	1 x 8 GB
Memory form factor	DIMM/SO-DIMM

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card	Yes
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics 630

Audio

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	6 W
Audio chip	Realtek ALC897

Camera

Specification	Value
Built-in camera	No

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller manufacturer	Intel
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Antenna type	1x1
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0

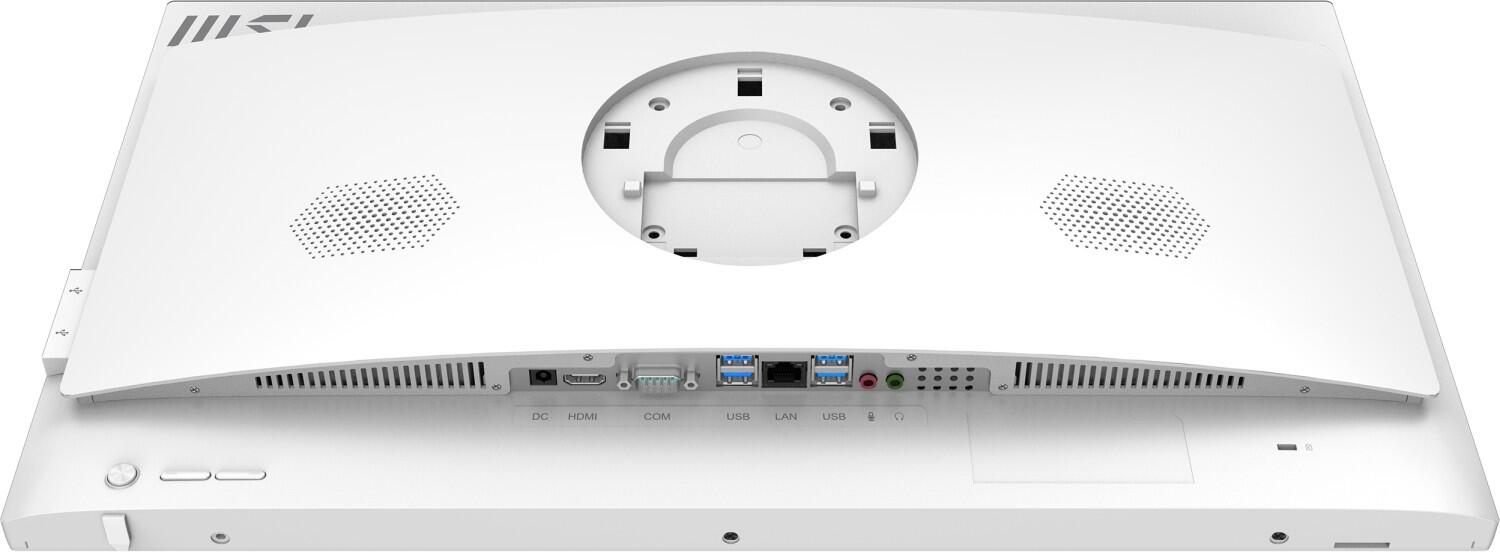

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
HDMI ports quantity	2
Combo headphone/mic port	Yes

Design

Specification	Value
Product colour	White
Panel mounting interface	75 x 75 mm
VESA mounting	Yes

Performance

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel H510

Software

Specification	Value
Operating system installed	Windows 10 Home

Processor special features

Specification	Value
CPU configuration (max)	1
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Power

Specification	Value
AC adapter power	120 W

Weight & dimensions

Specification	Value
Width (with stand)	541.4 mm
Depth (with stand)	227.9 mm
Height (with stand)	425.5 mm
Weight (with stand)	4.63 kg
Package width	640 mm
Package depth	243 mm
Package height	508 mm
Package weight	8 kg

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 90%

Certificates

Specification	Value
Certification	"FCC(Class B) CB/CE UL(CUL) BSMI"
