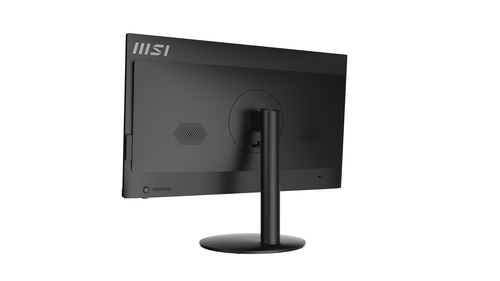

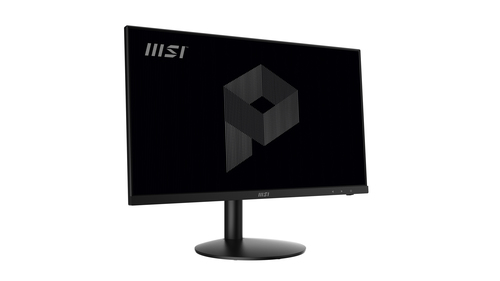

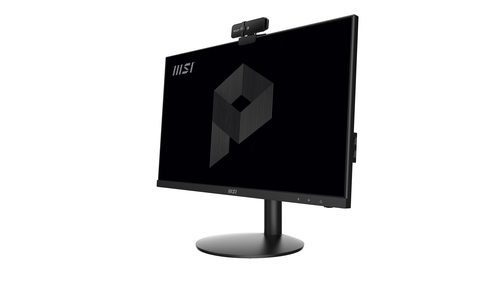

MSI Pro AP241 11M-017EU

Pro AP241 11M-017EU

Model Pro AP241 11M-017EUPart no. PRO AP241 11M-017EUEAN 4719072857424

96 specifications

Display61 cm (24")
Resolution1920 x 1080 pixels
ProcessorIntel® Pentium® Gold
Memory4 GB
Storage128 GB
GraphicsNot available

See all specifications

Overview

Display: 61 cm (24")
Resolution: 1920 x 1080 pixels
Processor: Intel® Pentium® Gold
Memory: 4 GB
Storage: 128 GB
Graphics: Not available

Brand: MSI
Category: All-in-One PCs/Workstations
Model: Pro AP241 11M-017EU
Part number: PRO AP241 11M-017EU
EAN / UPC: 4719072857424
Also known as: MSI Pro AP241 11M-017EU Intel® Pentium® Gold G6405 61 cm (24") 1920 x 1080 pixels All-in-One PC 4 GB DDR4-SDRAM 128 GB SSD Windows 10 Pro Wi-Fi 5 (802.11ac) Bla

Specifications

96 specifications in 17 groups

Display

Specification	Value
Display diagonal	61 cm (24")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Native aspect ratio	16:9
Display brightness	250 cd/m²
Panel type	IPS
Anti-glare screen	Yes
Pixel pitch	0.2745 x 0.2745 mm

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium® Gold
Processor model	G6405
Processor cores	2
Processor frequency	4.1 GHz
Processor cache	4 MB
Processor cache type	Smart Cache

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	3200 MHz
Memory layout (slots x size)	1 x 4 GB
Memory form factor	DIMM/SO-DIMM

Storage

Specification	Value
Total storage capacity	128 GB
Storage media	SSD
Total SSDs capacity	128 GB
Number of SSDs installed	1
SSD capacity	128 GB
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card	Yes
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics 610

Audio

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	6 W
Audio chip	Realtek ALC897

Camera

Specification	Value
Built-in camera	No

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller manufacturer	Intel
Wi-Fi standards	Wi-Fi 5 (802.11ac)
WLAN controller model	Intel Dual Band Wireless-AC 9462
Antenna type	1x1
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	0
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB4 Gen 3x2 ports quantity	0
HDMI ports quantity	1
HDMI version	1.4
Microphone in	Yes

Design

Specification	Value
Product colour	Black
Cable lock slot	Yes
Cable lock slot type	Kensington
Wall mountable	Yes

Performance

Specification	Value
Product type	All-in-One PC
Market positioning	Business
Motherboard chipset	Intel H510

Software

Specification	Value
Operating system installed	Windows 10 Pro

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Power

Specification	Value
AC adapter power	120 W

Weight & dimensions

Specification	Value
Width (with stand)	541.9 mm
Depth (with stand)	227.9 mm
Height (with stand)	425.5 mm
Weight (with stand)	4.63 kg
Package width	640 mm
Package depth	243 mm
Package height	508 mm
Package weight	8 kg

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 90%

Other features

Specification	Value
Camera included	Yes
