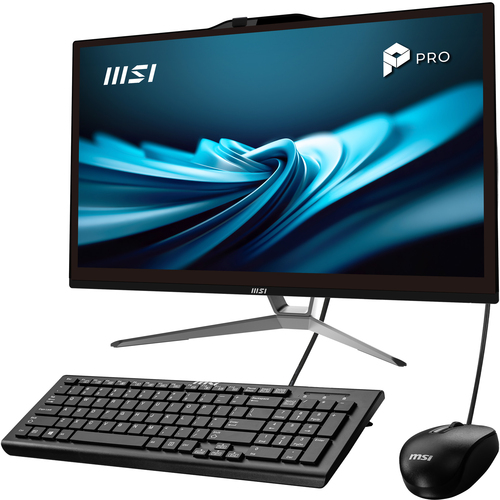

MSI Pro AP222T 14M-428FR

Pro AP222T 14M-428FR

Model Pro AP222T 14M-428FRPart no. PRO AP222T 14M-428FREAN 4711377341769

97 specifications

Display54.6 cm (21.5")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage500 GB
GraphicsNot available

See all specifications

Overview

Display: 54.6 cm (21.5")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 500 GB
Graphics: Not available

Brand: MSI
Category: All-in-One PCs/Workstations
Model: Pro AP222T 14M-428FR
Part number: PRO AP222T 14M-428FR
EAN / UPC: 4711377341769
Also known as: MSI Pro AP222T 14M-428FR Intel® Core™ i5 i5-14400 54.6 cm (21.5") 1920 x 1080 pixels Touchscreen All-in-One PC 8 GB DDR4-SDRAM 500 GB SSD Windows 11 Pro Wi-Fi 6

Specifications

97 specifications in 16 groups

Display

Specification	Value
Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Native aspect ratio	16:9
Display brightness	250 cd/m²
Panel type	IPS
Anti-glare screen	Yes
Pixel pitch	0.2745 x 0.2745 mm

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	Intel® Core™ i5 (14th gen)
Processor model	i5-14400
Processor cores	10
Processor threads	16
Processor boost frequency	4.7 GHz
Performance cores	6
Efficient cores	4
Performance-core Max Turbo Frequency	4.7 GHz
Efficient-core Max Turbo Frequency	3.5 GHz
Performance-core base frequency	2.5 GHz
Efficient-core base frequency	1.8 GHz
Processor cache	20 MB
Processor cache type	Smart Cache
Maximum turbo power	148 W
Processor base power	65 W

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Memory slots type	SO-DIMM
Memory clock speed	3200 MHz
Memory layout (slots x size)	1 x 8 GB

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	SSD
Total SSDs capacity	500 GB
Number of SSDs installed	1
SSD capacity	500 GB
NVMe	Yes
SSD interface	PCI Express
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card	Yes
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel UHD Graphics 730

Audio

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	2.5 W
Audio chip	Realtek ALC897

Camera

Specification	Value
Built-in camera	Yes
Camera HD type	HD
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	1x1
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.2

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB4 Gen 3x2 ports quantity	0
HDMI ports quantity	2
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes

Design

Specification	Value
Product colour	Black
Panel mounting interface	100 x 100 mm
VESA mounting	Yes

Performance

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel H610

Software

Specification	Value
Operating system installed	Windows 11 Pro
Bundled software	FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)

Power

Specification	Value
AC adapter power	120 W

Weight & dimensions

Specification	Value
Width (with stand)	499.2 mm
Depth (with stand)	209.4 mm
Height (with stand)	373 mm
Weight (with stand)	5.9 kg
Package width	582 mm
Package depth	237 mm
Package height	499 mm
Package weight	9.02 kg

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 85%

Other features

Specification	Value
Warranty period	3 year(s)
