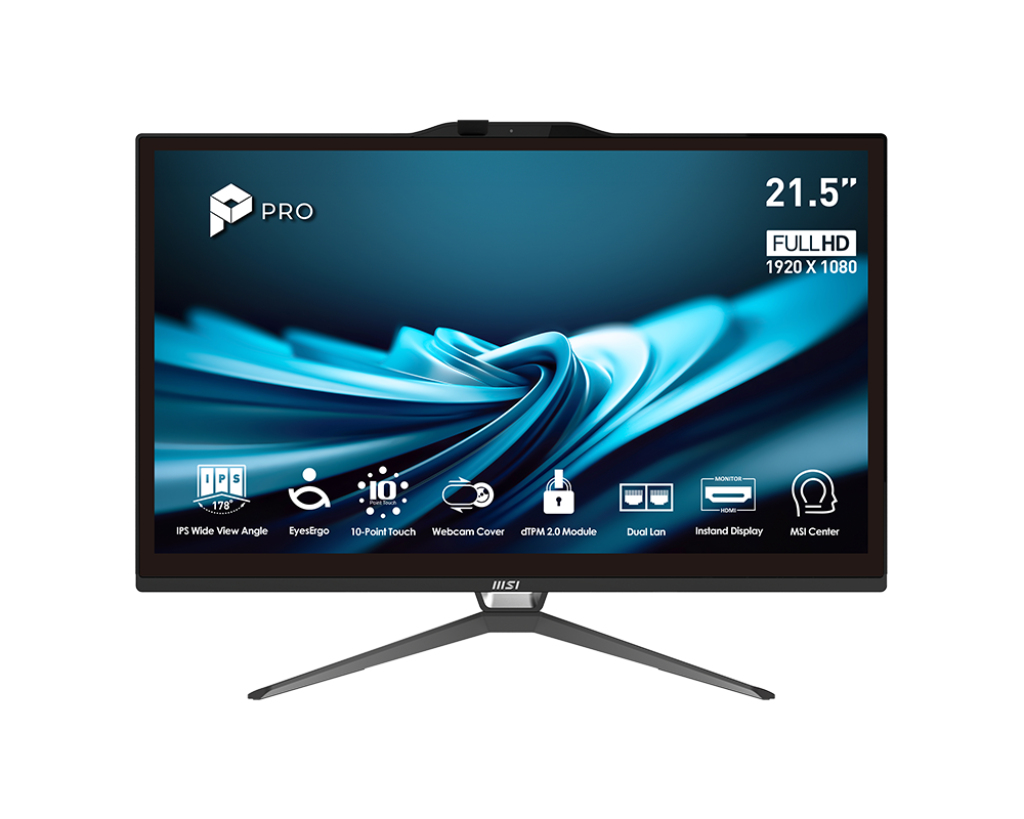

MSI PRO AP222T 14M-058IT

PRO AP222T 14M-058IT

Model PRO AP222T 14M-058ITEAN 4711377355919

98 specifications

Display54.6 cm (21.5")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage256 GB
GraphicsNot available

See all specifications

Overview

Display: 54.6 cm (21.5")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 256 GB
Graphics: Not available

Brand: MSI
Category: All-in-One PCs/Workstations
Model: PRO AP222T 14M-058IT
Part number: PRO AP222T 14M-058IT
EAN / UPC: 4711377355919
Also known as: MSI Pro AP222T 14M-058IT All-in-One PC/workstation Intel® Core™ i5 i5-14400 54.6 cm (21.5") 1920 x 1080 pixels Touchscreen 8 GB DDR4-SDRAM 256 GB SSD Windows 11

Specifications

98 specifications in 16 groups

Display

Specification	Value
Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Native aspect ratio	16:9
Display brightness	250 cd/m²
Panel type	IPS
Anti-glare screen	Yes
Pixel pitch	0.2745 x 0.2745 mm

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	Intel® Core™ i5 (14th gen)
Processor model	i5-14400
Processor cores	10
Processor threads	16
Processor boost frequency	4.7 GHz
Performance cores	6
Efficient cores	4
Performance-core Max Turbo Frequency	4.7 GHz
Efficient-core Max Turbo Frequency	3.5 GHz
Performance-core base frequency	2.5 GHz
Efficient-core base frequency	1.8 GHz
Processor cache	20 MB
Processor cache type	Smart Cache
Maximum turbo power	148 W
Processor base power	65 W

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Memory slots type	SO-DIMM
Memory clock speed	3200 MHz
Memory layout (slots x size)	1 x 8 GB

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
NVMe	Yes
SSD interface	PCI Express 3.0
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card	Yes
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel UHD Graphics 730

Audio

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
Audio chip	Realtek ALC897

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	1 MP
Camera HD type	HD
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Antenna type	1x1
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB4 Gen 3x2 ports quantity	0
HDMI ports quantity	2
HDMI version	2.1
Mini DisplayPorts quantity	1
Headphone outputs	1
DC-in jack	Yes

Design

Specification	Value
Product colour	Black
Cable lock slot	Yes
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
VESA mounting	Yes

Performance

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel H610

Software

Specification	Value
Operating system installed	Windows 11 Pro

Power

Specification	Value
AC adapter power	120 W

Weight & dimensions

Specification	Value
Width (with stand)	499.2 mm
Depth (with stand)	209.4 mm
Height (with stand)	373 mm
Weight (with stand)	5.9 kg

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 85%

Packaging content

Specification	Value
Mouse connectivity	Wired
Mouse included	Yes
Keyboard connectivity	Wired
Keyboard included	Yes
