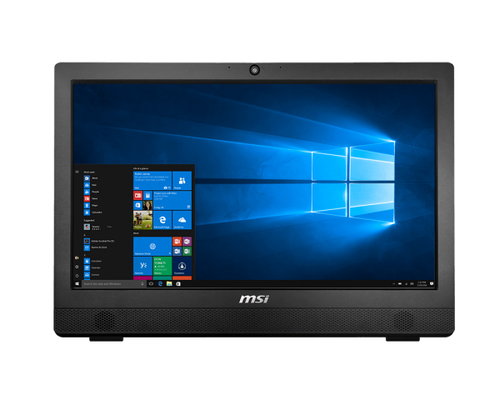

MSI PRO 16 Flex

Model PRO 16 FlexPart no. PRO 16 FLEX 8GL-002X

135 specifications

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Pentium® Silver
Memory4 GB
Storage128 GB
GraphicsNot available

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Pentium® Silver
Memory: 4 GB
Storage: 128 GB
Graphics: Not available

Brand: MSI
Category: All-in-One PCs/Workstations
Model: PRO 16 Flex
Part number: PRO 16 FLEX 8GL-002X
Also known as: MSI Pro 16 Flex Intel® Pentium® Silver N5000 39.6 cm (15.6") 1366 x 768 pixels Touchscreen All-in-One PC 4 GB DDR4-SDRAM 128 GB SSD FreeDOS Black, White

Specifications

135 specifications in 18 groups

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Touchscreen	Yes
HD type	HD
LED backlight	Yes
Touch technology	Multi-touch
Native aspect ratio	16:9
Screen shape	Flat

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium® Silver
Processor model	N5000
Processor cores	4
Processor threads	4
Processor boost frequency	2.7 GHz
Processor frequency	1.1 GHz
Processor cache	4 MB
Processor cache type	L3
Processor socket	BGA 1090
64-bit computing	Yes
Thermal Design Power (TDP)	6 W
Maximum number of PCI Express lanes	6
PCI Express configurations	1x4+1x2, 2x1+1x2+1x2, 4x1
PCI Express slots version	2.0
Processor code	SR3RZ
Processor codename	Gemini Lake
Processor lithography	14 nm
Processor operating modes	32-bit, 64-bit
Scenario Design Power (SDP)	4.8 W
Stepping	B0
Tjunction	105 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	8 GB
Memory types supported by processor	DDR4-SDRAM, LPDDR4-SDRAM
Memory clock speeds supported by processor	2400 MHz
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	8 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory form factor	DIMM/SO-DIMM

Storage

Specification	Value
Total storage capacity	128 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	128 GB
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, Memory Stick (MS), SD

Graphics

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics 605
Maximum on-board graphics card memory	8 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	200 MHz
On-board graphics card burst frequency	750 MHz
On-board graphics card dynamic frequency (max)	750 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x3184
Number of execution units	18

Audio

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W
Built-in microphone	Yes

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	1 MP
Camera HD type	HD
Camera resolution	1280 x 720 pixels
Camera signal format	720p

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
Thunderbolt ports quantity	0
HDMI output ports quantity	1
HDMI ports quantity	0
Headphone outputs	1
Serial ports quantity	1

Design

Specification	Value
Product colour	Black, White
Panel mounting interface	100 x 100 mm
VESA mounting	Yes
Wall mountable	Yes

Performance

Specification	Value
Product type	All-in-One PC
Market positioning	Business
Motherboard chipset	Intel SoC
Placement supported	Horizontal

Software

Specification	Value
Operating system installed	FreeDOS

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Smart Response Technology version	0.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	128990
Processor package size	25 x 24 mm
Thermal Monitoring Technologies	Yes
UART	Yes

Power

Specification	Value
AC adapter power	65 W

Pen

Specification	Value
Pen included	No

Weight & dimensions

Specification	Value
Width (with stand)	381.6 mm
Depth (with stand)	25 mm
Height (with stand)	264 mm
Weight (with stand)	1.89 kg
Package weight	3.35 kg

Packaging content

Specification	Value
Warranty card	Yes
AC adapter included	Yes
Manual	Yes

Other features

Specification	Value
3D	No
Autonomy mode	No
Detachable display	No
