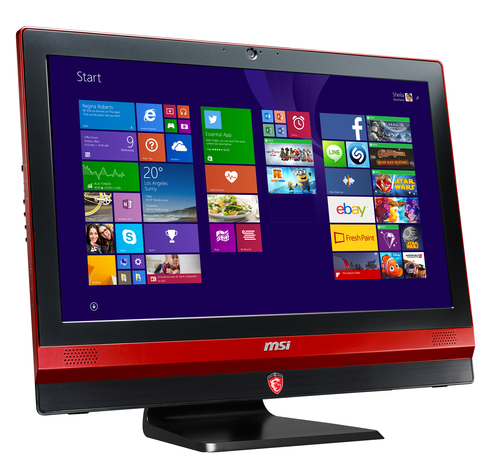

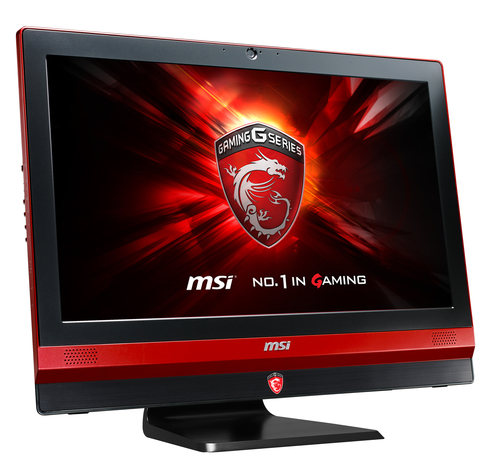

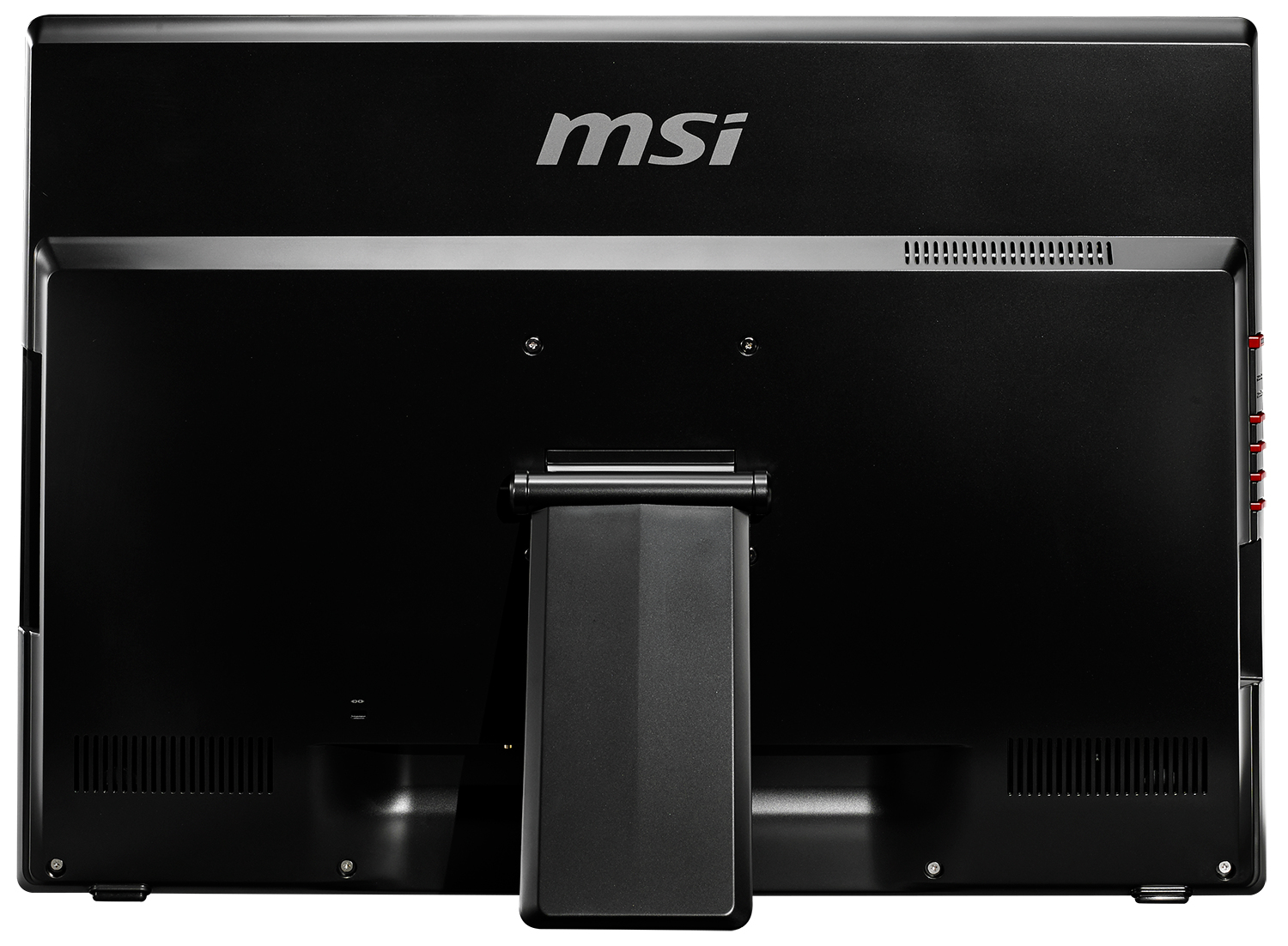

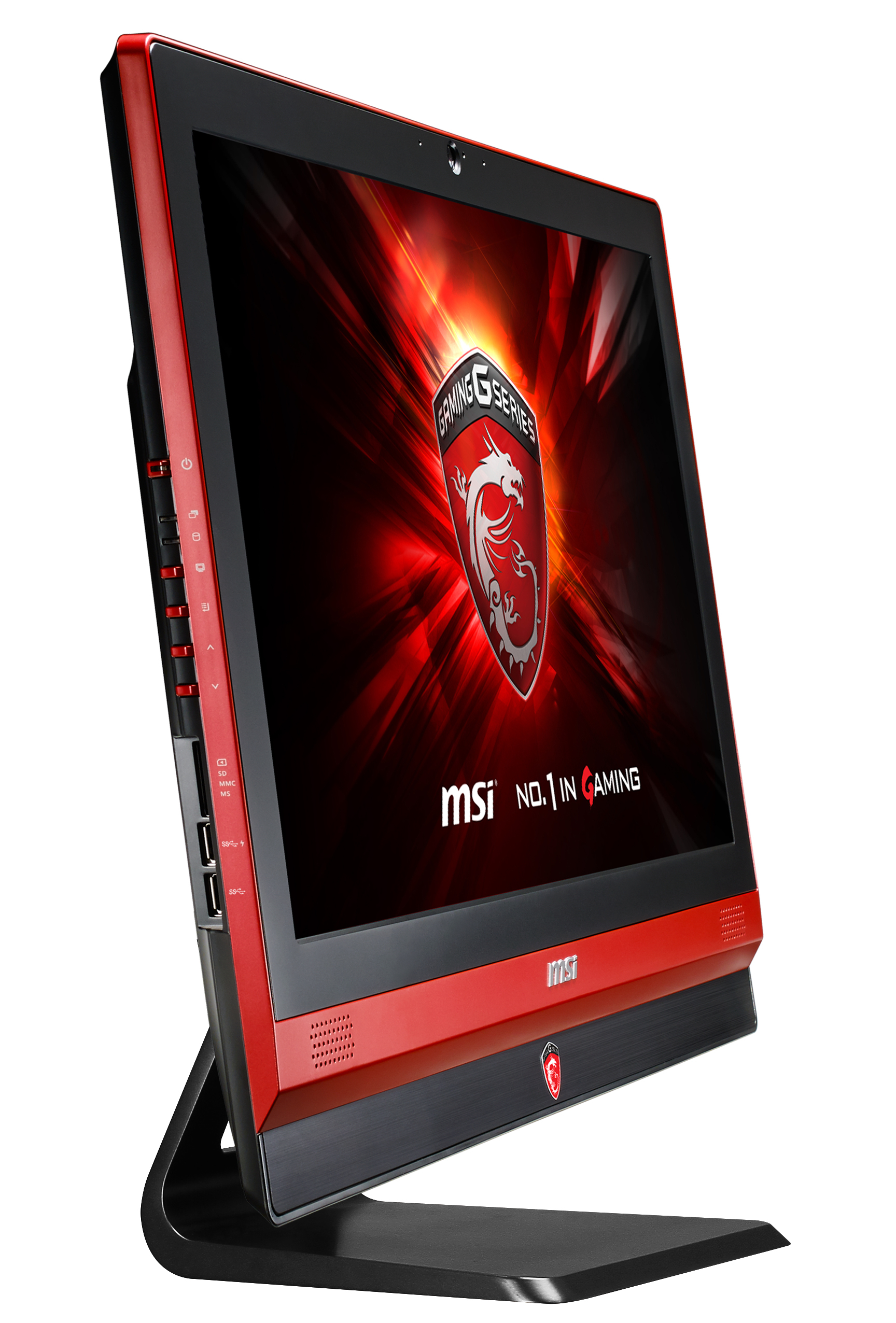

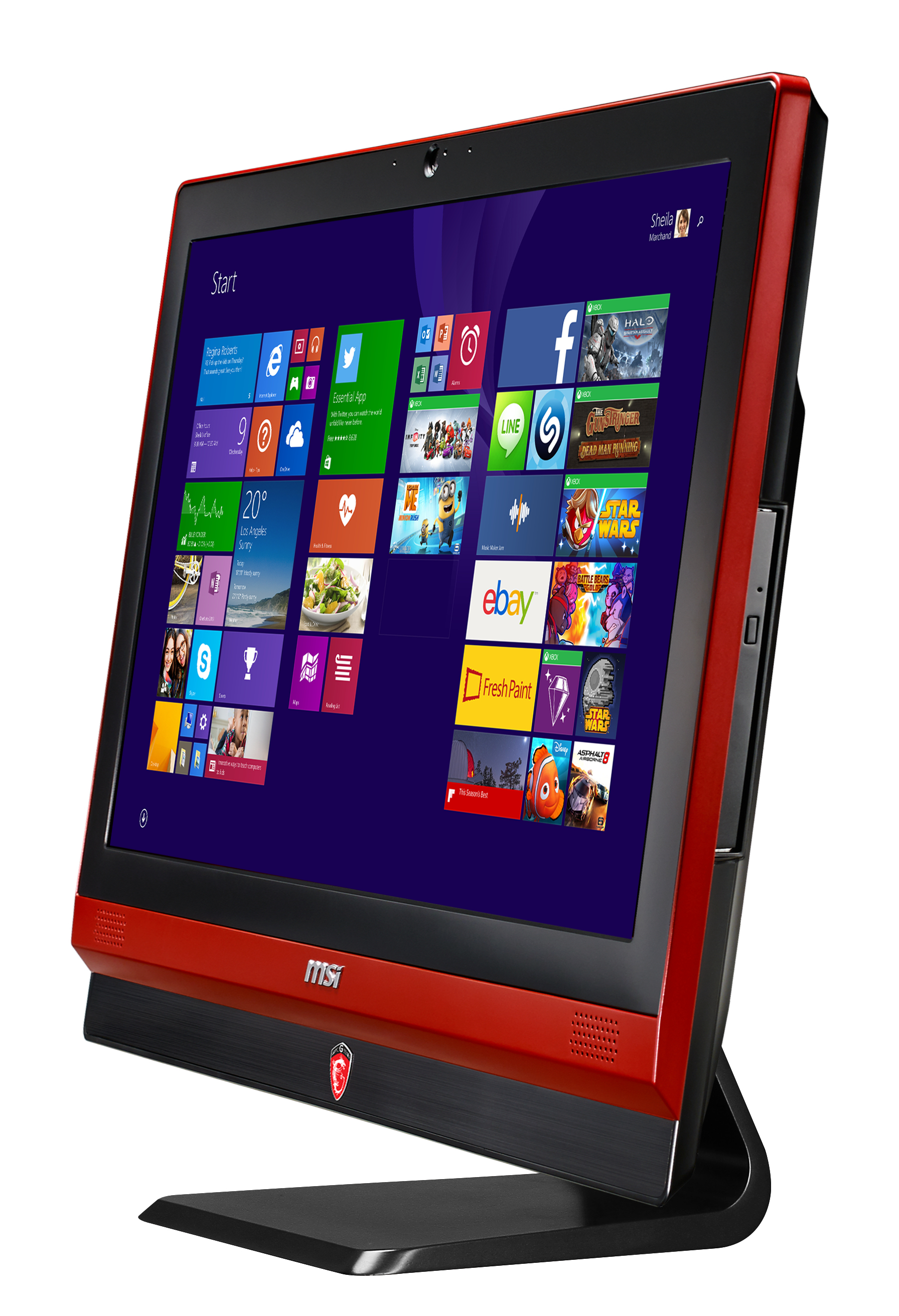

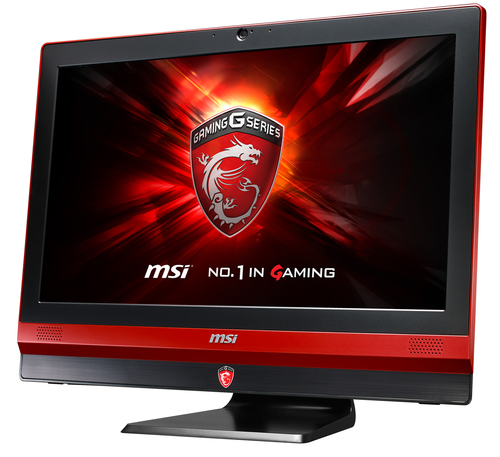

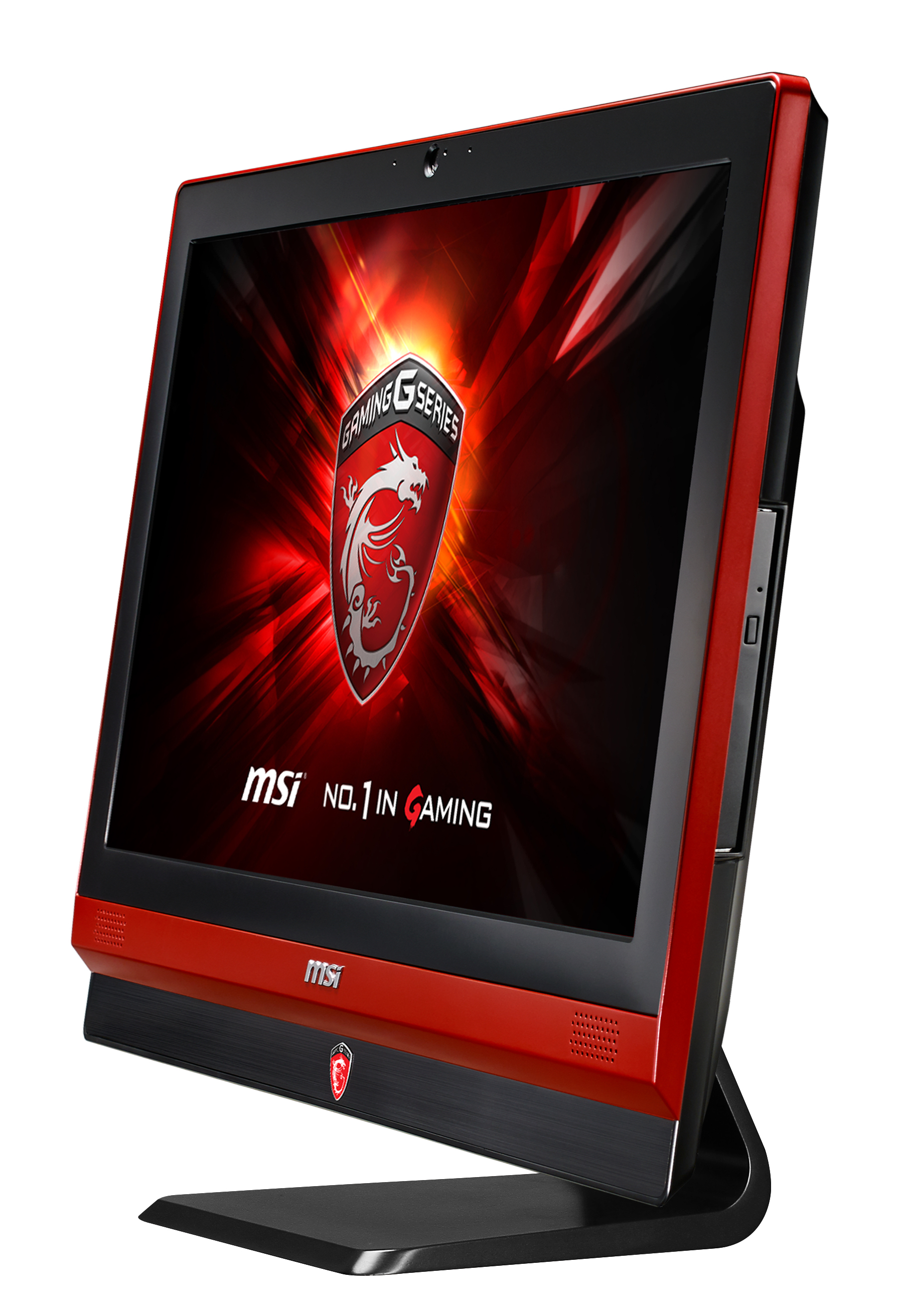

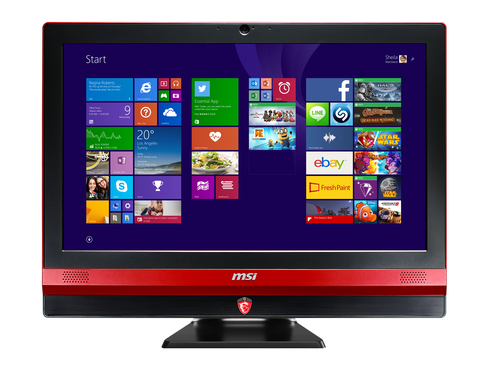

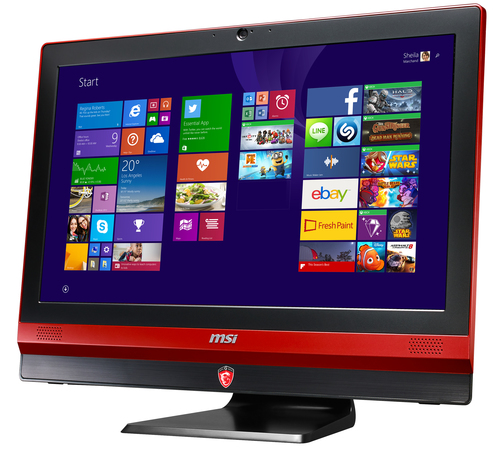

GAMING 24GE 2QE-016US

Model GAMING 24GE 2QE-016USEAN 824142114612

143 specifications

Overview

Brand: MSI
Category: All-in-One PCs/Workstations
Model: GAMING 24GE 2QE-016US
Part number: GAMING 24GE 2QE-016US
EAN / UPC: 824142114612
Also known as: MSI Wind Top GAMING 24GE 2QE-016US All-in-One PC/workstation Intel® Core™ i7 i7-4720HQ 59.9 cm (23.6") 1920 x 1080 pixels 12 GB DDR3L-SDRAM 1 TB HDD NVIDIA® GeF

143 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	4th gen Intel® Core™ i7
Processor model	i7-4720HQ
Processor cores	4
Processor threads	8
Processor boost frequency	3.6 GHz
Processor frequency	2.6 GHz
Processor cache	6 MB
Processor cache type	L3
Processor socket	BGA 1364
System bus rate	5 GT/s
Thermal Design Power (TDP)	47 W
Bus type	DMI2
FSB Parity	No
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Processor code	SR1Q8
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-4700 Mobile series
Stepping	C0
Tjunction	100 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3L-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, SD, SDHC, SDXC

Specification	Value
Discrete graphics card model	NVIDIA® GeForce® GTX 960M
Discrete graphics card memory	2 GB
Discrete graphics memory type	GDDR5
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4600
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	400 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card DirectX version	11.2/12
On-board graphics card ID	0x416
On-board graphics card OpenGL version	4.3

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI ports quantity	2
VGA (D-Sub) ports quantity	1
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel® HM87

Specification	Value
Operating system installed	Windows 8.1
Operating system architecture	64-bit

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	78934
Processor package size	37.5 x 32 x 1.6 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
