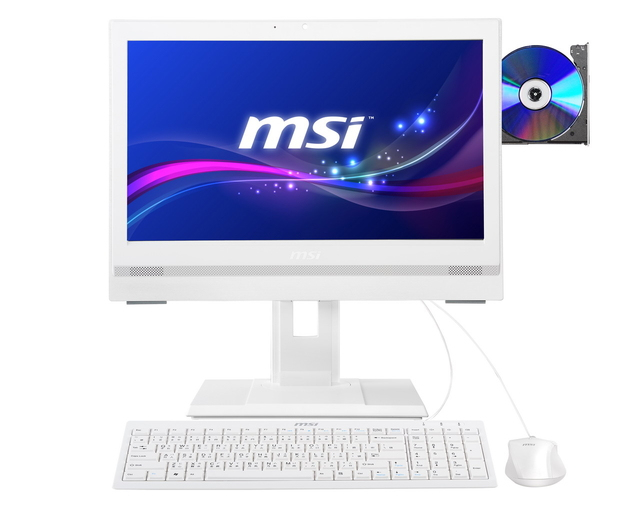

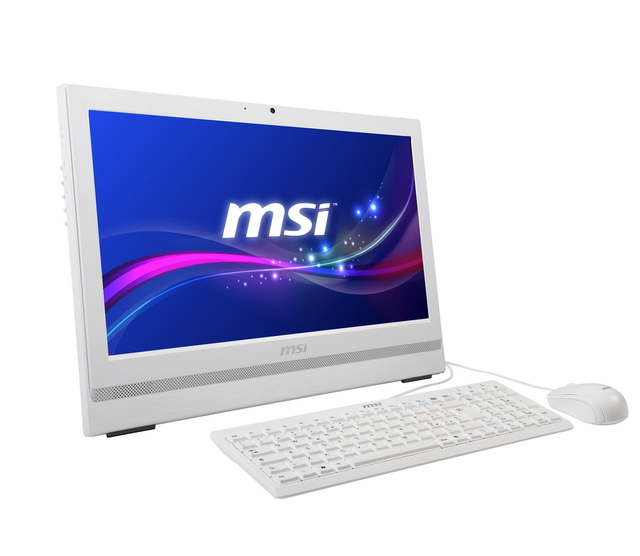

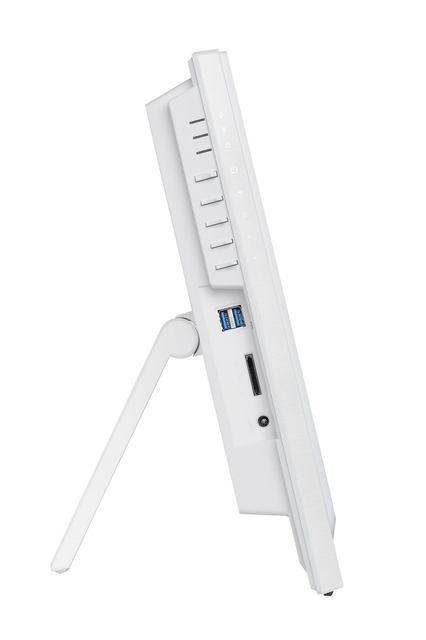

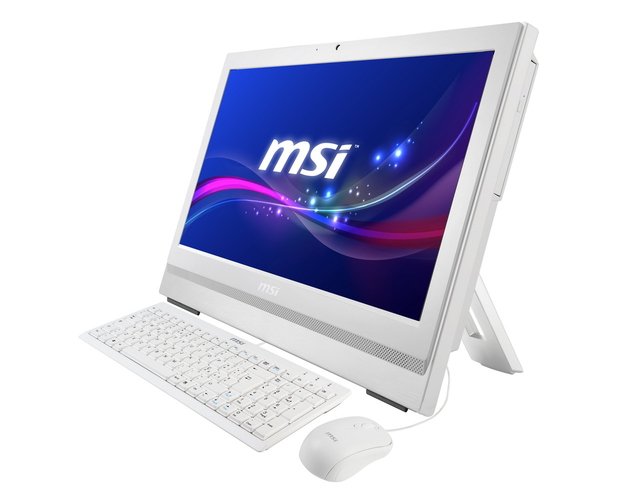

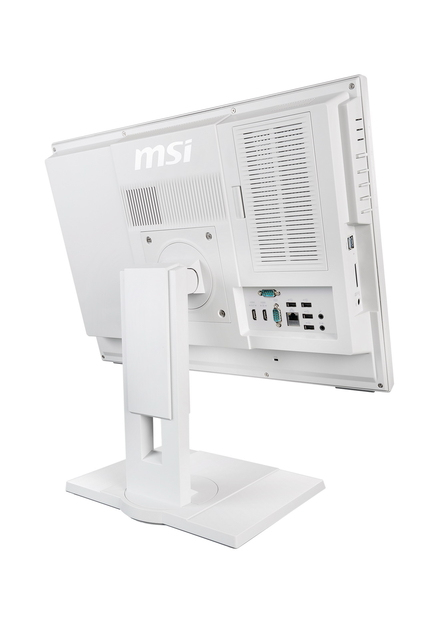

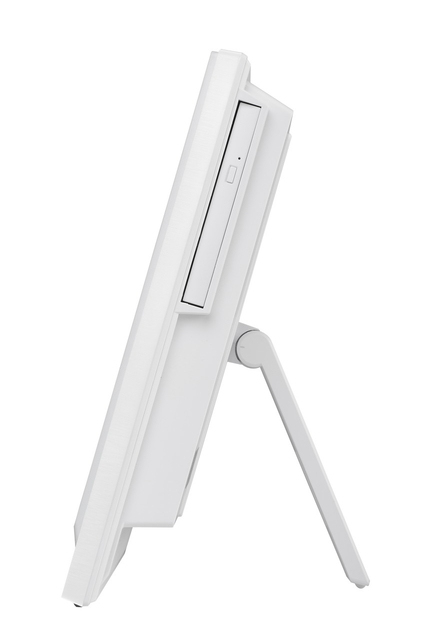

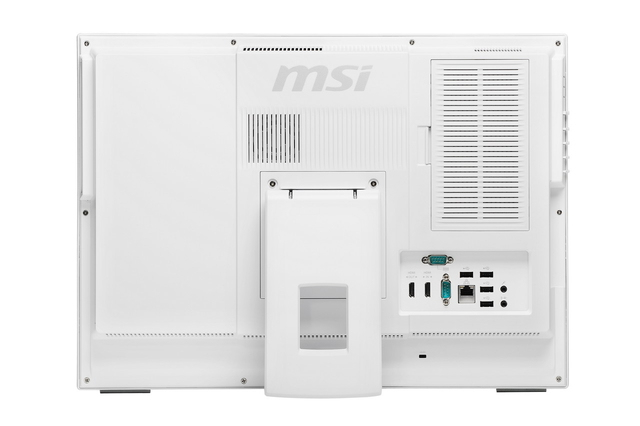

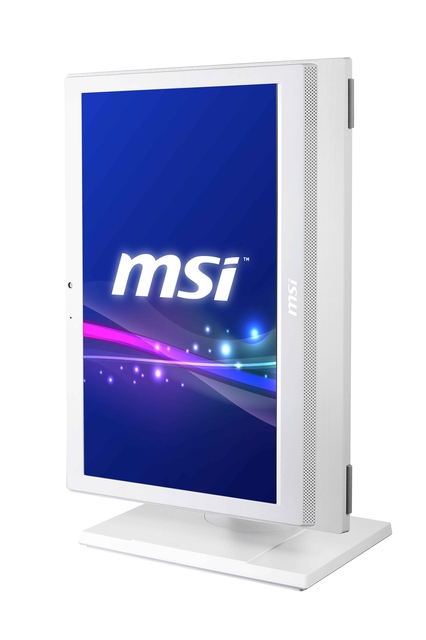

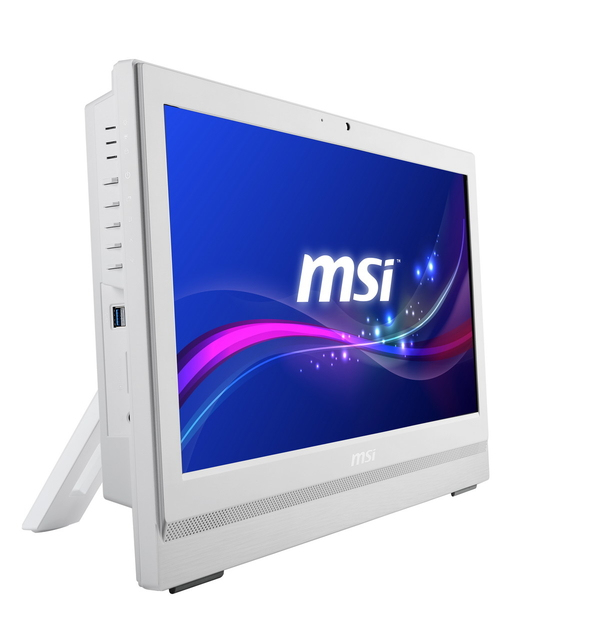

MSI AP2011-G6245W7PW Intel® Pentium® G620
MSI

AP2011-G6245W7PW Intel® Pentium® G620

50.8 cm (20") 1600 x 900 pixels Touchscreen All-in-One PC 4 GB DDR3-SDRAM 500 GB HDD Windows 7 Professional White

Model AP2011-G6245W7PWPart no. 00AA7112-SKU1PEAN 4719072243296

143 specifications
  • Display50.8 cm (20")
  • Resolution1600 x 900 pixels
  • ProcessorIntel® Pentium®
  • Memory4 GB
  • Storage500 GB
  • GraphicsNot available
See all specifications

Overview

Display
50.8 cm (20")
Resolution
1600 x 900 pixels
Processor
Intel® Pentium®
Memory
4 GB
Storage
500 GB
Graphics
Not available
Brand
MSI
Model
AP2011-G6245W7PW
Part number
00AA7112-SKU1P
EAN / UPC
4719072243296
Also known as
MSI AP2011-G6245W7PW Intel® Pentium® G620 50.8 cm (20") 1600 x 900 pixels Touchscreen All-in-One PC 4 GB DDR3-SDRAM 500 GB HDD Windows 7 Professional White

Specifications

143 specifications in 19 groups

Display

Display diagonal50.8 cm (20")
Display resolution1600 x 900 pixels
TouchscreenYes
HD typeHD+
Full HDNo
LED backlightYes
Touch technologyMulti-touch
Native aspect ratio16:9
Display brightness250 cd/m²
Contrast ratio (typical)1000:1
Display number of colours16.78 million colours
Viewing angle, horizontal170°
Viewing angle, vertical160°

Processor

Processor manufacturerIntel
Processor familyIntel® Pentium®
Processor modelG620
Processor cores2
Processor threads2
Processor frequency2.6 GHz
Processor cache3 MB
Processor cache typeSmart Cache
Processor socketLGA 1155 (Socket H2)
System bus rate5 GT/s
Thermal Design Power (TDP)65 W
Bus typeDMI
CPU multiplier (bus/core ratio)26
PCI Express slots version2.0
Processor codeSR05R
Processor codenameSandy Bridge
Processor lithography32 nm
Processor operating modes64-bit
Processor seriesIntel Pentium G600 Series for Desktop
SteppingQ0
Tcase69.1 °C
Maximum internal memory supported by processor32 GB
Memory types supported by processorDDR3-SDRAM
Memory clock speeds supported by processor1066 MHz
Memory bandwidth supported by processor (max)17 GB/s
Memory channels supported by processorDual

Memory

Internal memory4 GB
Internal memory typeDDR3-SDRAM
Maximum internal memory8 GB
Memory slots2
Memory clock speed1333 MHz
Memory layout (slots x size)2 x 2 GB

Storage

Total storage capacity500 GB
Storage mediaHDD
Number of HDDs installed1
HDD capacity500 GB
HDD speed7200 RPM
HDD size3.5"
HDD interfaceSATA II
Optical drive typeDVD Super Multi
Card reader integratedYes
Compatible memory cardsMemory Stick (MS), miniSD, MMC, MS PRO, SD, xD

Graphics

Discrete graphics card modelNot available
On-board graphics cardYes
On-board graphics card familyIntel® HD Graphics
On-board graphics card modelIntel® HD Graphics
Number of displays supported (on-board graphics)2
On-board graphics card base frequency850 MHz
On-board graphics card dynamic frequency (max)1100 MHz

Audio

Built-in microphoneYes

Camera

Built-in cameraYes
Total megapixels0.3 MP

Network

Wi-FiYes
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
BluetoothNo

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
HDMI ports quantity2
VGA (D-Sub) ports quantity0
DVI portNo
Headphone outputs1
Microphone inYes
Combo headphone/mic portNo
DC-in jackYes
ExpressCard slotNo
Mini PCI Express slots2
S/PDIF out portNo

Design

Product colourWhite
Cable lock slotYes
Cable lock slot typeKensington

Performance

Product typeAll-in-One PC
Motherboard chipsetIntel® H61

Software

Operating system installedWindows 7 Professional
Operating system architecture64-bit

Processor special features

CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Dual Display Capable TechnologyYes
Intel Enhanced Halt StateYes
Intel FDI TechnologyYes
Intel Fast Memory AccessYes
Intel Flex Memory AccessYes
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)No
Intel® AES New Instructions (Intel® AES-NI)No
Intel® Clear Video HD Technology (Intel® CVT HD)No
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Identity Protection Technology (Intel® IPT)No
Intel® InTru™ 3D TechnologyNo
Intel® Insider™No
Intel® Quick Sync Video TechnologyNo
Intel® Small Business Advantage (Intel® SBA)No
Intel® Smart Response TechnologyNo
Intel® Turbo Boost TechnologyNo
Intel® Wireless Display (Intel® WiDi)No
Processor ARK ID53480
Processor package size37.5 x 37.5 mm
Supported instruction setsSSE4.1, SSE4.2
Thermal Monitoring TechnologiesYes

Power

AC adapter power90 W

Weight & dimensions

Width (with stand)495 mm
Depth (with stand)91 mm
Height (with stand)359 mm
Weight (with stand)7.3 kg

Operational conditions

Operating temperature (T-T)10 - 35 °C
Storage temperature (T-T)-20 - 60 °C

Certificates

CertificationUL, CB; EMC: CE, FCC, CCC, BSMI, GOST, TUV, KCC

Packaging content

Mouse includedYes
Keyboard includedYes
Cables includedAC

Other features

3DNo
Graphics card familyIntel
COM ports quantity2
Cabling technology10/100/1000Base-T(X)
Chassis typeAll-in-One
Display includedYes
Megapixel (approx.)0.3 MP
Networking featuresGigabit Ethernet, WLAN
Number of processors installed1
Power supply90 W
SpeakersYes
Storage drive interfaceSerial ATA II
