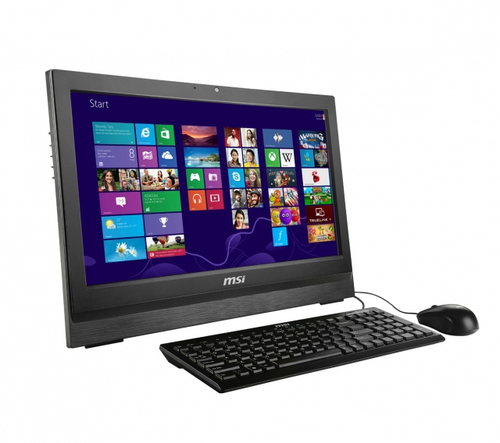

MSI Wind Top Professional AP200-070RU All-in-One PC/workstation Intel Pentium G G3240

50.8 cm (20") 1600 x 900 pixels 4 GB DDR3-SDRAM 500 GB HDD FreeDOS Wi-Fi 4

Model AP200-070RUEAN 4719072352165

140 specifications

Display50.8 cm (20")
Resolution1600 x 900 pixels
ProcessorIntel Pentium G
Memory4 GB
Storage500 GB
GraphicsNot available

See all specifications

Overview

Display: 50.8 cm (20")
Resolution: 1600 x 900 pixels
Processor: Intel Pentium G
Memory: 4 GB
Storage: 500 GB
Graphics: Not available

Brand: MSI
Category: All-in-One PCs/Workstations
Model: AP200-070RU
Part number: AP200-070RU
EAN / UPC: 4719072352165
Also known as: MSI Wind Top Professional AP200-070RU All-in-One PC/workstation Intel Pentium G G3240 50.8 cm (20") 1600 x 900 pixels 4 GB DDR3-SDRAM 500 GB HDD FreeDOS Wi-Fi 4

Specifications

140 specifications in 17 groups

Display

Specification	Value
Display diagonal	50.8 cm (20")
Display resolution	1600 x 900 pixels
HD type	HD+
Full HD	No
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium G
Processor model	G3240
Processor cores	2
Processor threads	2
Processor frequency	3.1 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	LGA 1150 (Socket H3)
System bus rate	5 GT/s
Thermal Design Power (TDP)	54, 53
Bus type	DMI
FSB Parity	No
Maximum number of PCI Express lanes	16
Number of QPI links	0
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Processor code	SR1K6
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Pentium G3000 series for Desktop
Stepping	C0
Tcase	72 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333 MHz
Memory bandwidth supported by processor (max)	21.3 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	16 GB
Memory slots	2
Memory slots type	SO-DIMM

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD interface	SATA III
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, SD

Graphics

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Maximum on-board graphics card memory	1.024 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	11.1

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	6 W
Built-in microphone	Yes

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	1 MP

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Thunderbolt ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
Mini PCI Express slots	2
Serial ports quantity	2

Design

Specification	Value
Product colour	Black
Cable lock slot	Yes
Cable lock slot type	Kensington
Wall mountable	Yes

Performance

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel® H81

Software

Specification	Value
Operating system installed	FreeDOS

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	80796
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013C

Power

Specification	Value
AC adapter power	120 W

Weight & dimensions

Specification	Value
Width (with stand)	495 mm
Depth (with stand)	91 mm
Height (with stand)	359 mm
Weight (with stand)	9.76 kg
Package weight	10.8 kg

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No
AC adapter included	Yes

Other features

Specification	Value
Intel® Virtualization Technology (Intel® VT)	VT-x
Storage drive interface	Serial ATA III
