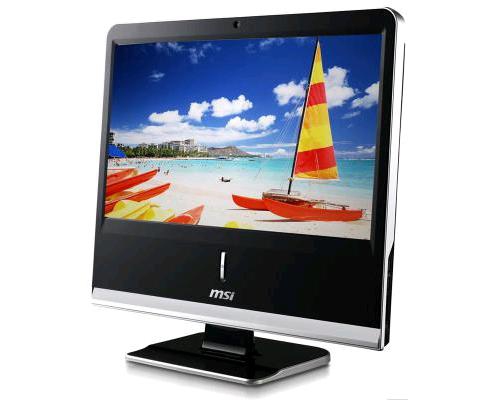

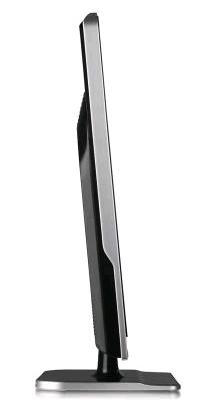

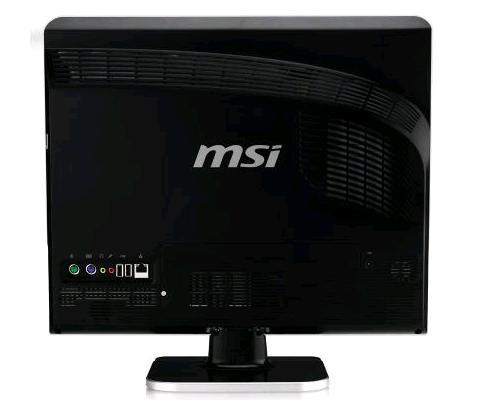

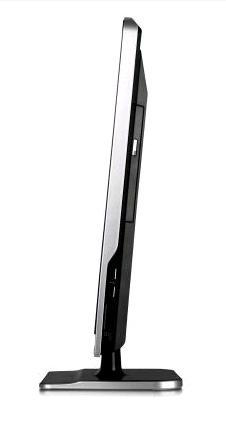

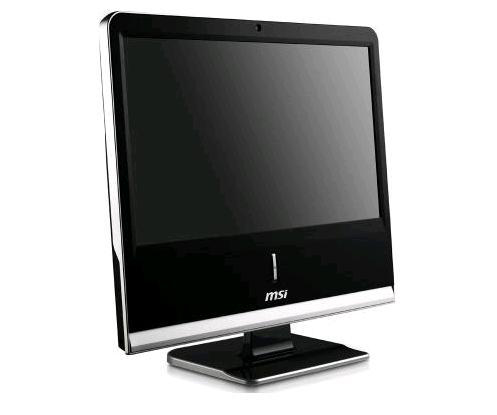

Wind Top Professional AP1920-D5223W7H Intel Atom® D525

47 cm (18.5") 1366 x 768 pixels All-in-One PC 2 GB DDR3-SDRAM 320 GB HDD Windows 7 Home Premium Black

Model AP1920-D5223W7HPart no. 00A91212-SKU3EAN 4719072207526

136 specifications

Overview

Brand: MSI
Category: All-in-One PCs/Workstations
Model: AP1920-D5223W7H
Part number: 00A91212-SKU3
EAN / UPC: 4719072207526
Also known as: MSI Wind Top Professional AP1920-D5223W7H Intel Atom® D525 47 cm (18.5") 1366 x 768 pixels All-in-One PC 2 GB DDR3-SDRAM 320 GB HDD Windows 7 Home Premium Black

136 specifications in 19 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D525
Processor cores	2
Processor threads	4
Processor frequency	1.8 GHz
Processor cache	1 MB
Processor cache type	L2
Processor socket	BGA 559
Thermal Design Power (TDP)	13 W
Bus type	DMI
FSB Parity	No
Number of Processing Die Transistors	176 M
Processing Die size	87 mm²
Processor code	SLBXC
Processor codename	Pineview
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Atom D500 Series
Stepping	B0
Tjunction	100 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	4 GB
Memory types supported by processor	DDR3 800 (SODIMM only); DDR2 667/800
Memory bandwidth supported by processor (max)	6.4 GB/s
Memory channels supported by processor	Single
ECC supported by processor	No

Specification	Value
Total storage capacity	320 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	320 GB
HDD speed	5400 RPM
HDD size	2.5"
HDD interface	SATA II
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), miniSD, MMC, SD, xD

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes

Specification	Value
Built-in microphone	Yes

Specification	Value
Built-in camera	Yes

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
DVI port	No
Headphone outputs	1
Microphone in	Yes
Combo headphone/mic port	No
DC-in jack	Yes
ExpressCard slot	No
PS/2 ports quantity	2
S/PDIF out port	No

Specification	Value
Product colour	Black, Silver

Specification	Value
Product type	All-in-One PC

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	32 bit
Processor ARK ID	49490
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	No

Specification	Value
AC adapter power	65 W

Specification	Value
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	10 - 35 °C

Specification	Value
Certification	CE/FCC/CCC/BSMI/GOST/TUV/KCC

Specification	Value
AC adapter included	Yes
Cables included	AC

Specification	Value
3D	No
Graphics card family	Intel
Cabling technology	10/100/1000Base-T(X)
Chassis type	All-in-One
Display included	Yes
Megapixel (approx.)	1.3 MP
Networking features	Gigabit Ethernet
Number of processors installed	1
Power supply	65 W
Speakers	2
Wake-on-LAN ready	Yes
