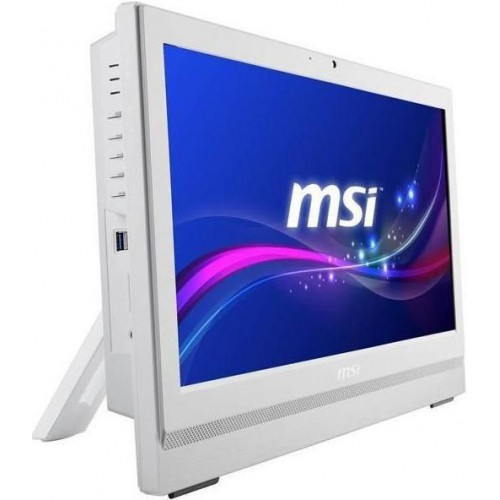

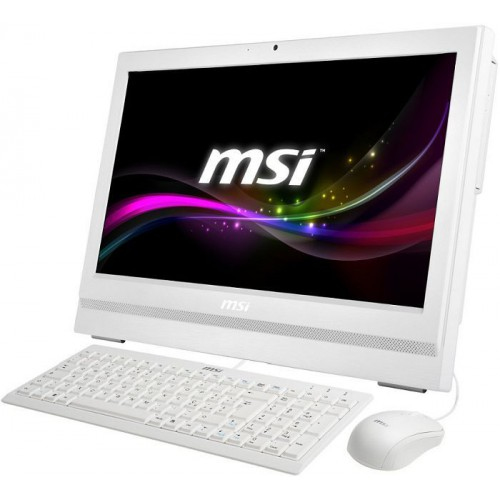

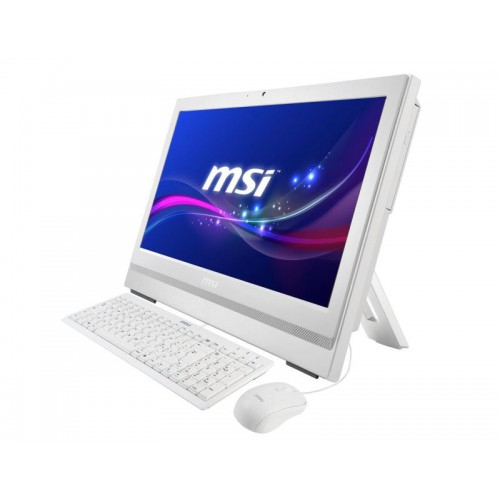

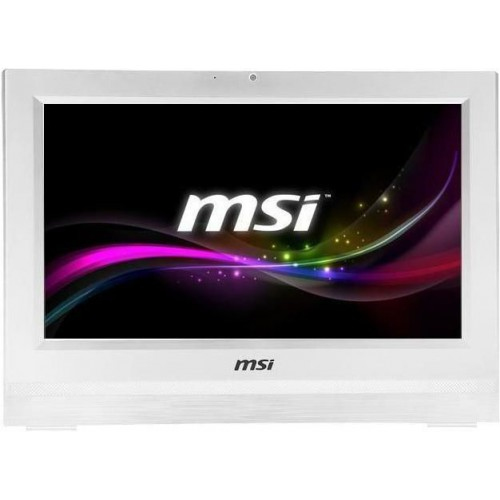

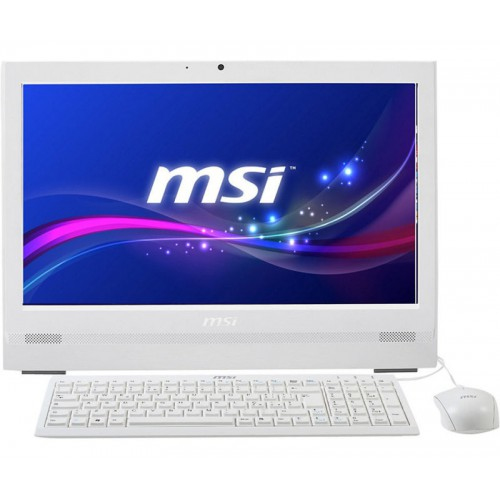

Wind Top Professional AP190-011XRU Intel® Celeron® 1037U
47 cm (18.5") 1366 x 768 pixels All-in-One PC 4 GB DDR3-SDRAM 500 GB HDD FreeDOS Wi-Fi 4 (802.11n)
Model AP190-011XRUPart no. 9S6-A95312-011
144 specifications
- Display47 cm (18.5")
- Resolution1366 x 768 pixels
- ProcessorIntel® Celeron®
- Memory4 GB
- Storage500 GB
- GraphicsNot available
Overview
- Display
- 47 cm (18.5")
- Resolution
- 1366 x 768 pixels
- Processor
- Intel® Celeron®
- Memory
- 4 GB
- Storage
- 500 GB
- Graphics
- Not available
- Brand
- MSI
- Category
- All-in-One PCs/Workstations
- Model
- AP190-011XRU
- Part number
- 9S6-A95312-011
- Also known as
- MSI Wind Top Professional AP190-011XRU Intel® Celeron® 1037U 47 cm (18.5") 1366 x 768 pixels All-in-One PC 4 GB DDR3-SDRAM 500 GB HDD FreeDOS Wi-Fi 4 (802.11n)
Specifications
144 specifications in 19 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 47 cm (18.5") |
| Display resolution | 1366 x 768 pixels |
| HD type | Not supported |
| Full HD | No |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display brightness | 250 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | 1037U |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.8 GHz |
| Processor cache | 2 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1023 |
| System bus rate | 5 GT/s |
| Thermal Design Power (TDP) | 17 W |
| Bus type | DMI |
| CPU multiplier (bus/core ratio) | 18 |
| FSB Parity | No |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 2.0 |
| Processor code | SR108 |
| Processor codename | Ivy Bridge |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Celeron 1000 series for Mobile |
| Stepping | P0 |
| Tjunction | 105 °C |
| Conflict-Free processor | Yes |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM, DDR3L-SDRAM |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Memory channels supported by processor | Dual |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| Maximum internal memory | 4 GB |
| Memory slots | 1 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 1333 MHz |
| Memory layout (slots x size) | 1 x 4 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Storage media | HDD |
| Number of storage drives installed | 1 |
| Number of HDDs installed | 1 |
| HDD speed | 7200 RPM |
| HDD interface | SATA III |
| Optical drive type | DVD Super Multi |
| Card reader integrated | Yes |
| Compatible memory cards | Memory Stick (MS), MMC, SD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1000 MHz |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 6 W |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Total megapixels | 1 MP |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Thunderbolt ports quantity | 0 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| DC-in jack | Yes |
| Serial ports quantity | 2 |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Product type | All-in-One PC |
| Motherboard chipset | Intel® NM70 Express |
Software
| Specification | Value |
|---|---|
| Operating system installed | FreeDOS |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 22 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel HD Graphics | Yes |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 71995 |
| Processor package size | 31 x 24 mm |
| Supported instruction sets | SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter power | 65 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 495 mm |
| Depth (with stand) | 91 mm |
| Height (with stand) | 359 mm |
| Weight (with stand) | 8.1 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Certificates
| Specification | Value |
|---|---|
| Certification | UL/CB, EMC:CE/FCC/C-TICK/VCCI/BSMI |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| Autonomy mode | No |
| Detachable display | No |
| Intel® Virtualization Technology (Intel® VT) | VT-x |
| Storage drive interface | Serial ATA III |
