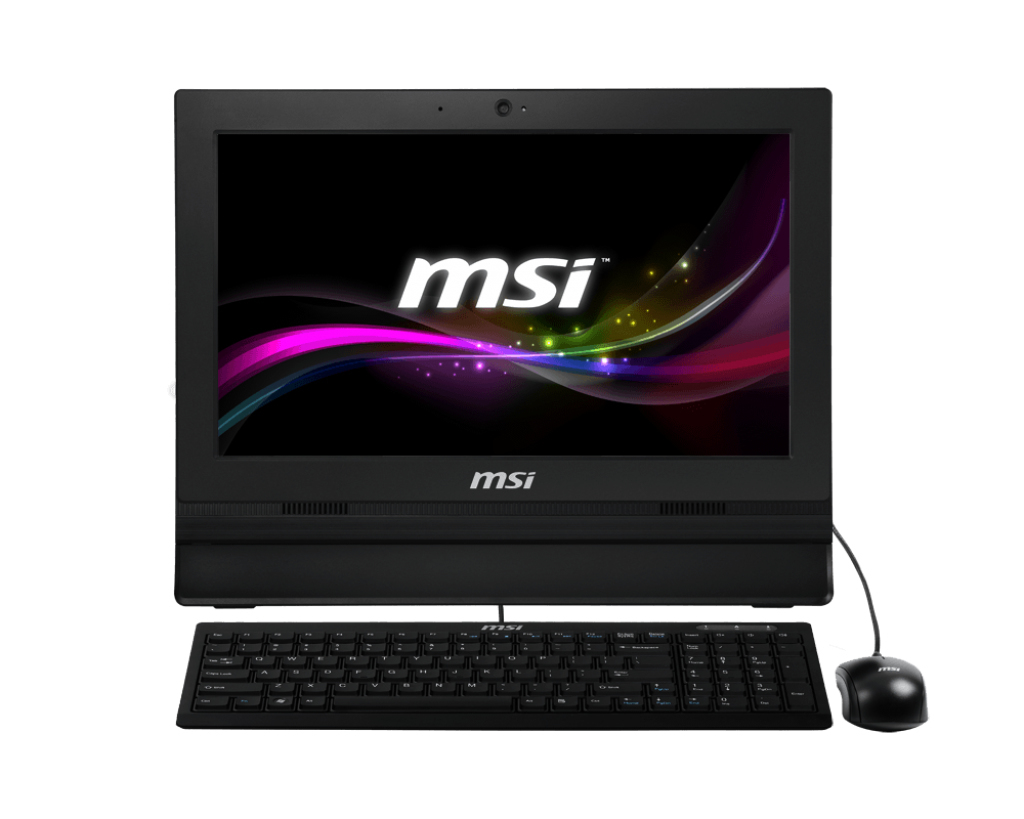

Wind Top Professional AP1622ET-028XEU Intel® Celeron® 1037U

39.6 cm (15.6") 1366 x 768 pixels Touchscreen All-in-One PC 4 GB DDR3-SDRAM 500 GB HDD Wi-Fi 4 (

Model AP1622ET-028XEUPart no. 9S6-A61511-028EAN 4719072439644

142 specifications

Overview

Brand: MSI
Category: All-in-One PCs/Workstations
Model: AP1622ET-028XEU
Part numbers: 9S6-A61511-028, 9S6-A61511-044
EAN / UPC: 4719072439644
Also known as: MSI Wind Top Professional AP1622ET-028XEU Intel® Celeron® 1037U 39.6 cm (15.6") 1366 x 768 pixels Touchscreen All-in-One PC 4 GB DDR3-SDRAM 500 GB HDD Wi-Fi 4 (

142 specifications in 18 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	1037U
Processor cores	2
Processor threads	2
Processor frequency	1.8 GHz
Processor cache	2 MB
Processor cache type	Smart Cache
Processor socket	BGA 1023
System bus rate	5 GT/s
Thermal Design Power (TDP)	17 W
Bus type	DMI
CPU multiplier (bus/core ratio)	18
FSB Parity	No
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	2.0
Processor code	SR108
Processor codename	Ivy Bridge
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Celeron 1000 series for Mobile
Stepping	P0
Tjunction	105 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM, DDR3L-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of storage drives installed	1
Number of storage drives supported	1
Number of HDDs installed	1
HDD capacity	500 GB
HDD speed	5400 RPM
HDD interface	SATA II
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, Memory Stick (MS), SD

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1000 MHz

Specification	Value
Built-in camera	Yes
Total megapixels	0.3 MP

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Thunderbolt 3 ports quantity	0
Thunderbolt ports quantity	0
HDMI ports quantity	0
VGA (D-Sub) ports quantity	1
Headphone outputs	1
Microphone in	Yes
Mini PCI Express slots	1

Specification	Value
Product colour	Black
Wall mountable	Yes

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel® NM70 Express

Specification	Value
Operating system installed	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	71995
Processor package size	31 x 24 mm
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes

Specification	Value
AC adapter power	65 W

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	40 - 85%
Storage relative humidity (H-H)	0 - 90%
