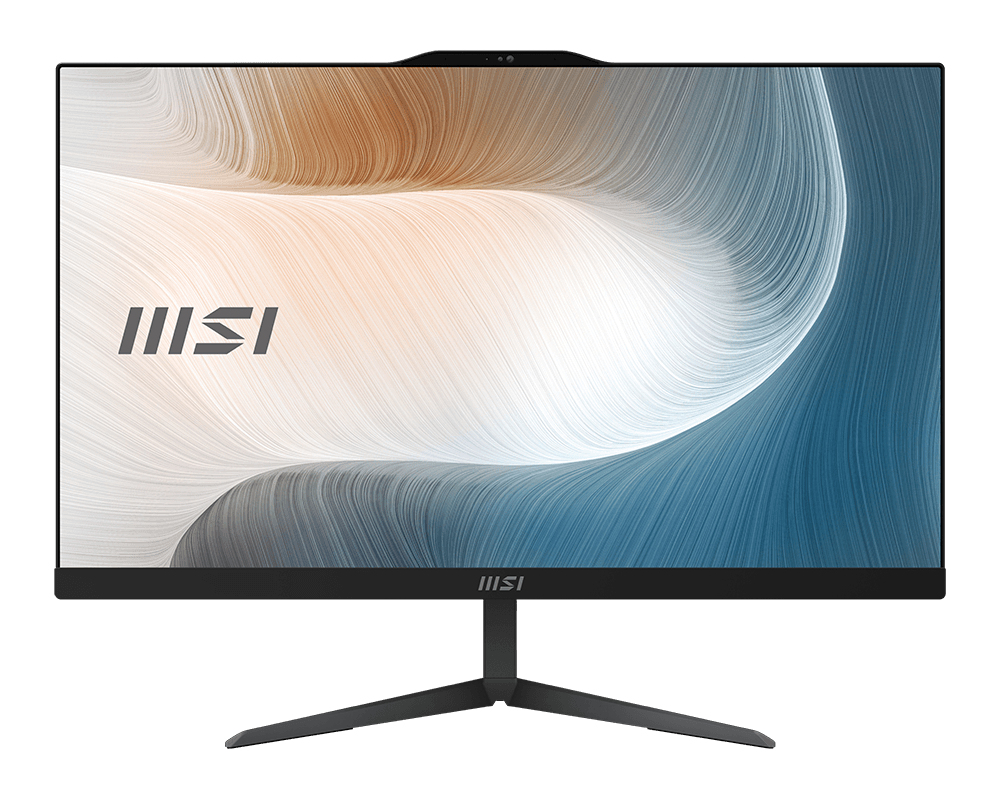

AM242T 12M-406EU
Model AM242T 12M-406EUPart no. MODERN AM242T 12M-406EU
80 specifications
- Display60.5 cm (23.8")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Pentium® Gold
- Memory4 GB
- Storage128 GB
- GraphicsNot available
Overview
- Display
- 60.5 cm (23.8")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Pentium® Gold
- Memory
- 4 GB
- Storage
- 128 GB
- Graphics
- Not available
- Brand
- MSI
- Category
- All-in-One PCs/Workstations
- Model
- AM242T 12M-406EU
- Part number
- MODERN AM242T 12M-406EU
- Also known as
- MSI Modern AM242T 12M-406EU Intel® Pentium® Gold 8505 60.5 cm (23.8") 1920 x 1080 pixels Touchscreen All-in-One PC 4 GB DDR4-SDRAM 128 GB SSD Windows 11 Pro Bla
Specifications
80 specifications in 17 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Panel type | IPS |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 15° |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® Gold |
| Processor model | 8505 |
| Processor cores | 5 |
| Processor boost frequency | 4.4 GHz |
| Performance cores | 1 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 4.4 GHz |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-down | 20 W |
| Maximum turbo power | 55 W |
| Processor base power | 15 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 64 GB |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 3200 MHz |
| Memory layout (slots x size) | 1 x 4 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 128 GB |
| Storage media | SSD |
| Total SSDs capacity | 128 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| NVMe | Yes |
| SSD form factor | M.2 |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 5 W |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Camera HD type | Full HD |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB4 Gen 3x2 ports quantity | 0 |
| HDMI ports quantity | 1 |
| Combo headphone/mic port | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Panel mounting interface | 75 x 75 mm |
| VESA mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Product type | All-in-One PC |
| Motherboard chipset | Intel SoC |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter power | 120 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight (with stand) | 4.65 kg |
| Package weight | 7.35 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CB/CE, UL & CUL, VCCI, RCM |
Other features
| Specification | Value |
|---|---|
| HDMI in | 1 |
