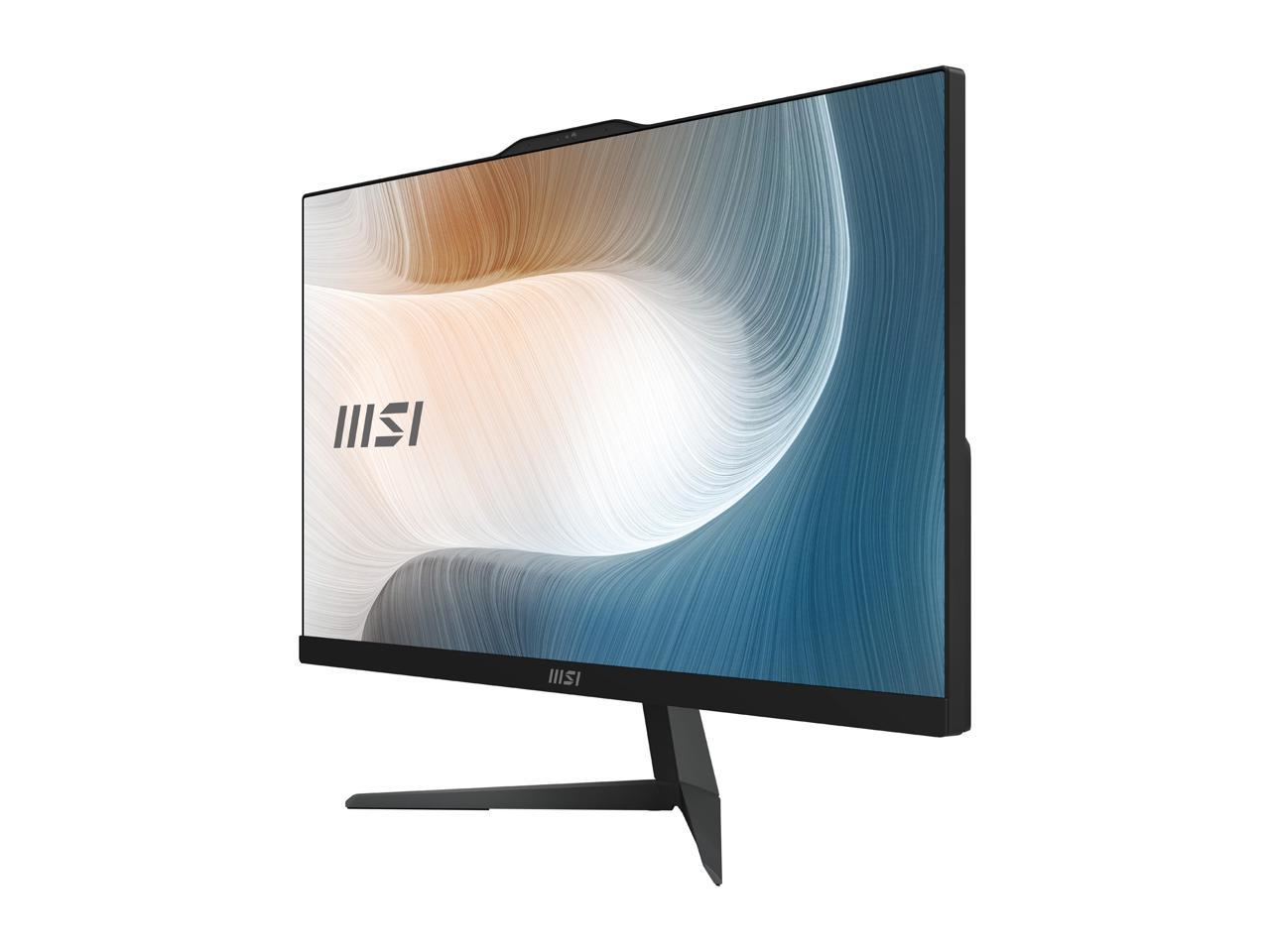

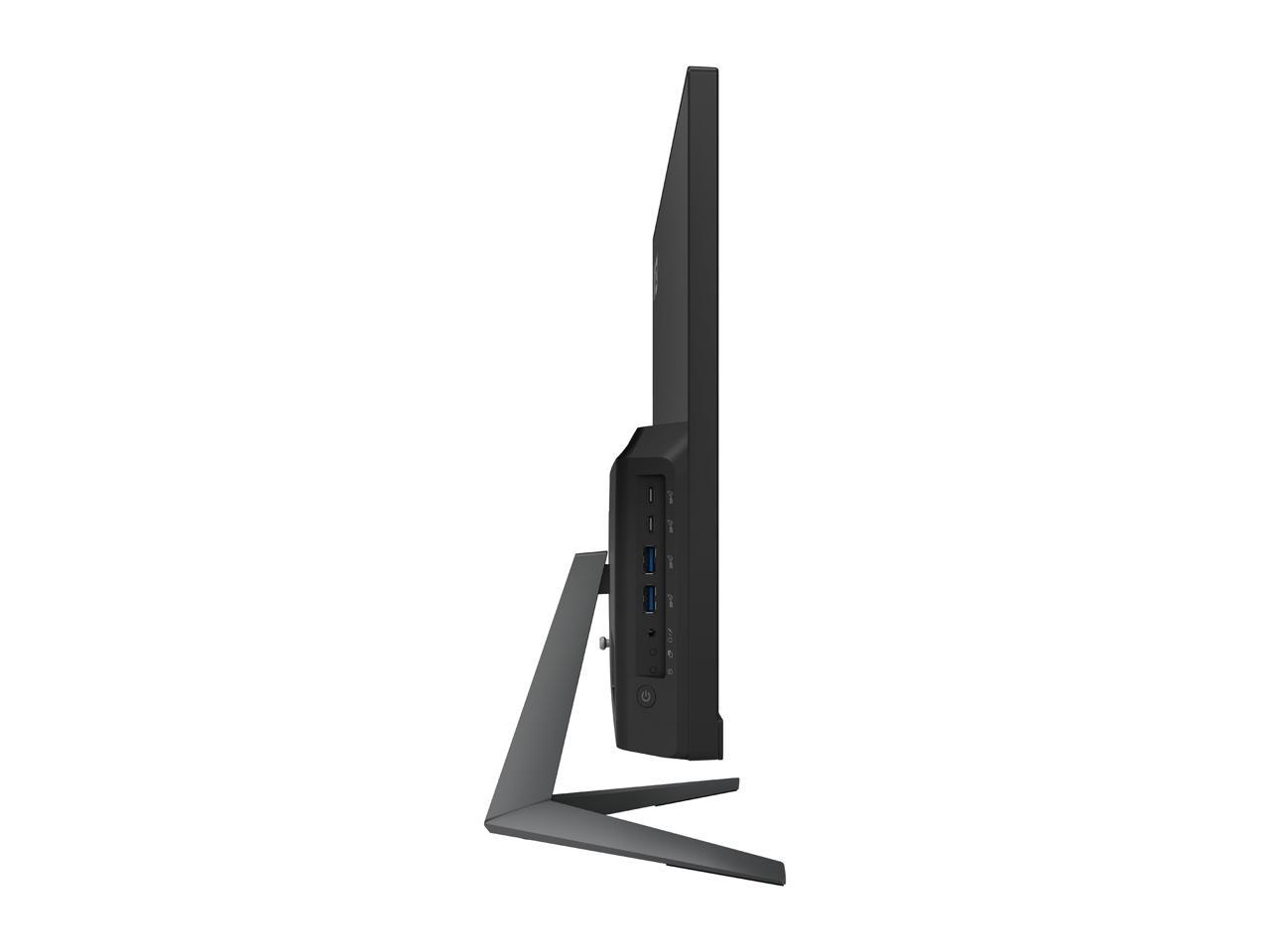

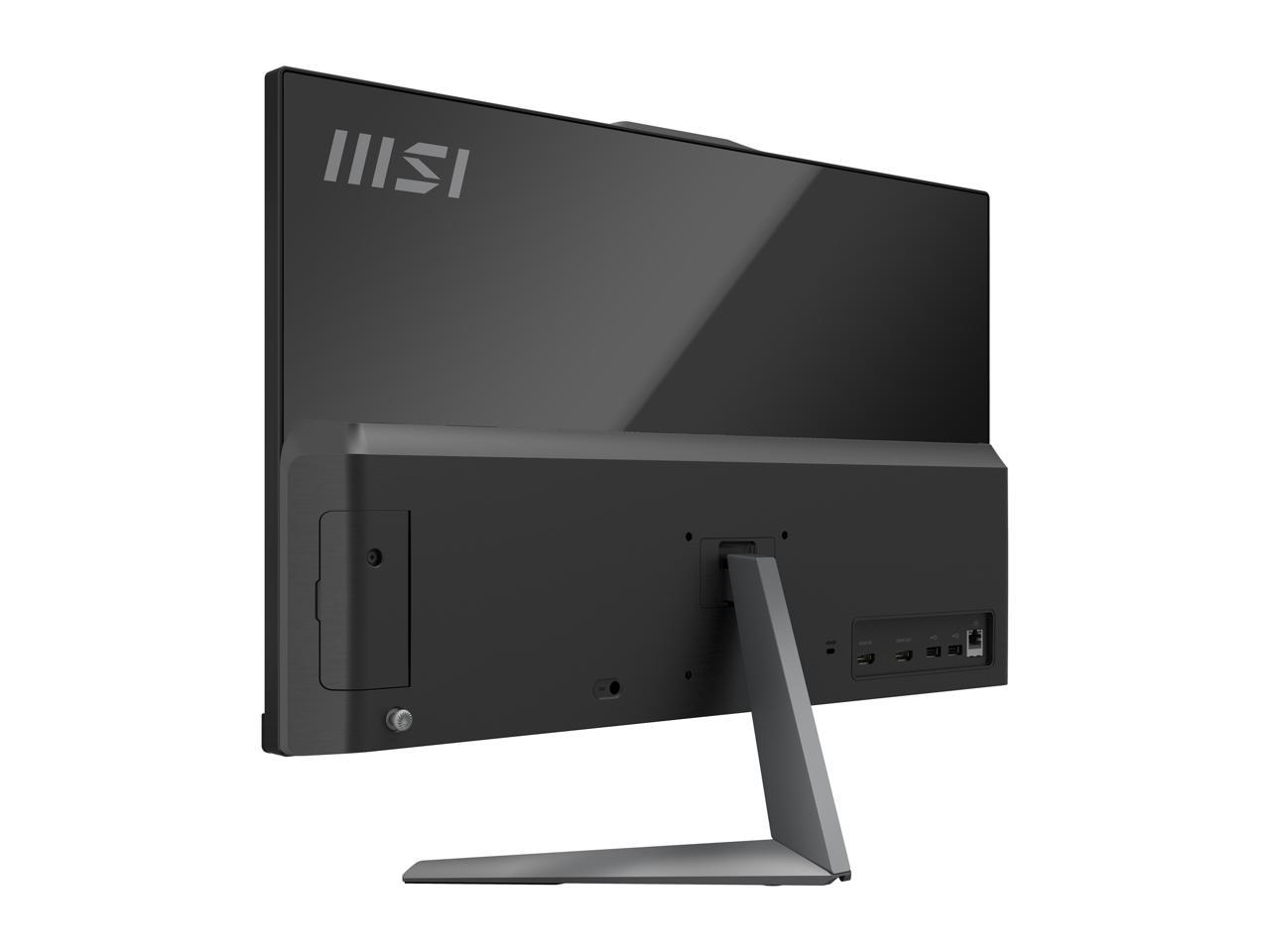

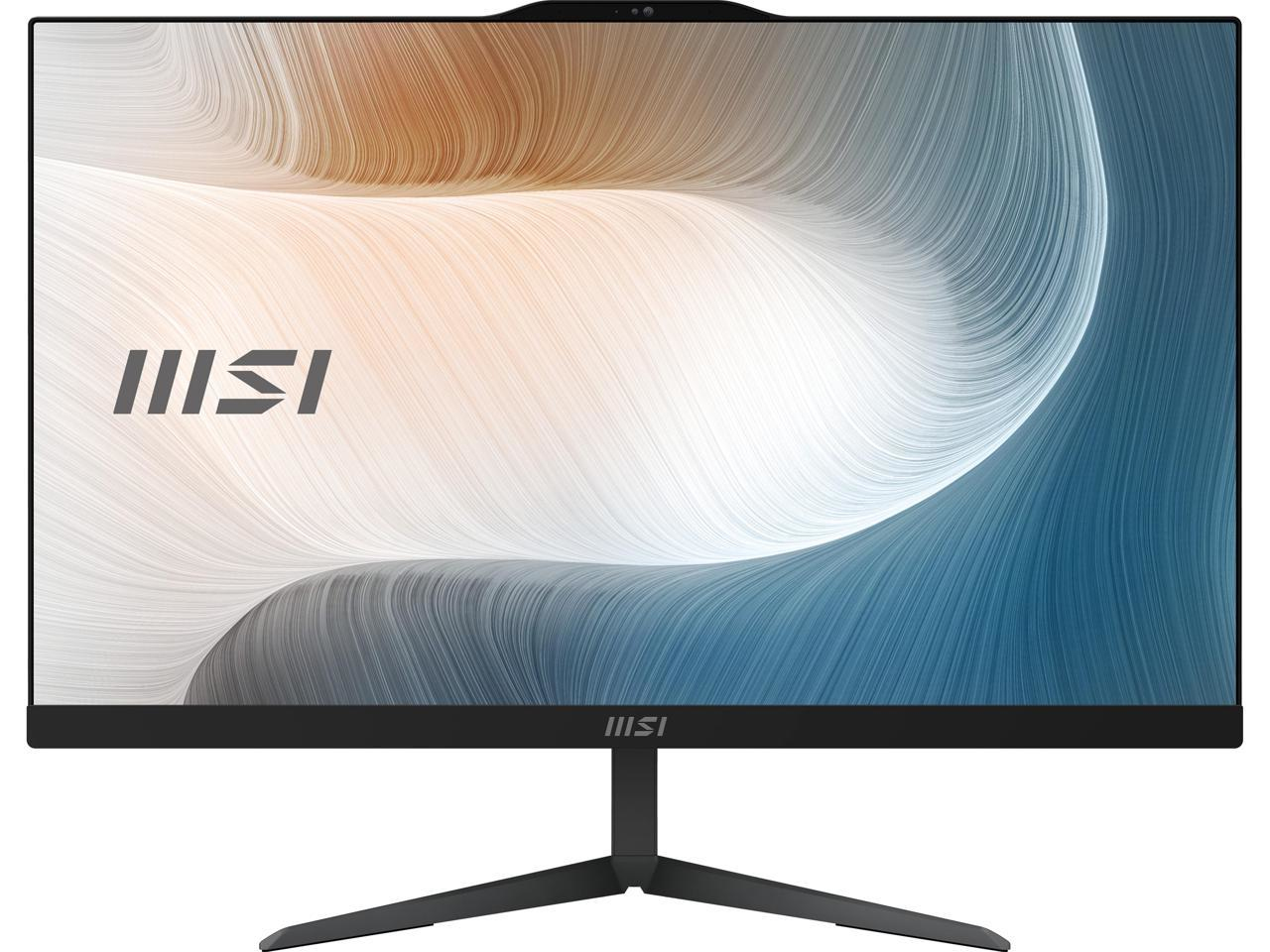

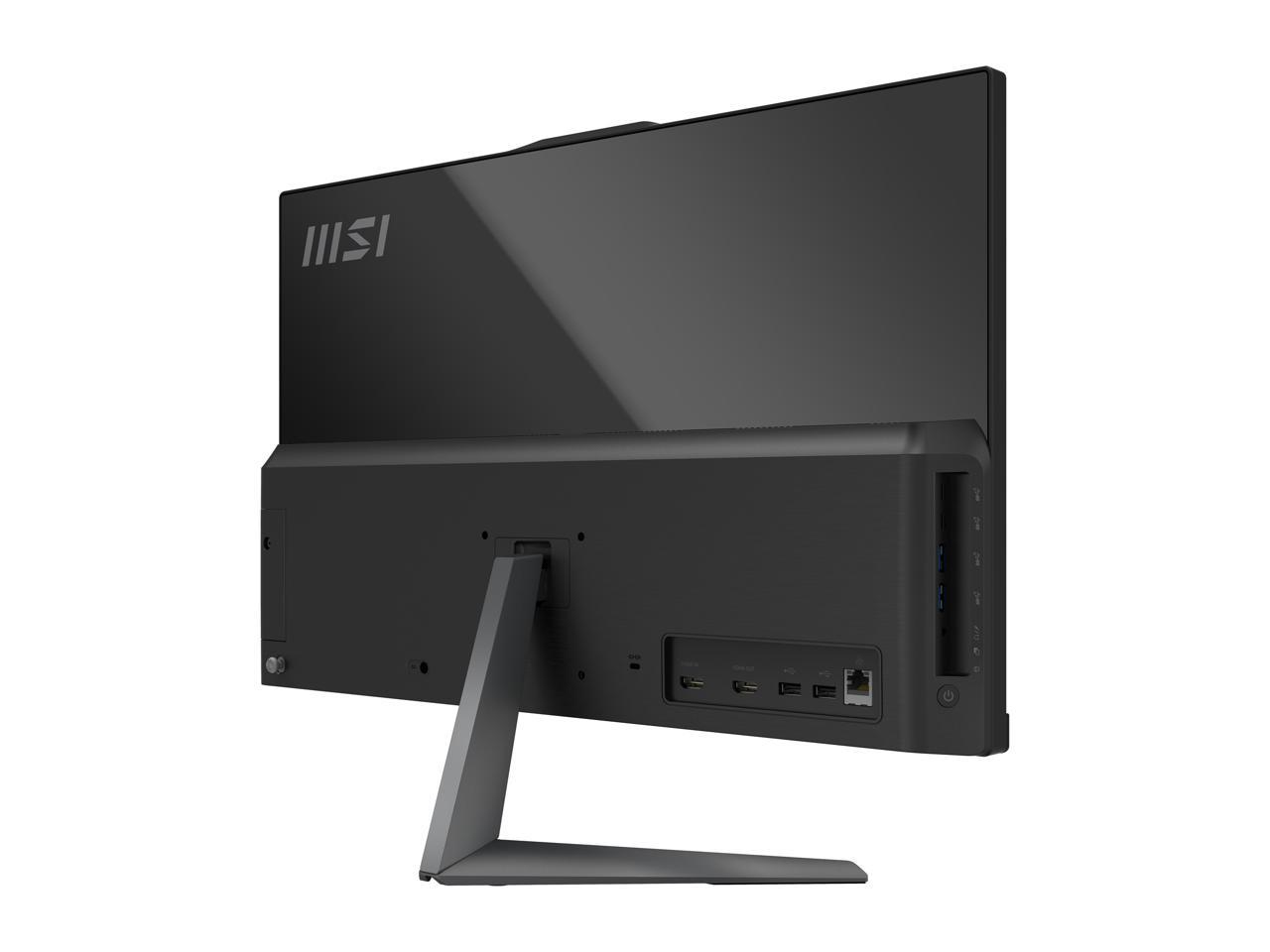

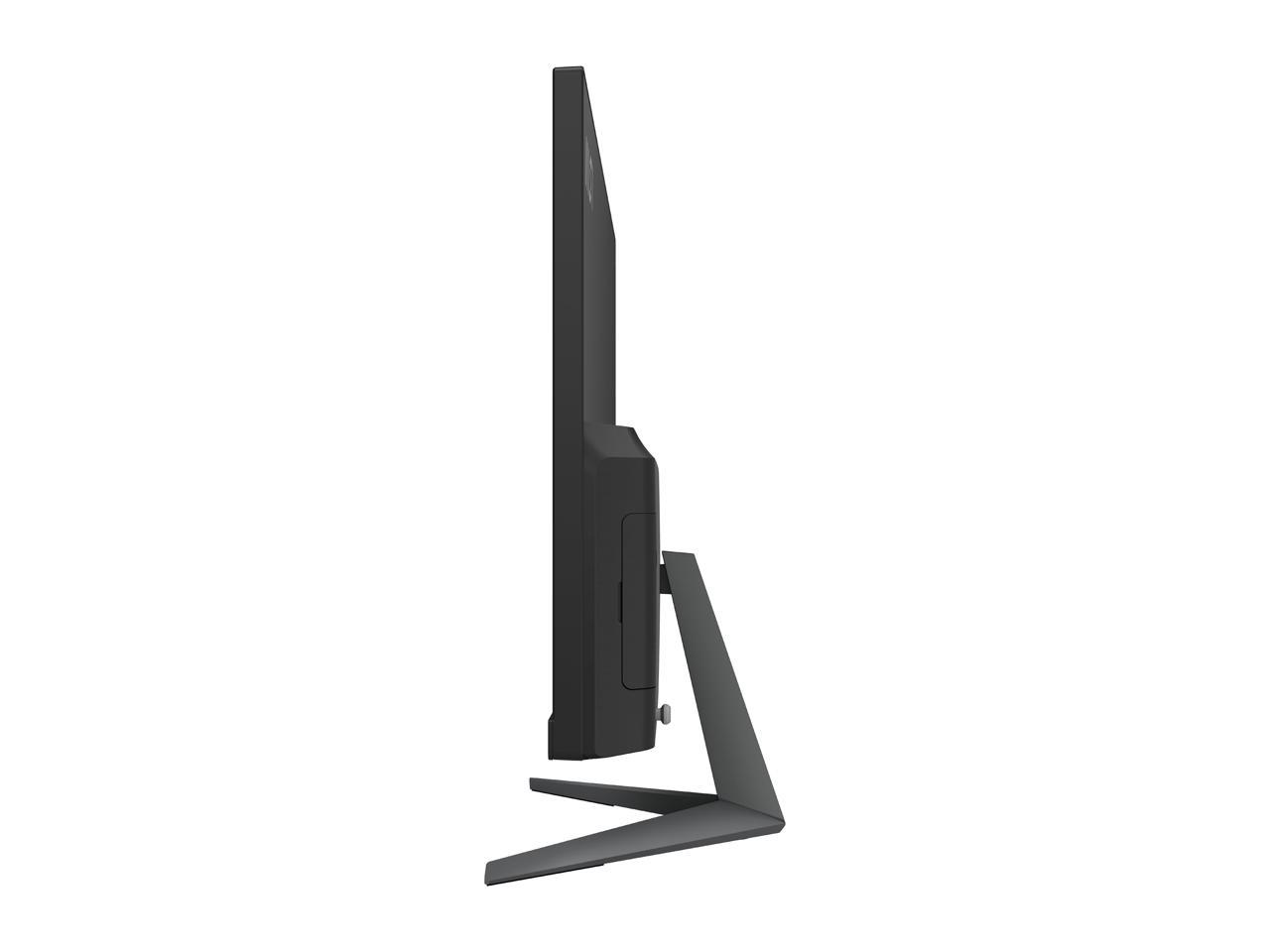

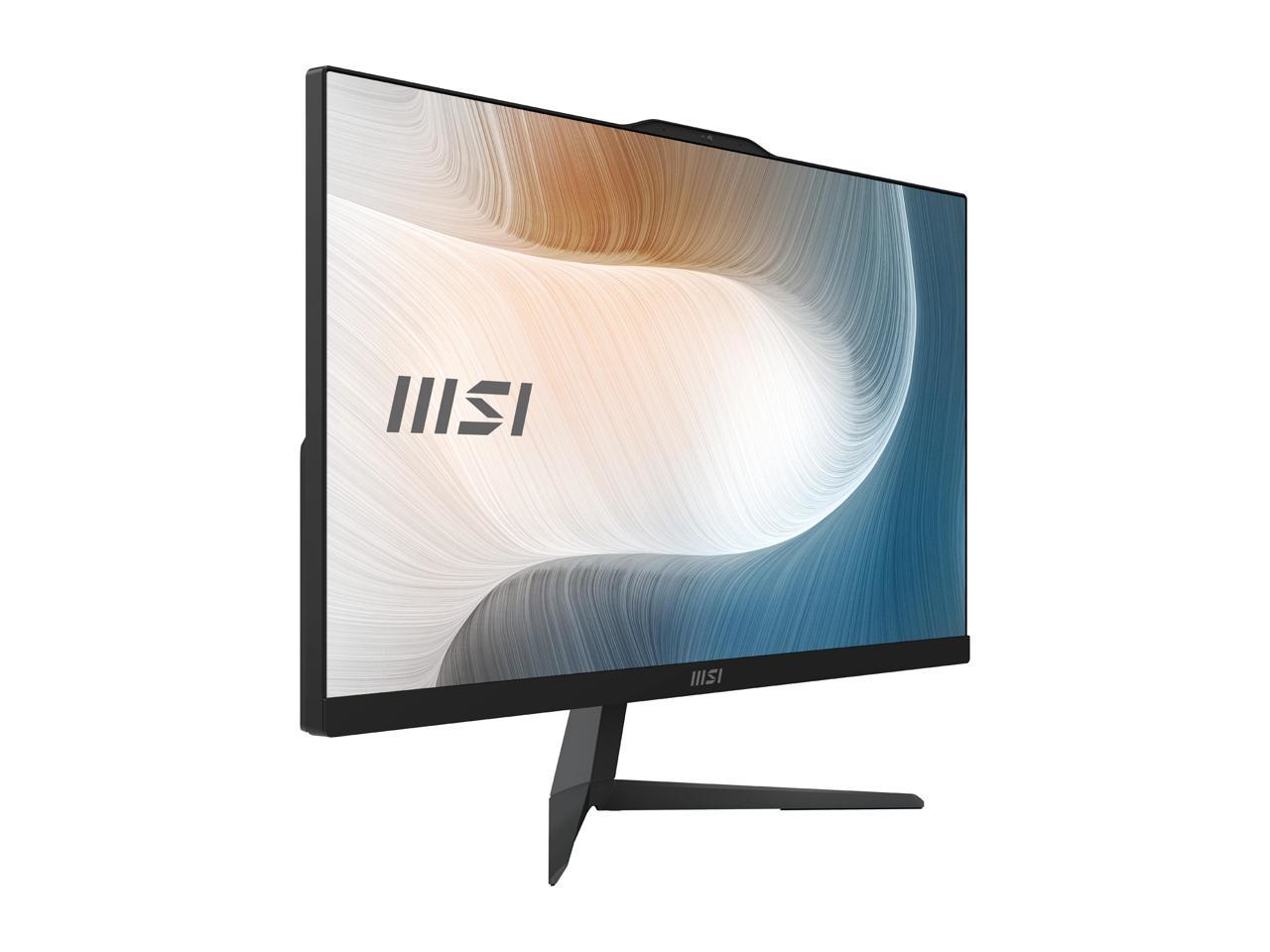

AM242 11M-893US
Model AM242 11M-893USPart no. MODERN AM242 11M-893US
68 specifications
- Display60.5 cm (23.8")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Pentium® Gold
- Memory4 GB
- Storage128 GB
- GraphicsNot available
Overview
- Display
- 60.5 cm (23.8")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Pentium® Gold
- Memory
- 4 GB
- Storage
- 128 GB
- Graphics
- Not available
- Brand
- MSI
- Category
- All-in-One PCs/Workstations
- Model
- AM242 11M-893US
- Part number
- MODERN AM242 11M-893US
- Also known as
- MSI AM242 11M-893US Intel® Pentium® Gold 7505 60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 4 GB DDR4-SDRAM 128 GB SSD Windows 11 Pro Black
Specifications
68 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Panel type | IPS |
| Anti-glare screen | Yes |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® Gold |
| Processor model | 7505 |
| Processor cores | 2 |
| Processor boost frequency | 3.5 GHz |
| Processor cache | 4 MB |
| Configurable TDP-up frequency | 2 GHz |
| Configurable TDP-up | 15 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory form factor | DIMM/SO-DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 128 GB |
| Storage media | SSD |
| Total SSDs capacity | 128 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| NVMe | Yes |
| SSD form factor | M.2 |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board graphics card model | Intel® UHD Graphics |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB4 Gen 3x2 ports quantity | 0 |
| HDMI ports quantity | 1 |
| Microphone in | Yes |
| Combo headphone/mic port | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Panel mounting interface | 75 x 75 mm |
| VESA mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Product type | All-in-One PC |
| Market positioning | Business |
| Motherboard chipset | Intel SoC |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Idle States | Yes |
| Intel Software Guard Extensions (Intel SGX) | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter power | 120 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 541.4 mm |
| Depth (with stand) | 175.1 mm |
| Height (with stand) | 406.9 mm |
| Weight (with stand) | 4.65 kg |
| Package weight | 7.35 kg |
