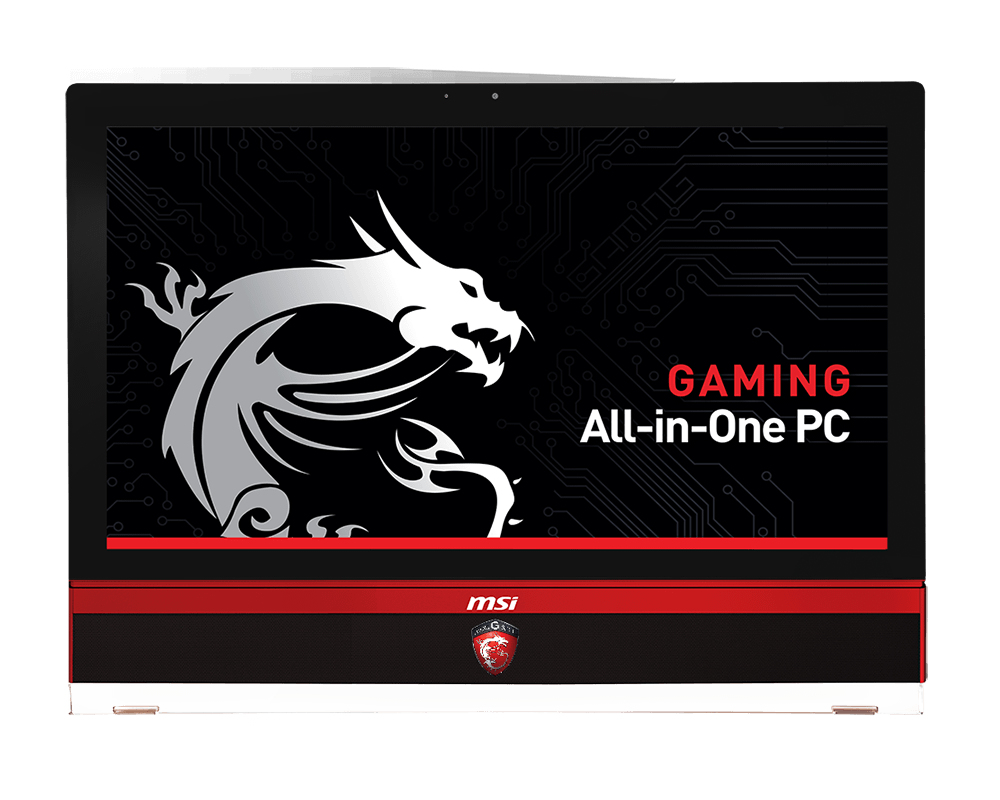

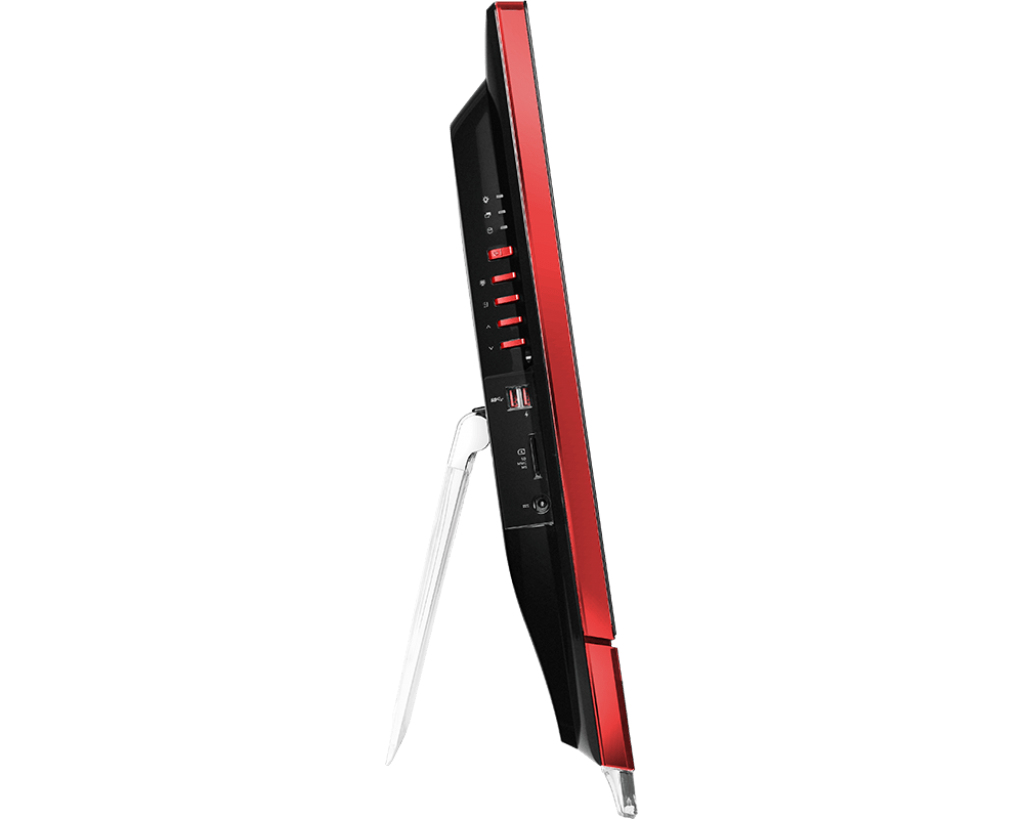

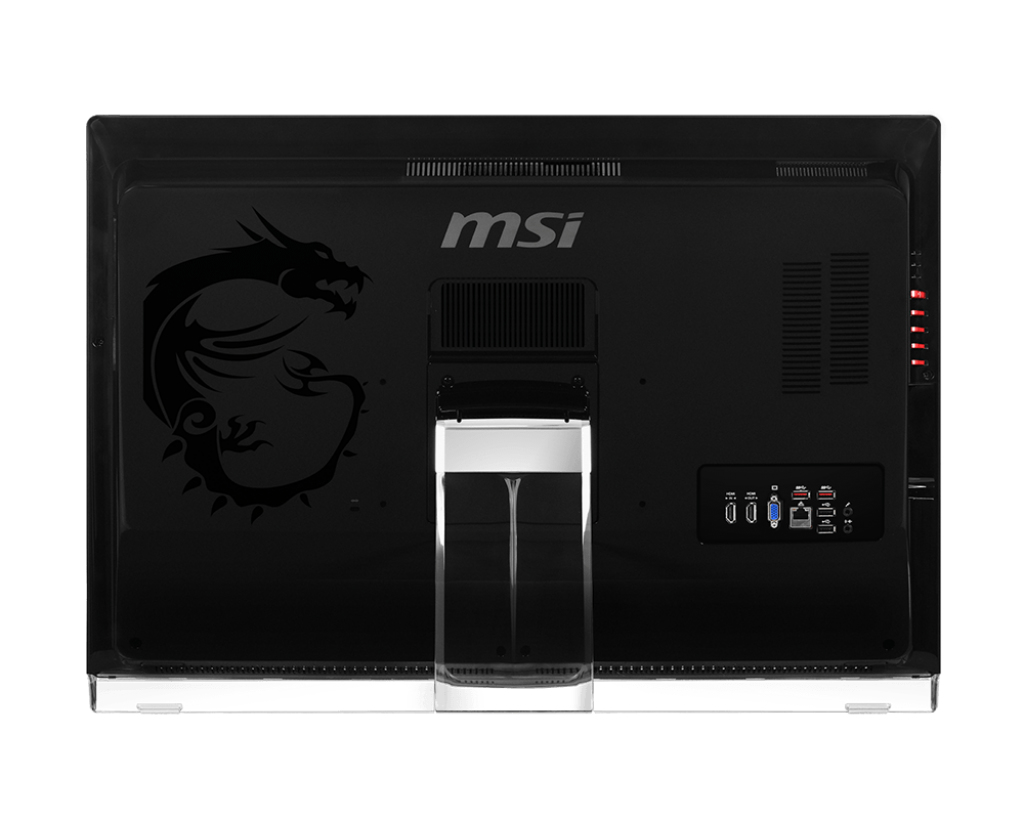

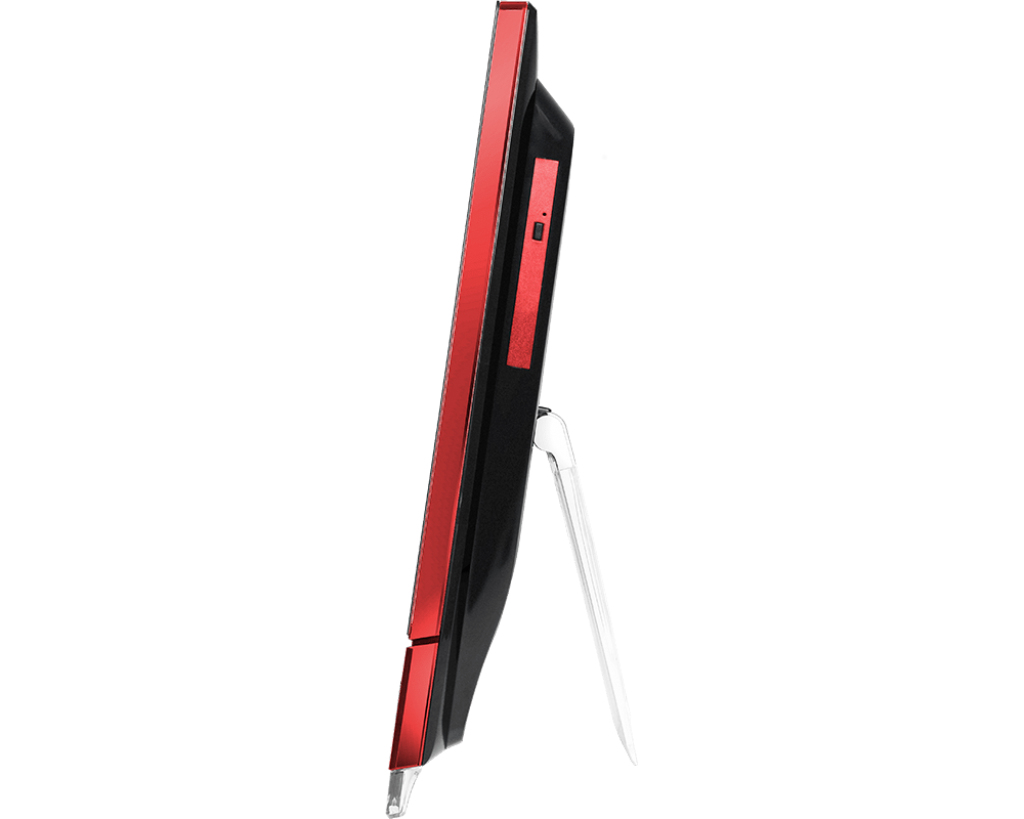

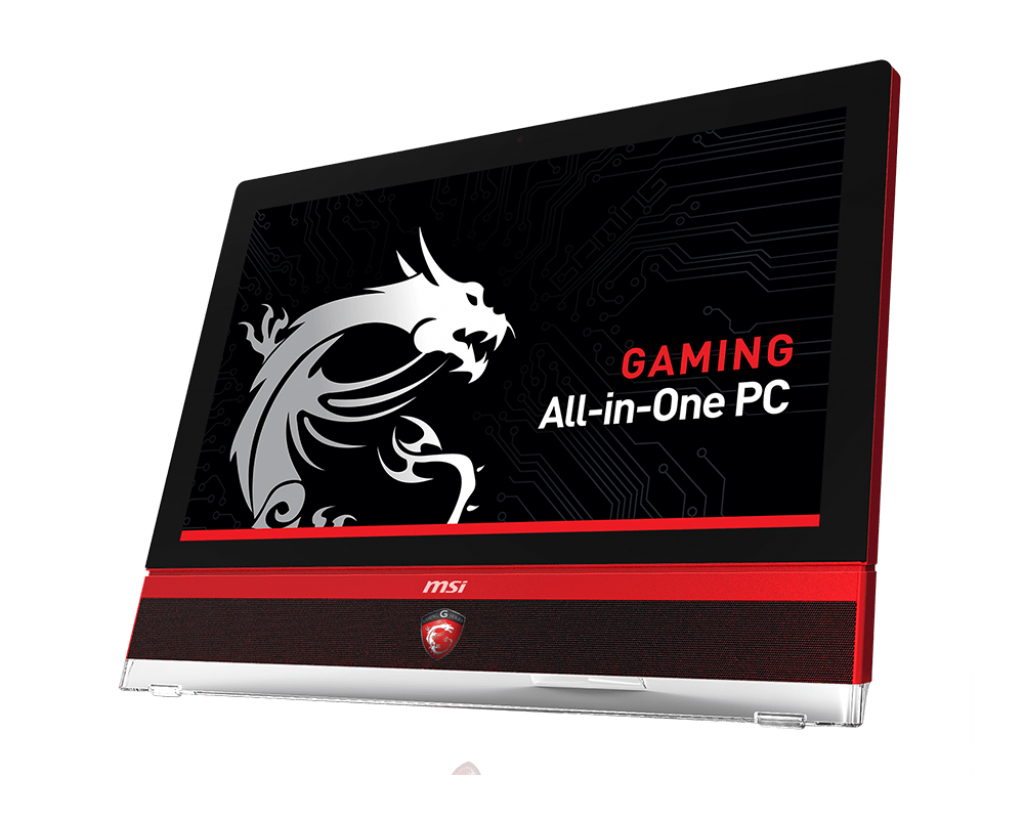

MSI Wind Top AG270 Intel® Core™ i7 i7-4860HQ

68.6 cm (27") 1920 x 1080 pixels Touchscreen All-in-One PC 16 GB DDR3L-SDRAM 1.25 TB HDD+SSD NVIDIA® GeForce® GTX 8

Model AG270Part no. AG270 2PC-006USEAN 8241420226584

132 specifications

Display68.6 cm (27")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage1.25 TB
GraphicsNVIDIA® GeForce® GTX 870M

See all specifications

Overview

Display: 68.6 cm (27")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 1.25 TB
Graphics: NVIDIA® GeForce® GTX 870M

Brand: MSI
Category: All-in-One PCs/Workstations
Model: AG270
Part number: AG270 2PC-006US
EAN / UPC: 8241420226584
Also known as: MSI Wind Top AG270 Intel® Core™ i7 i7-4860HQ 68.6 cm (27") 1920 x 1080 pixels Touchscreen All-in-One PC 16 GB DDR3L-SDRAM 1.25 TB HDD+SSD NVIDIA® GeForce® GTX 8

Specifications

132 specifications in 16 groups

Display

Specification	Value
Display diagonal	68.6 cm (27")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Full HD	Yes
LED backlight	Yes
Touch technology	Multi-touch
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	4th gen Intel® Core™ i7
Processor model	i7-4860HQ
Processor cores	4
Processor threads	8
Processor boost frequency	3.6 GHz
Processor frequency	2.4 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	BGA 1364
System bus rate	5 GT/s
Thermal Design Power (TDP)	47 W
Bus type	DMI2
FSB Parity	No
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Processor code	SR1BP
Processor codename	Crystal Well
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-4800 Mobile series
Stepping	C0
Tjunction	100 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3L-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR3L-SDRAM
Memory slots	2
Memory clock speed	1600 MHz
Memory layout (slots x size)	2 x 8 GB

Storage

Specification	Value
Total storage capacity	1.25 TB
Storage media	HDD+SSD
RAID support	Yes
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, SDXC

Graphics

Specification	Value
Discrete graphics card model	NVIDIA® GeForce® GTX 870M
Discrete graphics card memory	3 GB
Discrete graphics memory type	GDDR5
On-board graphics card	Yes
On-board graphics card family	Intel® Iris™ Pro Graphics
On-board graphics card model	Intel® Iris™ Pro Graphics 5200
Maximum on-board graphics card memory	2 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	200 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card DirectX version	11.2/12
On-board graphics card ID	0xD26
On-board graphics card OpenGL version	4.3

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	10 W
Built-in microphone	Yes

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	2 MP

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI ports quantity	2
VGA (D-Sub) ports quantity	1
Headphone outputs	1
Microphone in	Yes

Design

Specification	Value
Product colour	Black, Red
Wall mountable	Yes

Performance

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel® HM87

Software

Specification	Value
Operating system installed	Windows 8.1
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	76089
Processor package size	37.5 x 32 x 1.65 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes

Power

Specification	Value
AC adapter power	230 W

Weight & dimensions

Specification	Value
Width (with stand)	672.3 mm
Depth (with stand)	66 mm
Height (with stand)	482385 mm
Weight (with stand)	13.2 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
