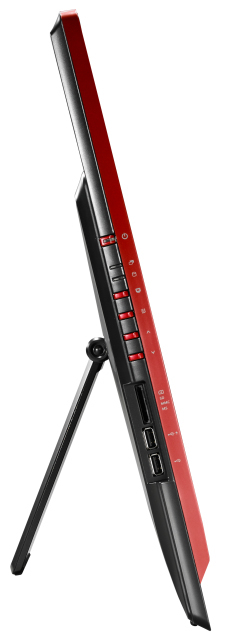

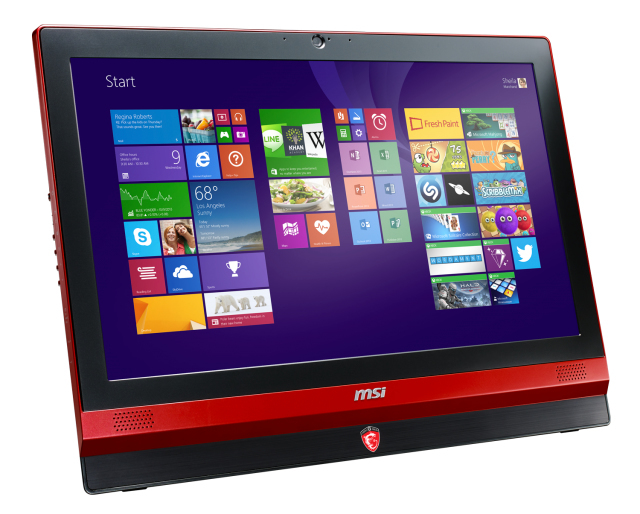

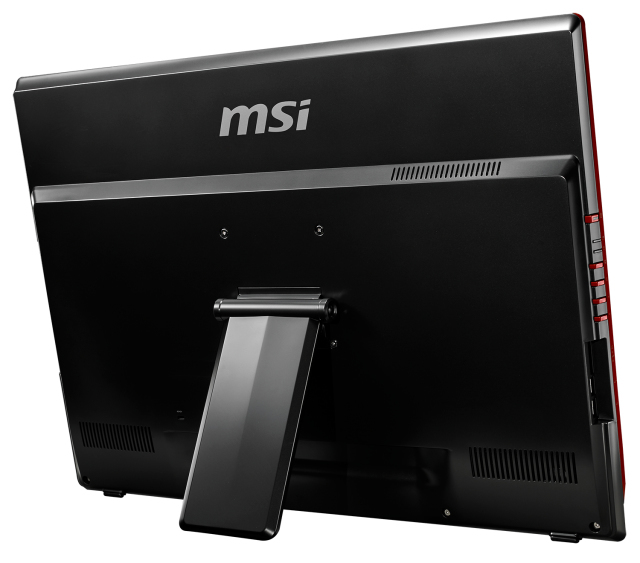

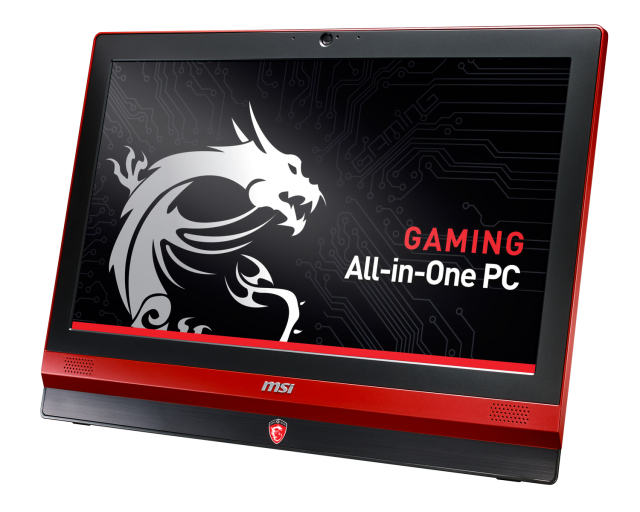

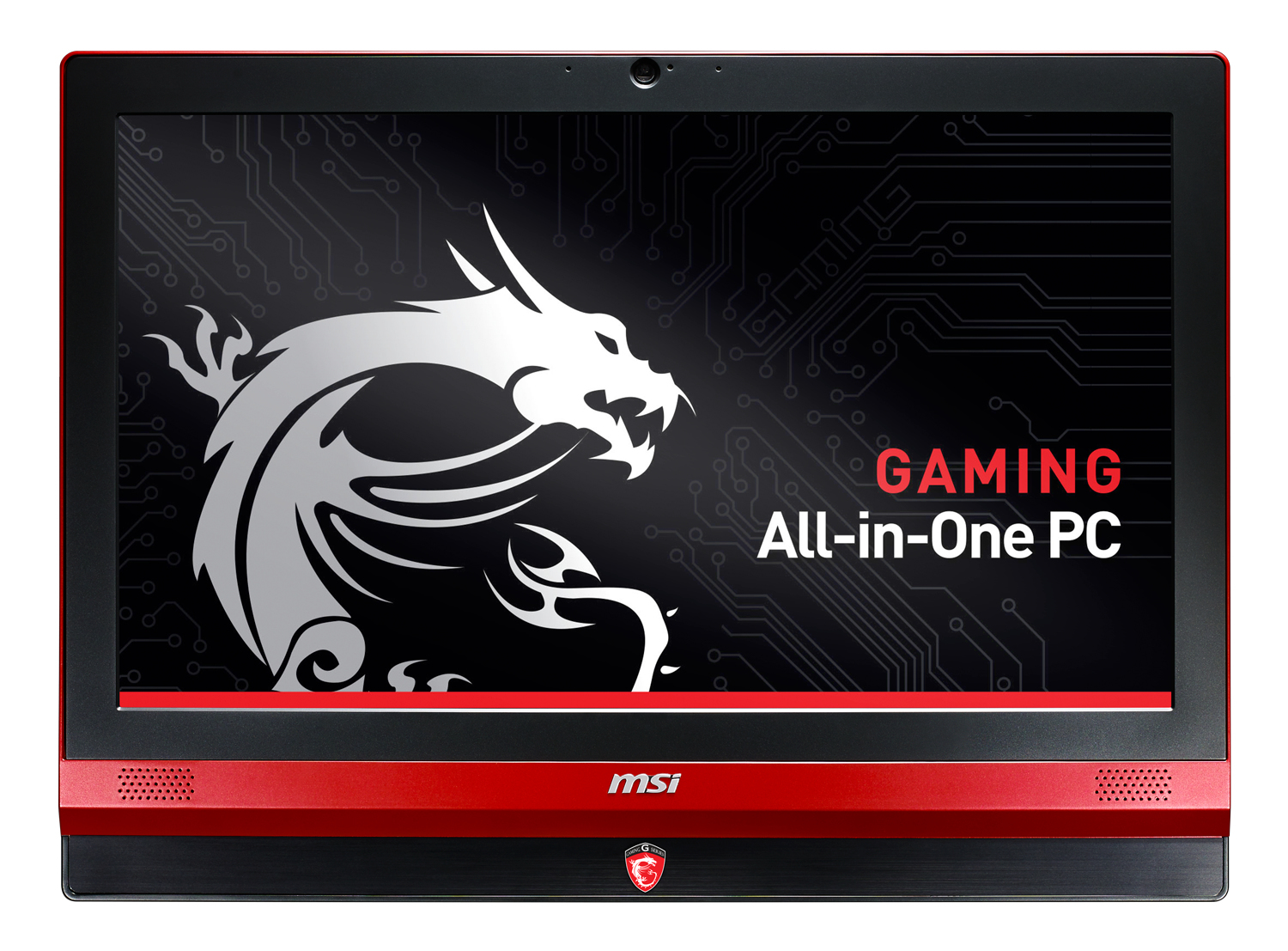

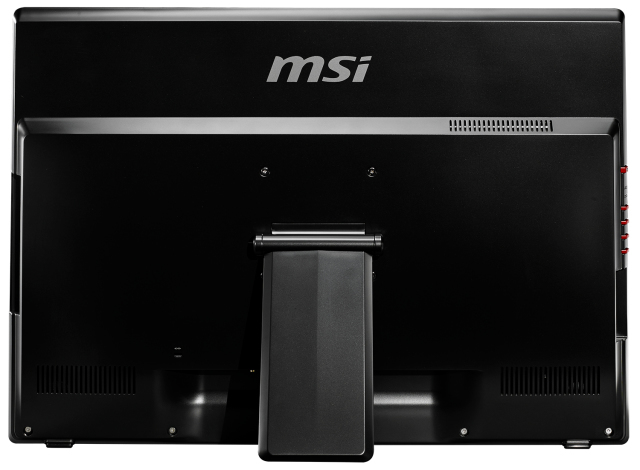

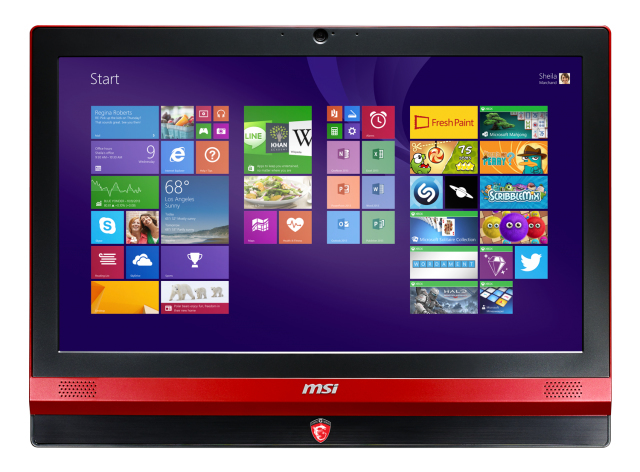

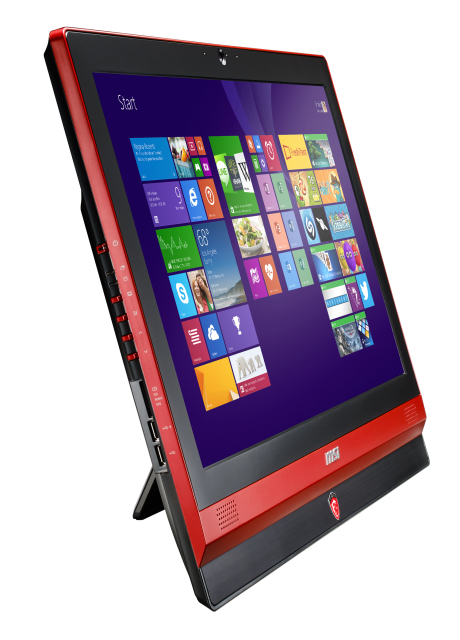

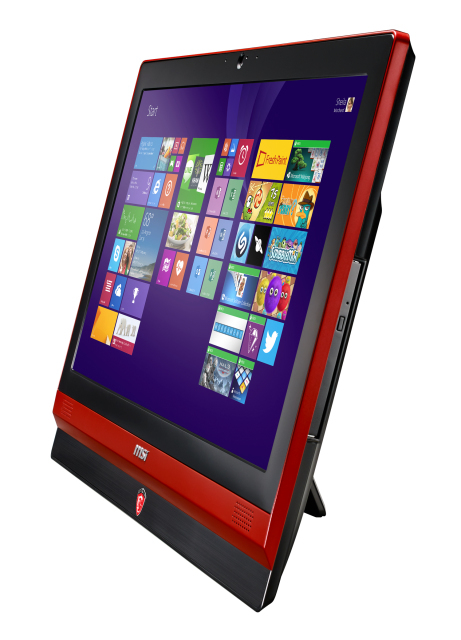

AG240 2PE-056EU
Model AG240 2PE-056EUEAN 4719072382308
151 specifications
- Display59.9 cm (23.6")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage1.25 TB
- GraphicsNVIDIA® GeForce® GTX 860M
Overview
- Display
- 59.9 cm (23.6")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 1.25 TB
- Graphics
- NVIDIA® GeForce® GTX 860M
- Brand
- MSI
- Category
- All-in-One PCs/Workstations
- Model
- AG240 2PE-056EU
- Part number
- AG240 2PE-056EU
- EAN / UPC
- 4719072382308
- Also known as
- MSI Gaming AG240 2PE-056EU All-in-One PC/workstation Intel® Core™ i7 i7-4720HQ 59.9 cm (23.6") 1920 x 1080 pixels 16 GB DDR3-SDRAM 1.25 TB HDD+SSD NVIDIA® GeFor
Specifications
151 specifications in 17 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 59.9 cm (23.6") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Full HD | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display brightness | 300 cd/m² |
| Display surface | Matt |
| Response time | 5 ms |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 4th gen Intel® Core™ i7 |
| Processor model | i7-4720HQ |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3.6 GHz |
| Processor frequency | 2.6 GHz |
| Processor cache | 6 MB |
| Processor cache type | L3 |
| Processor socket | BGA 1364 |
| System bus rate | 5 GT/s |
| Thermal Design Power (TDP) | 47 W |
| Bus type | DMI2 |
| FSB Parity | No |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 3.0 |
| Processor code | SR1Q8 |
| Processor codename | Haswell |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i7-4700 Mobile series |
| Stepping | C0 |
| Tjunction | 100 °C |
| Conflict-Free processor | Yes |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3L-SDRAM |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Memory channels supported by processor | Dual |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR3-SDRAM |
| Maximum internal memory | 16 GB |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 1600 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.25 TB |
| Storage media | HDD+SSD |
| HDD interface | SATA |
| Optical drive type | DVD Super Multi |
| Card reader integrated | Yes |
| Compatible memory cards | Memory Stick (MS), MMC, SD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | NVIDIA® GeForce® GTX 860M |
| Discrete graphics card memory | 2 GB |
| Discrete graphics memory type | GDDR5 |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 4600 |
| Maximum on-board graphics card memory | 1.74 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 400 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| On-board graphics card DirectX version | 11.2/12 |
| On-board graphics card ID | 0x416 |
| On-board graphics card OpenGL version | 4.3 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
| Built-in microphone | Yes |
| Audio system | Sound Blaster Cinema |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Total megapixels | 2 MP |
| Camera resolution | 1920 x 1080 pixels |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Thunderbolt ports quantity | 0 |
| HDMI ports quantity | 2 |
| VGA (D-Sub) ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| DC-in jack | Yes |
| Mini PCI Express slots | 2 |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Red |
| Cable lock slot | Yes |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Product type | All-in-One PC |
| Motherboard chipset | Intel® HM87 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 8.1 |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Processor ARK ID | 78934 |
| Processor package size | 37.5 x 32 x 1.6 mm |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter power | 150 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 583.3 mm |
| Depth (with stand) | 33 mm |
| Height (with stand) | 424.6 mm |
| Weight (with stand) | 9.42 kg |
| Package weight | 10.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Storage drive interface | Serial ATA |
