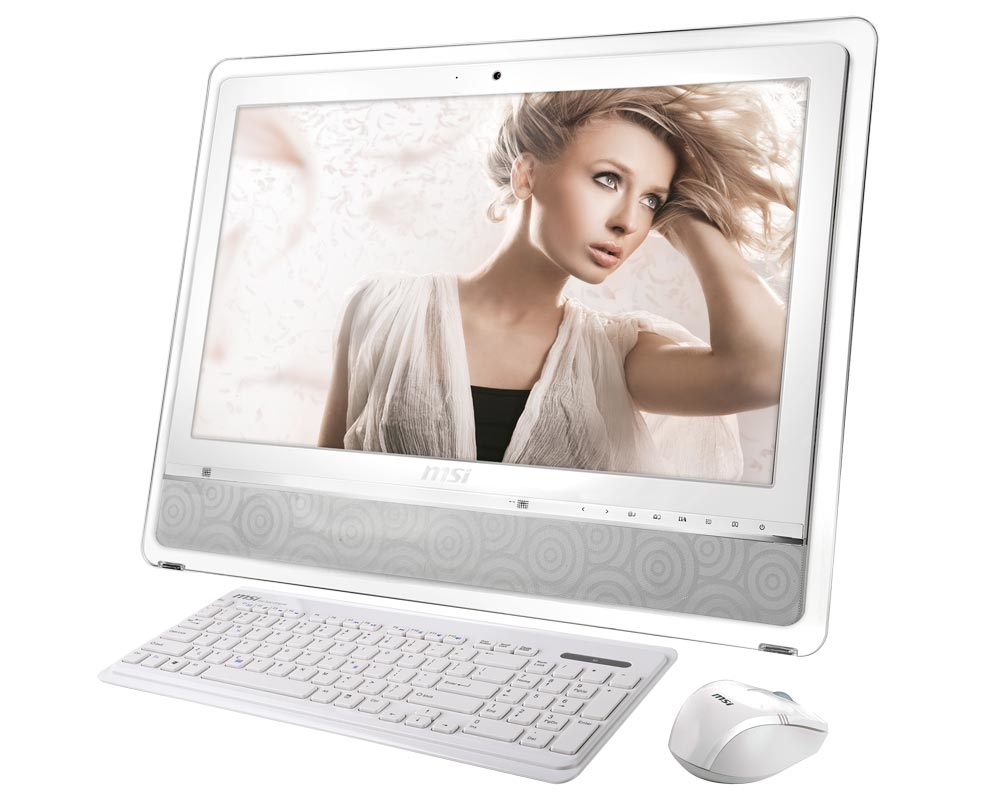

MSI Wind Top AE2420-231IT All-in-One PC/workstation Intel® Core™ i7 i7-870S

59.9 cm (23.6") 1920 x 1080 pixels Touchscreen 4 GB DDR3-SDRAM 1 TB HDD AMD Mobility

Model AE2420-231ITEAN 4719072302641

128 specifications

Display59.9 cm (23.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory4 GB
Storage1 TB
GraphicsAMD Mobility Radeon HD 5730

See all specifications

Overview

Display: 59.9 cm (23.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 4 GB
Storage: 1 TB
Graphics: AMD Mobility Radeon HD 5730

Brand: MSI
Category: All-in-One PCs/Workstations
Model: AE2420-231IT
Part number: AE2420-231IT
EAN / UPC: 4719072302641
Also known as: MSI Wind Top AE2420-231IT All-in-One PC/workstation Intel® Core™ i7 i7-870S 59.9 cm (23.6") 1920 x 1080 pixels Touchscreen 4 GB DDR3-SDRAM 1 TB HDD AMD Mobility

Specifications

128 specifications in 17 groups

Display

Specification	Value
Display diagonal	59.9 cm (23.6")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Full HD	Yes
Touch technology	Multi-touch
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	Intel® Core™ i7
Processor model	i7-870S
Processor cores	4
Processor threads	8
Processor boost frequency	3.6 GHz
Processor frequency	2.66 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Processor socket	LGA 1156 (Socket H)
System bus rate	2.5 GT/s
Thermal Design Power (TDP)	82 W
Bus type	DMI
CPU multiplier (bus/core ratio)	20
FSB Parity	No
Maximum number of PCI Express lanes	16
Number of Processing Die Transistors	774 M
PCI Express configurations	1x16, 2x8
PCI Express slots version	2.0
Processing Die size	296 mm²
Processor code	SLBQ7
Processor codename	Lynnfield
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-800 Desktop Series
Stepping	B1
Conflict-Free processor	No
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3 1066/1333
Memory bandwidth supported by processor (max)	21 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
HDD interface	SATA II
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MicroSD (TransFlash), MiniSD, MMC, SD, xD

Graphics

Specification	Value
Discrete graphics card model	AMD Mobility Radeon HD 5730
Discrete graphics card memory	1 GB
Discrete graphics memory type	GDDR5
On-board graphics card model	Not available

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	10 W
Audio system	THX TruStudio Pro

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	1.3 MP

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Thunderbolt ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
Headphone outputs	1
Microphone in	Yes
Mini PCI Express slots	2
eSATA ports quantity	1

Design

Specification	Value
Product colour	White

Performance

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel® H55 Express

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Smart Connect Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Rapid Start Technology	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	1.0
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Processor ARK ID	48498
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No

Power

Specification	Value
AC adapter power	180 W

Weight & dimensions

Specification	Value
Width (with stand)	617.3 mm
Depth (with stand)	461.8 mm
Height (with stand)	72 mm
Weight (with stand)	14 kg
Package weight	17 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
AC adapter included	Yes

Other features

Specification	Value
Storage drive interface	Serial ATA II
