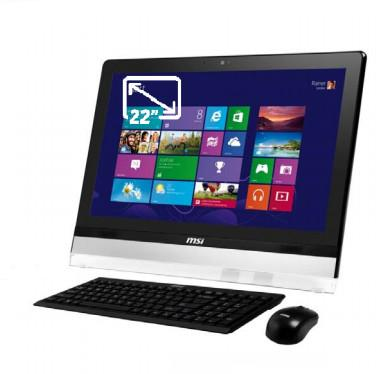

MSI Wind Top AE221‐B34134G1T0S81MANX Intel® Core™ i3 i3-4130

54.6 cm (21.5") 1920 x 1080 pixels All-in-One PC 4 GB DDR3-SDRAM 1 TB HDD Windows 8.1 Black, Silver

Model AE221‐B34134G1T0S81MANXPart no. 00AC9511-SKU1EAN 4719072323134

163 specifications

Display54.6 cm (21.5")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i3
Memory4 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 54.6 cm (21.5")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i3
Memory: 4 GB
Storage: 1 TB
Graphics: Not available

Brand: MSI
Category: All-in-One PCs/Workstations
Model: AE221‐B34134G1T0S81MANX
Part number: 00AC9511-SKU1
EAN / UPC: 4719072323134
Also known as: MSI Wind Top AE221‐B34134G1T0S81MANX Intel® Core™ i3 i3-4130 54.6 cm (21.5") 1920 x 1080 pixels All-in-One PC 4 GB DDR3-SDRAM 1 TB HDD Windows 8.1 Black, Silver

Specifications

163 specifications in 20 groups

Display

Specification	Value
Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Full HD	Yes
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	300 cd/m²
Response time	3 ms

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	4th gen Intel® Core™ i3
Processor model	i3-4130
Processor cores	2
Processor threads	4
Processor frequency	3.4 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	LGA 1150 (Socket H3)
System bus rate	5 GT/s
64-bit computing	Yes
Thermal Design Power (TDP)	65, 54
Bus type	DMI2
FSB Parity	No
Maximum number of PCI Express lanes	16
Number of QPI links	0
PCI Express configurations	1x8, 1x16, 2x4, 2x8
PCI Express slots version	3.0
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i3-4100 Desktop series
Stepping	C0
Tcase	72 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-1333/1600, DDR3L-1333/1600 @ 1.5V
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	1333 MHz
Memory layout (slots x size)	1 x 4 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	1 TB
HDD speed	7200 RPM
HDD interface	SATA II
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, SD

Graphics

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4400
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	11.1
On-board graphics card ID	0x41E

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	6 W
Built-in microphone	Yes
Audio system	Sound Blaster Cinema

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	2 MP

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Thunderbolt ports quantity	0
HDMI ports quantity	2
VGA (D-Sub) ports quantity	0
DVI port	No
Headphone outputs	1
Microphone in	Yes
Combo headphone/mic port	No
DC-in jack	Yes
ExpressCard slot	No
Mini PCI Express slots	2
S/PDIF out port	No
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Design

Specification	Value
Product colour	Black, Silver
Cable lock slot	Yes
Cable lock slot type	Kensington
Wall mountable	Yes

Performance

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel® H81

Software

Specification	Value
Operating system installed	Windows 8.1
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Small Business Advantage (SBA) version	1.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	77480
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013C
