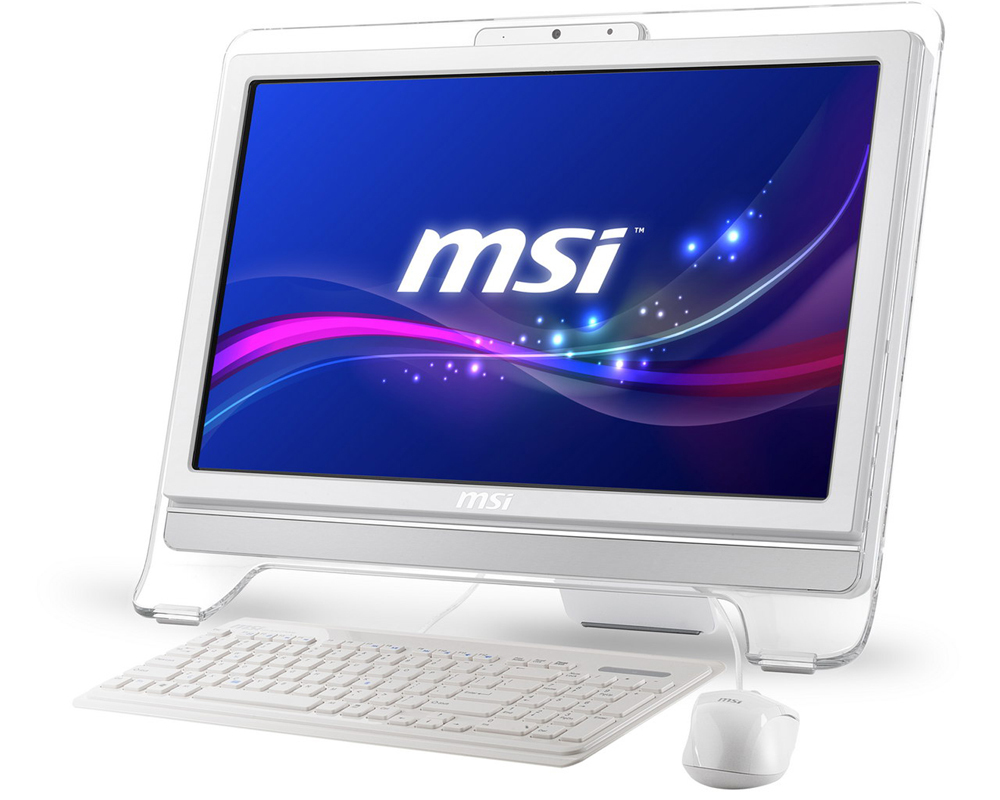

MSI Wind Top AE2060-E3425W7H Intel® Celeron® E3400

50.8 cm (20") 1600 x 900 pixels Touchscreen All-in-One PC 2 GB DDR3-SDRAM 500 GB HDD Windows 7 Home Premium W

Model AE2060-E3425W7HPart no. 00AA5112-SKU1EAN 4719072213596

133 specifications

Display50.8 cm (20")
Resolution1600 x 900 pixels
ProcessorIntel® Celeron®
Memory2 GB
Storage500 GB
GraphicsNot available

See all specifications

Overview

Display: 50.8 cm (20")
Resolution: 1600 x 900 pixels
Processor: Intel® Celeron®
Memory: 2 GB
Storage: 500 GB
Graphics: Not available

Brand: MSI
Category: All-in-One PCs/Workstations
Model: AE2060-E3425W7H
Part number: 00AA5112-SKU1
EAN / UPC: 4719072213596
Also known as: MSI Wind Top AE2060-E3425W7H Intel® Celeron® E3400 50.8 cm (20") 1600 x 900 pixels Touchscreen All-in-One PC 2 GB DDR3-SDRAM 500 GB HDD Windows 7 Home Premium W

Specifications

133 specifications in 17 groups

Display

Specification	Value
Display diagonal	50.8 cm (20")
Display resolution	1600 x 900 pixels
Touchscreen	Yes
HD type	HD+
Full HD	No
LED backlight	Yes
Touch technology	Multi-touch
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	E3400
Processor cores	2
Processor threads	2
Processor frequency	2.6 GHz
Processor cache	1 MB
Processor cache type	Smart Cache
Processor socket	LGA 775 (Socket T)
Thermal Design Power (TDP)	65 W
Bus type	FSB
CPU multiplier (bus/core ratio)	13
FSB Parity	No
PCI Express slots version	2.0
Processor codename	Wolfdale
Processor front side bus	800 MHz
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Celeron Processor E3000 Series for Desktop
Stepping	R0
Tcase	74.1 °C
Conflict-Free processor	No
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
Memory slots	2
Memory clock speed	1066 MHz

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	500 GB
HDD size	3.5"
HDD interface	SATA II
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), miniSD, MMC, SD, xD

Graphics

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® GMA
On-board graphics card model	Intel® GMA X4500

Audio

Specification	Value
Built-in microphone	Yes

Camera

Specification	Value
Built-in camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Thunderbolt ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
DVI port	No
Headphone outputs	1
Microphone in	Yes
Combo headphone/mic port	No
DC-in jack	Yes
Firewire (IEEE 1394) ports	0
ExpressCard slot	No
Mini PCI Express slots	2
PS/2 ports quantity	0
Serial ports quantity	0
S/PDIF out port	No

Design

Specification	Value
Product colour	White

Performance

Specification	Value
Product type	All-in-One PC

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit

Processor special features

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	42772
Thermal Monitoring Technologies	Yes

Power

Specification	Value
AC adapter power	65 W

Weight & dimensions

Specification	Value
Width (with stand)	513 mm
Depth (with stand)	392 mm
Height (with stand)	87 mm
Weight (with stand)	7.7 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
AC adapter included	Yes
Cables included	AC
Drivers included	Yes

Other features

Specification	Value
3D	No
Graphics card family	Intel
Cabling technology	10/100/1000Base-T(X)
Chassis type	All-in-One
Display included	Yes
Line-in	Yes
Line-out	Yes
Megapixel (approx.)	0.3 MP
Networking features	Gigabit Ethernet
Number of processors installed	1
Parallel ports quantity	0
Power supply	90 W
Speakers	2
Wireless technology	802.11 b/g/n
