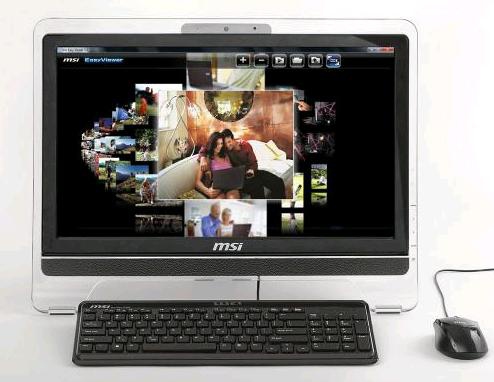

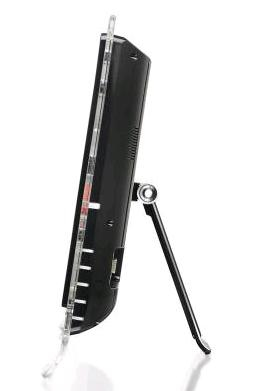

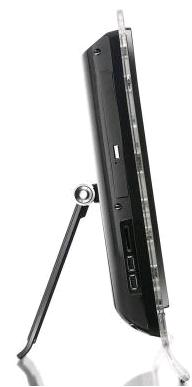

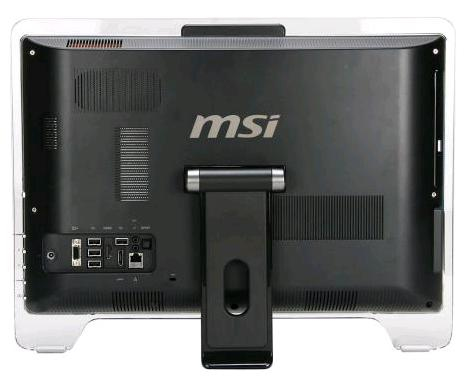

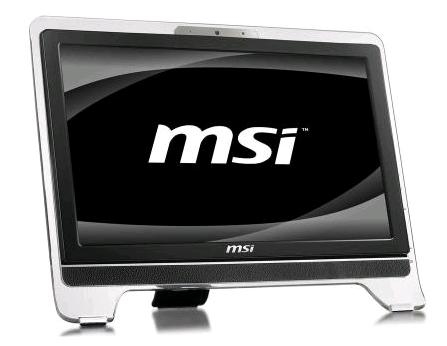

AE2040 Intel® Core™ i3 i3-350M
50.8 cm (20") 1600 x 900 pixels Touchscreen 2 GB DDR3-SDRAM 320 GB Intel® HD Graphics Windows 7 Home Premium Black
Model AE2040Part no. AE2040-002IT_K
125 specifications
- Display50.8 cm (20")
- Resolution1600 x 900 pixels
- ProcessorIntel® Core™ i3
- Memory2 GB
- Storage320 GB
- GraphicsIntel® HD Graphics
Overview
- Display
- 50.8 cm (20")
- Resolution
- 1600 x 900 pixels
- Processor
- Intel® Core™ i3
- Memory
- 2 GB
- Storage
- 320 GB
- Graphics
- Intel® HD Graphics
- Brand
- MSI
- Category
- All-in-One PCs/Workstations
- Model
- AE2040
- Part number
- AE2040-002IT_K
- Also known as
- MSI AE2040 Intel® Core™ i3 i3-350M 50.8 cm (20") 1600 x 900 pixels Touchscreen 2 GB DDR3-SDRAM 320 GB Intel® HD Graphics Windows 7 Home Premium Black
Specifications
125 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 50.8 cm (20") |
| Display resolution | 1600 x 900 pixels |
| Touchscreen | Yes |
| HD type | HD+ |
| Touch technology | Multi-touch |
| Native aspect ratio | 16:9 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 3rd gen Intel® Core™ i3 |
| Processor model | i3-350M |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 2.26 GHz |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1288 |
| System bus rate | 2.5 GT/s |
| Thermal Design Power (TDP) | 35 W |
| Bus type | DMI |
| CPU multiplier (bus/core ratio) | 17 |
| FSB Parity | No |
| Maximum number of PCI Express lanes | 16 |
| Number of Processing Die Transistors | 382 M |
| PCI Express configurations | 1x16 |
| PCI Express slots version | 2.0 |
| Processing Die size | 81 mm² |
| Processor code | SLBPL |
| Processor codename | Arrandale |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i3-300 Mobile Series |
| Stepping | C2 |
| Tjunction | 105 °C |
| Conflict-Free processor | No |
| Maximum internal memory supported by processor | 8 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory bandwidth supported by processor (max) | 17.1 GB/s |
| Memory channels supported by processor | Dual |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR3-SDRAM |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 320 GB |
| HDD size | 2.5" |
| HDD interface | SATA II |
| Optical drive type | DVD Super Multi |
| Card reader integrated | Yes |
| Compatible memory cards | Memory Stick (MS), MMC, MS PRO, SD, SDHC, xD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | Intel® HD Graphics |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics |
| Number of displays supported (on-board graphics) | 2 |
| On-board graphics card base frequency | 500 MHz |
| On-board graphics card dynamic frequency (max) | 667 MHz |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Firewire (IEEE 1394) ports | 0 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 0 |
| eSATA ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Home Premium |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 45 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 36 bit |
| Processor ARK ID | 43529 |
| Processor package size | rPGA 37.5x 37.5, BGA 34x28 |
| Supported instruction sets | SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 509.7 mm |
| Depth (with stand) | 392.6 mm |
| Height (with stand) | 54.7 mm |
| Weight (with stand) | 7.31 kg |
| Package weight | 13.8 kg |
Other features
| Specification | Value |
|---|---|
| Graphics card family | Intel |
| Cabling technology | 10/100/1000Base-T(X) |
| Chassis type | All-in-One |
| Display included | Yes |
| Megapixel (approx.) | 1.3 MP |
| Networking features | Gigabit Ethernet, WLAN |
| Number of processors installed | 1 |
| Parallel ports quantity | 0 |
| Power supply | 90 W |
