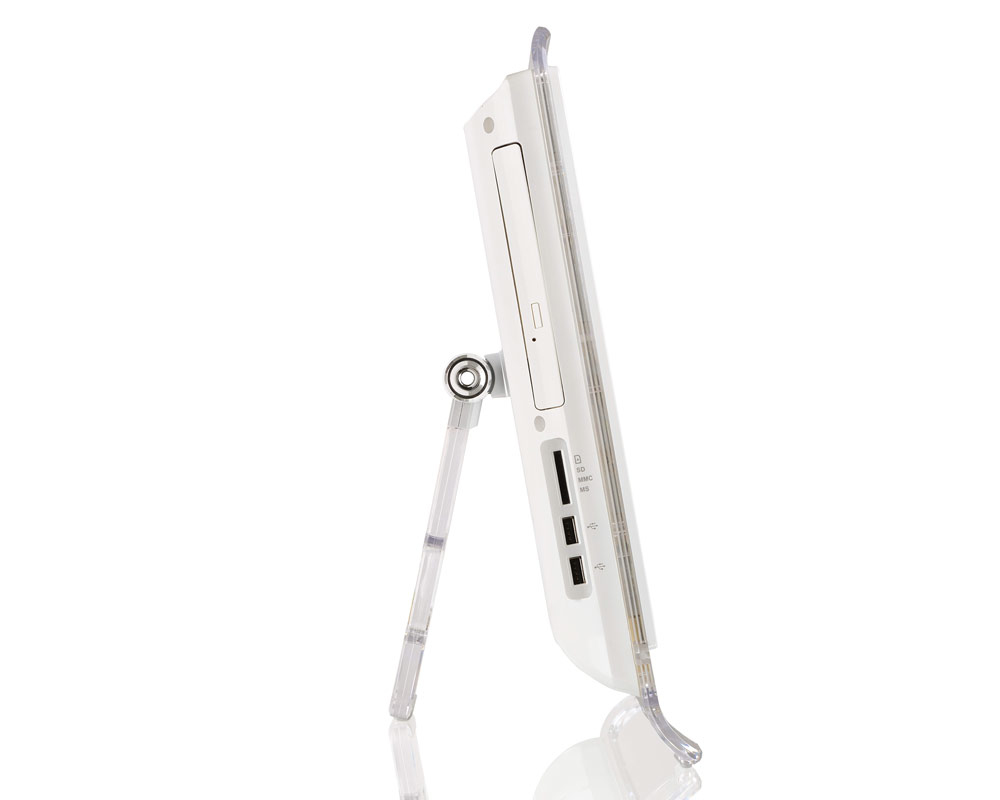

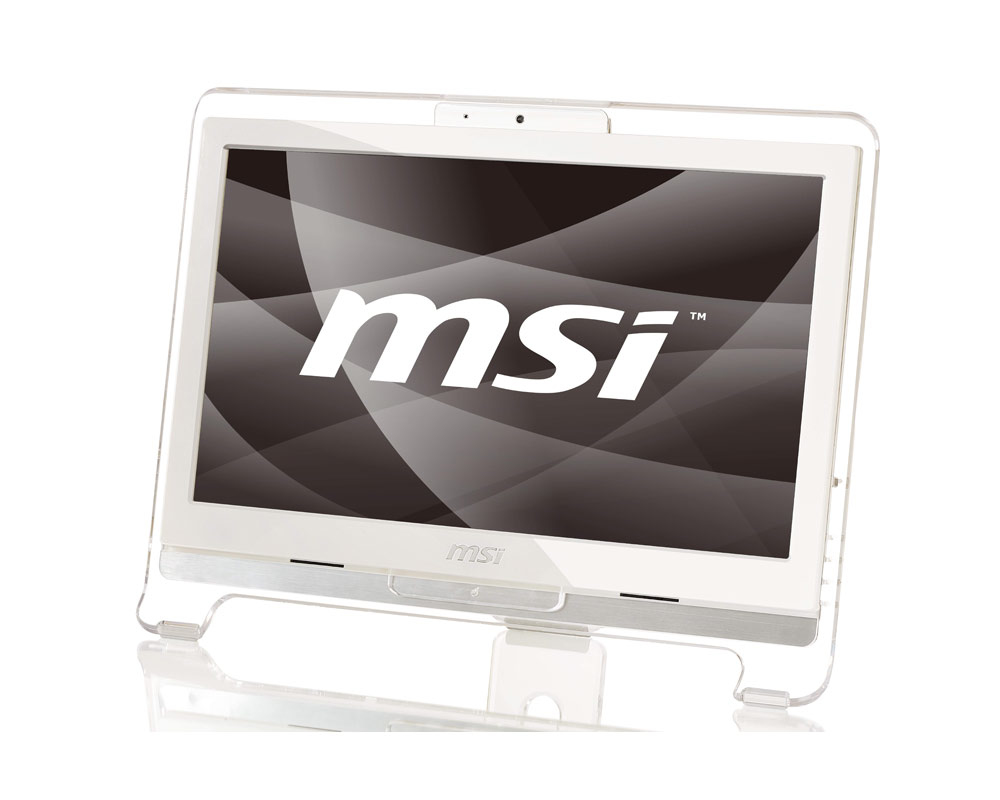

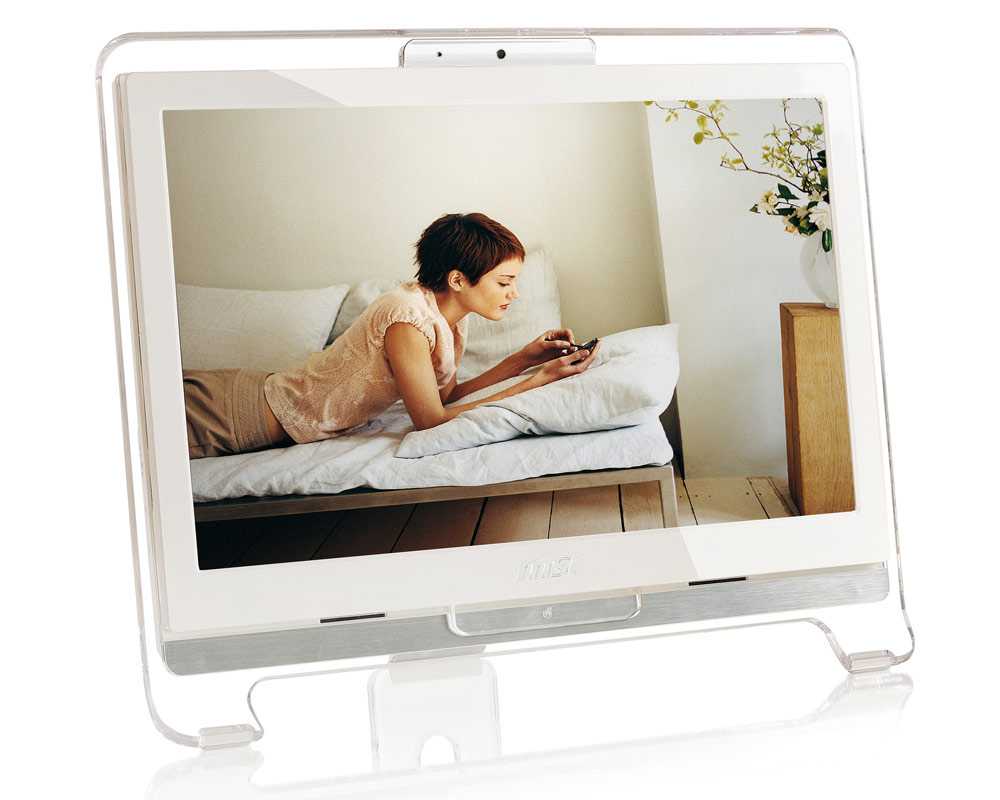

AE1920 Intel Atom® D525
47 cm (18.5") 1366 x 768 pixels Touchscreen 2 GB DDR3-SDRAM 320 GB Intel® GMA 3150 Windows 7 Home Premium White
Model AE1920Part no. AE1920-043IT_W
111 specifications
- Display47 cm (18.5")
- Resolution1366 x 768 pixels
- ProcessorIntel Atom®
- Memory2 GB
- Storage320 GB
- GraphicsIntel® GMA 3150
Overview
- Display
- 47 cm (18.5")
- Resolution
- 1366 x 768 pixels
- Processor
- Intel Atom®
- Memory
- 2 GB
- Storage
- 320 GB
- Graphics
- Intel® GMA 3150
- Brand
- MSI
- Category
- All-in-One PCs/Workstations
- Model
- AE1920
- Part numbers
- AE1920-043IT_W, AE1920EU-BD5252G32S7PS, AE1920-EU-BD5252G32S, AE1920-208SP
- Also known as
- MSI AE1920 Intel Atom® D525 47 cm (18.5") 1366 x 768 pixels Touchscreen 2 GB DDR3-SDRAM 320 GB Intel® GMA 3150 Windows 7 Home Premium White
Specifications
111 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 47 cm (18.5") |
| Display resolution | 1366 x 768 pixels |
| Touchscreen | Yes |
| HD type | Not supported |
| Touch technology | Single-touch |
| Native aspect ratio | 16:9 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | D525 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 1.8 GHz |
| Processor cache | 1 MB |
| Processor cache type | L2 |
| Processor socket | BGA 559 |
| Thermal Design Power (TDP) | 13 W |
| Bus type | DMI |
| FSB Parity | No |
| Number of Processing Die Transistors | 176 M |
| Processing Die size | 87 mm² |
| Processor code | SLBXC |
| Processor codename | Pineview |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Atom D500 Series |
| Stepping | B0 |
| Tjunction | 100 °C |
| Conflict-Free processor | No |
| Maximum internal memory supported by processor | 4 GB |
| Memory types supported by processor | DDR3 800 (SODIMM only); DDR2 667/800 |
| Memory bandwidth supported by processor (max) | 6.4 GB/s |
| Memory channels supported by processor | Single |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR3-SDRAM |
| Maximum internal memory | 4 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 320 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 320 GB |
| HDD size | 2.5" |
| HDD interface | SATA II |
| Optical drive type | DVD Super Multi |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | Intel® GMA 3150 |
| On-board graphics card | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI port | No |
| Headphone outputs | 2 |
| Microphone in | Yes |
| Firewire (IEEE 1394) ports | 0 |
| Serial ports quantity | 0 |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Home Premium |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | No |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 32 bit |
| Processor ARK ID | 49490 |
| Processor package size | 22 x 22 mm |
| Supported instruction sets | SSE2, SSE3, SSSE3 |
| Thermal Monitoring Technologies | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 476 mm |
| Depth (with stand) | 365 mm |
| Height (with stand) | 49 mm |
| Weight (with stand) | 7.1 kg |
| Package weight | 8.2 kg |
Other features
| Specification | Value |
|---|---|
| Graphics card family | Intel |
| Cabling technology | 10/100/1000Base-T(X) |
| Chassis type | All-in-One |
| Display | LCD |
| Display included | Yes |
| Megapixel (approx.) | 1.3 MP |
| Networking features | Gigabit Ethernet |
| Number of processors installed | 1 |
| Parallel ports quantity | 0 |
| Power supply | 65 W |
| Speakers | 2 |
